4 Steps to Dial In eTap AXS

Guidelines For Outstanding Performance
Getting the most out of your eTap AXS groupset is simple. Just follow these four tips that cover the most critical items required for a dialed setup.

1. LINE IT UP

Front Derailleur

Use the lines on the front derailleur cage to set your height and alignment relative to the big ring.  Watch How To Video

Related Image
Related Image
Rear Derailleur

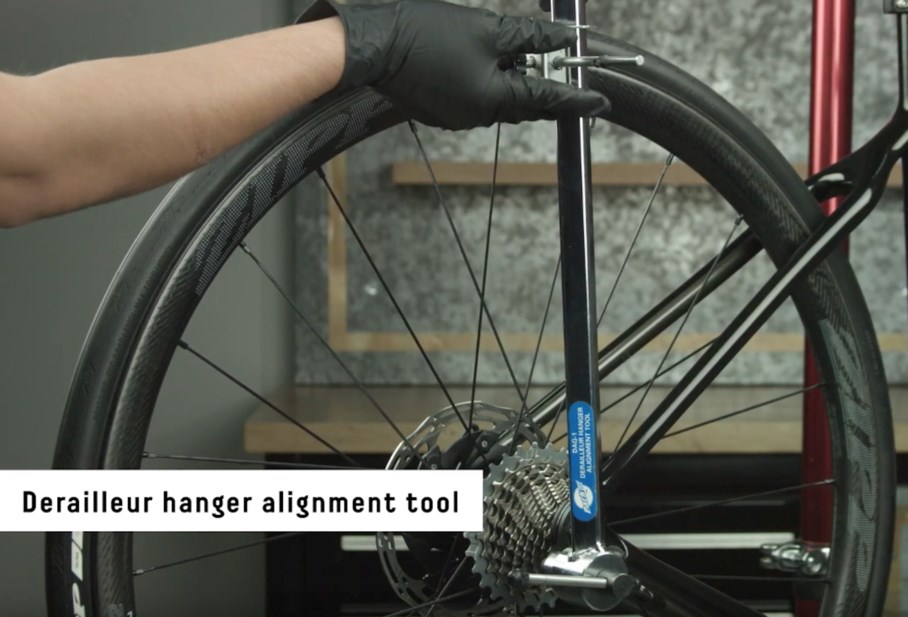

A) Check your rear derailleur hanger alignment.  Watch How To Video

Related Image

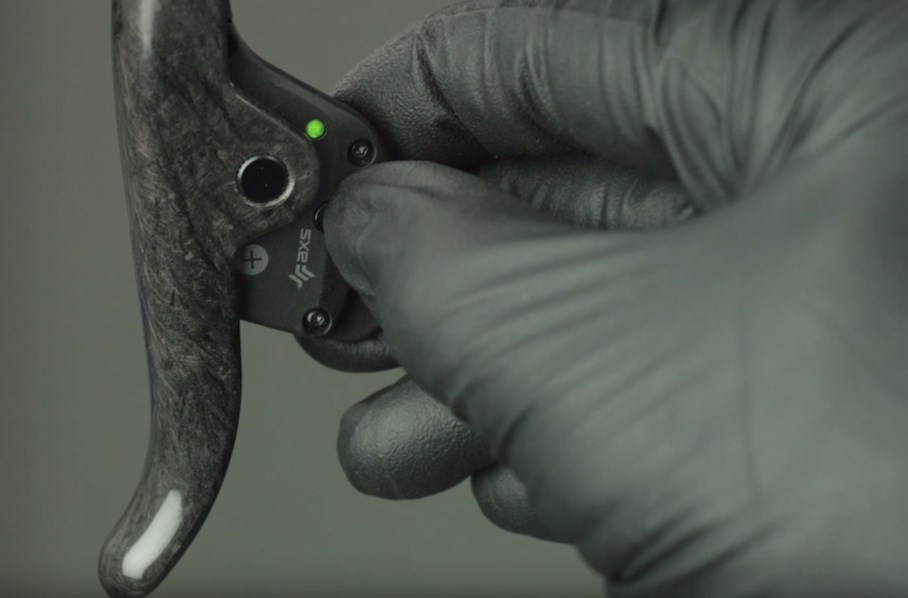

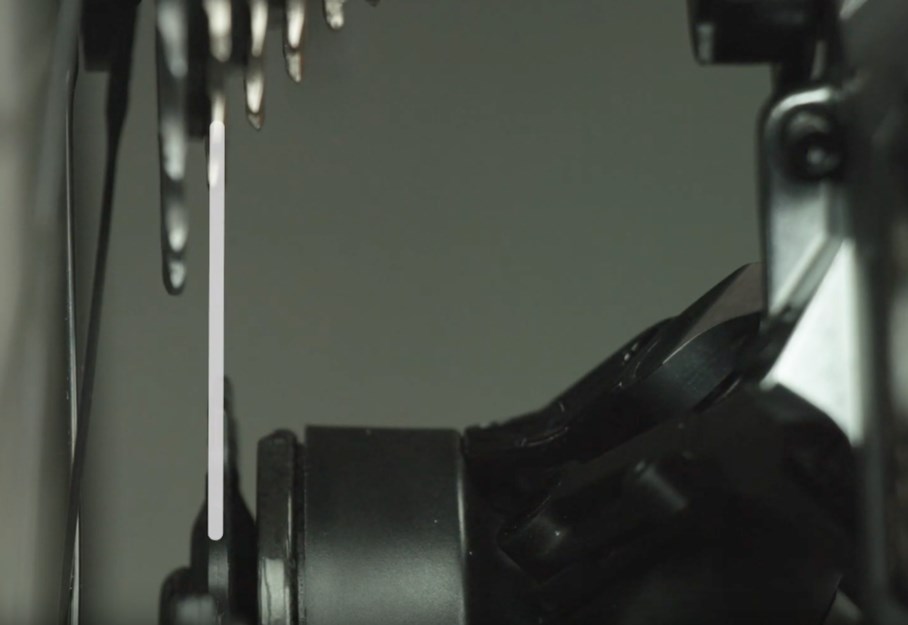

B) Shift the rear derailleur in the second largest cog and use MicroAdjust to line up the upper derailleur pulley with that cog.  Watch How To Video

Related Image

2. LINK UP

2x Drivetrains

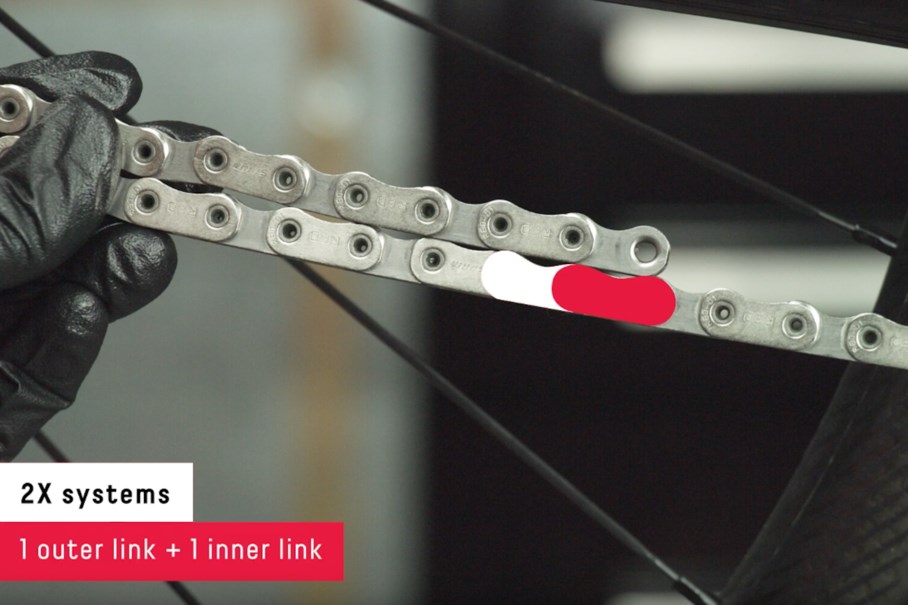

Big chainring and big cog + one inner and one outer links (bypassing the rear derailleur).  Watch How To Video

Related Image
1x Drivetrains

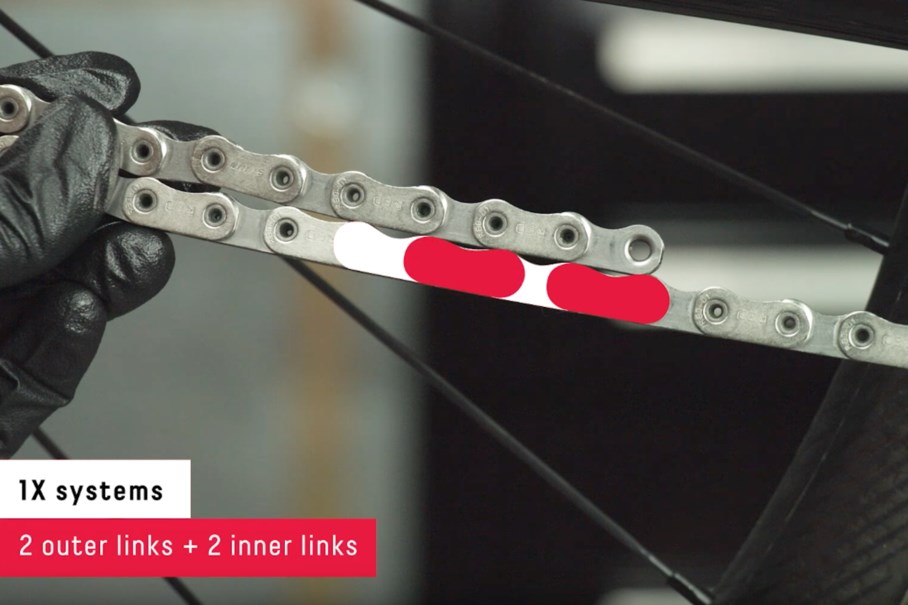

Chainring and big cog + two inner and two outer links (bypassing the rear derailleur).  Watch How To Video

Related Image

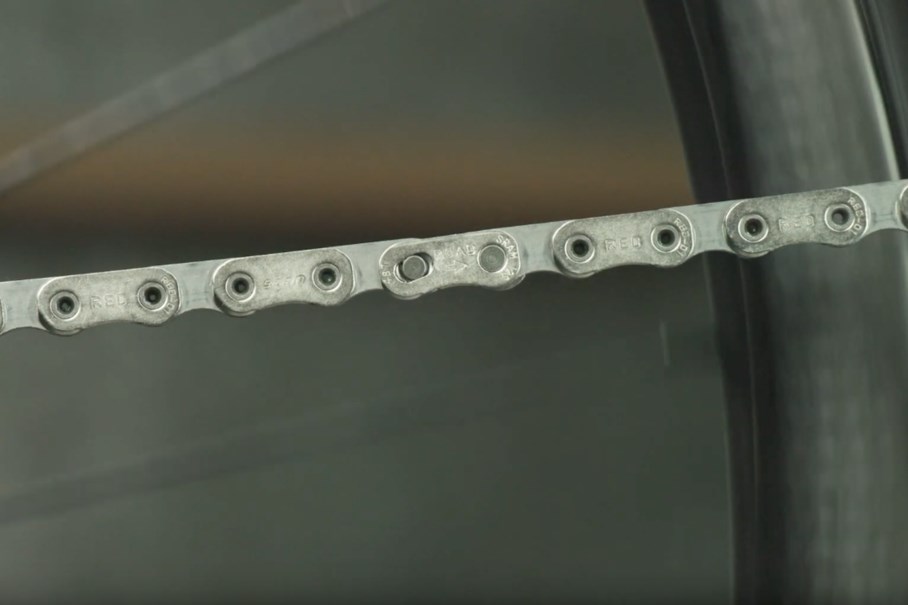

Install the PowerLock

Visually inspect the chain inboard & outboard to confirm that the PowerLock pins are seated completely, and then lock it the easy way, without tools. Watch How To Video

Related Image

3. MIND THE GAP

Front Derailleur

A) Check that you have a 0.5—1mm gap between the outer plate of the front derailleur cage and the chain when on the big ring and small cog combo.  Watch How To Video

Related Image

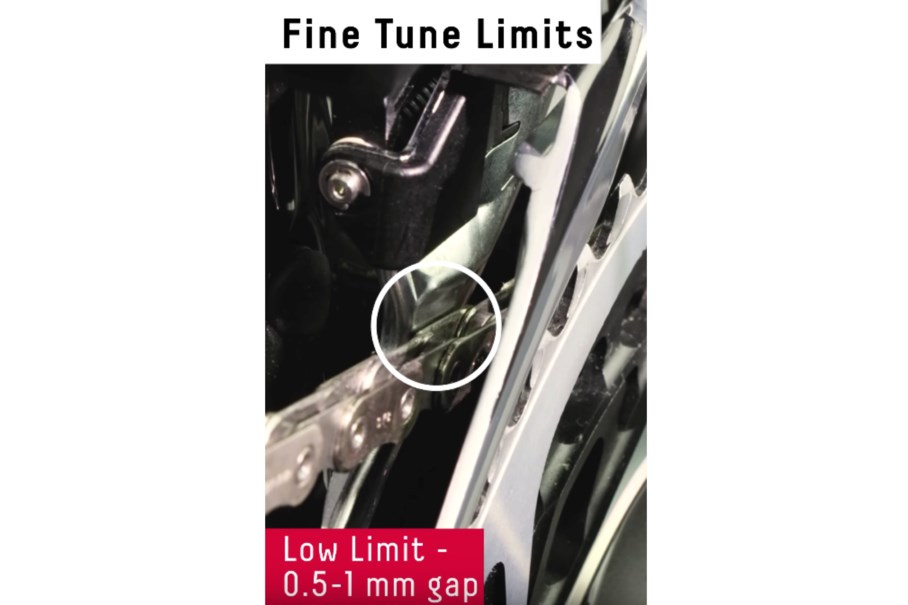

B) Check that you have a 0.5—1mm gap between the inner plate of the front derailleur cage and the chain when on the small ring and large cog combo.  Watch How To Video

Related Image
Rear Derailleur

Set rear derailleur B-gap using the supplied B-gap tool (don’t skip this step!) for the smoothest, fastest shifting setup.  Watch How To Video

Related Image
Related Image

4. DIAL IT IN

A) Fine tune rear shifting using MicroAdjust.  Watch How To Video

Related Image

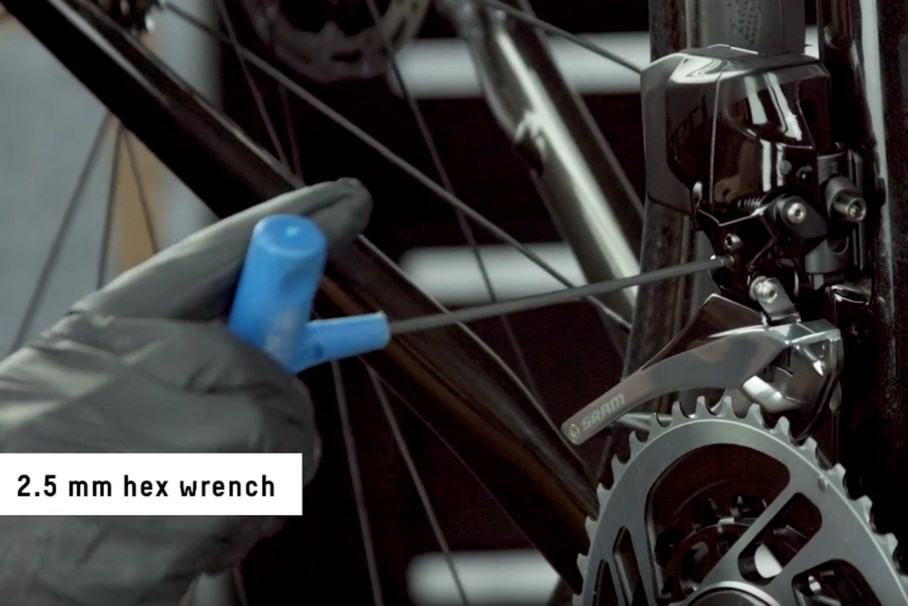

B) Fine tune front shifting with limit screws.  Watch How To Video

Related Image

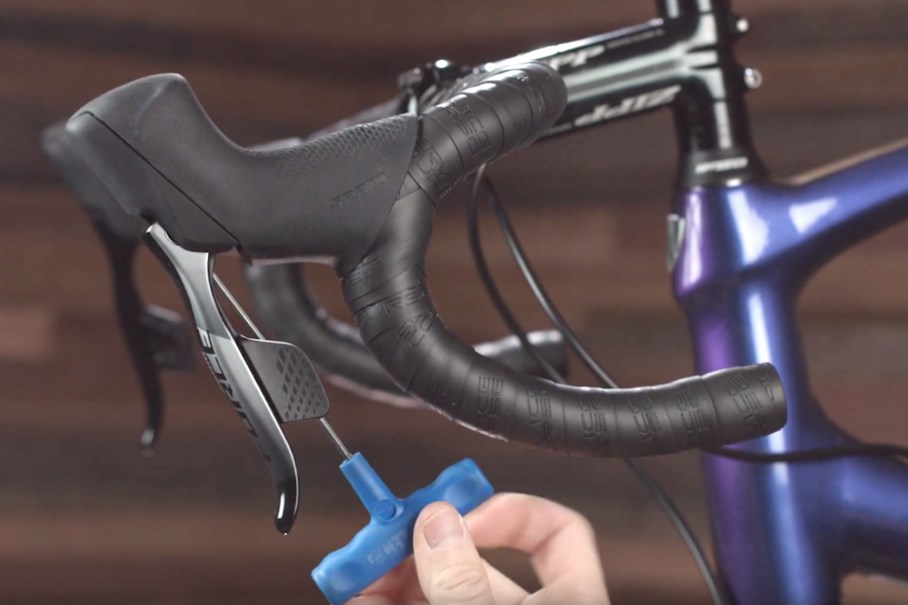

C) Set brake lever fit with ReachAdjust.  Watch How To Video

Related Image

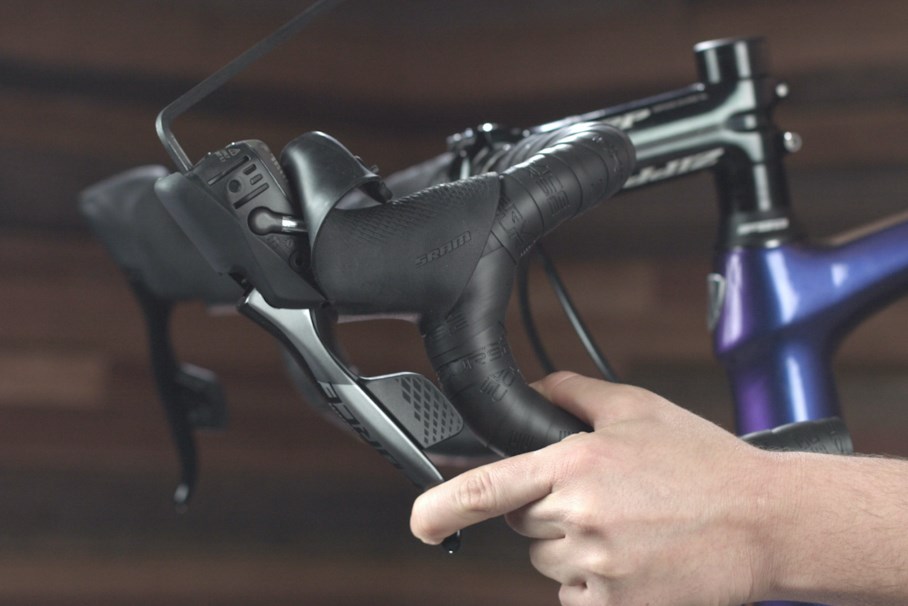

D) Set brake lever engagement with Contact Point Adjust (on disc brake models).  Watch How To Video

Related Image

Download the full eTap AXS User Manual here.

For more eTap AXS setup videos, visit the SRAM Tech YouTube Channel.
