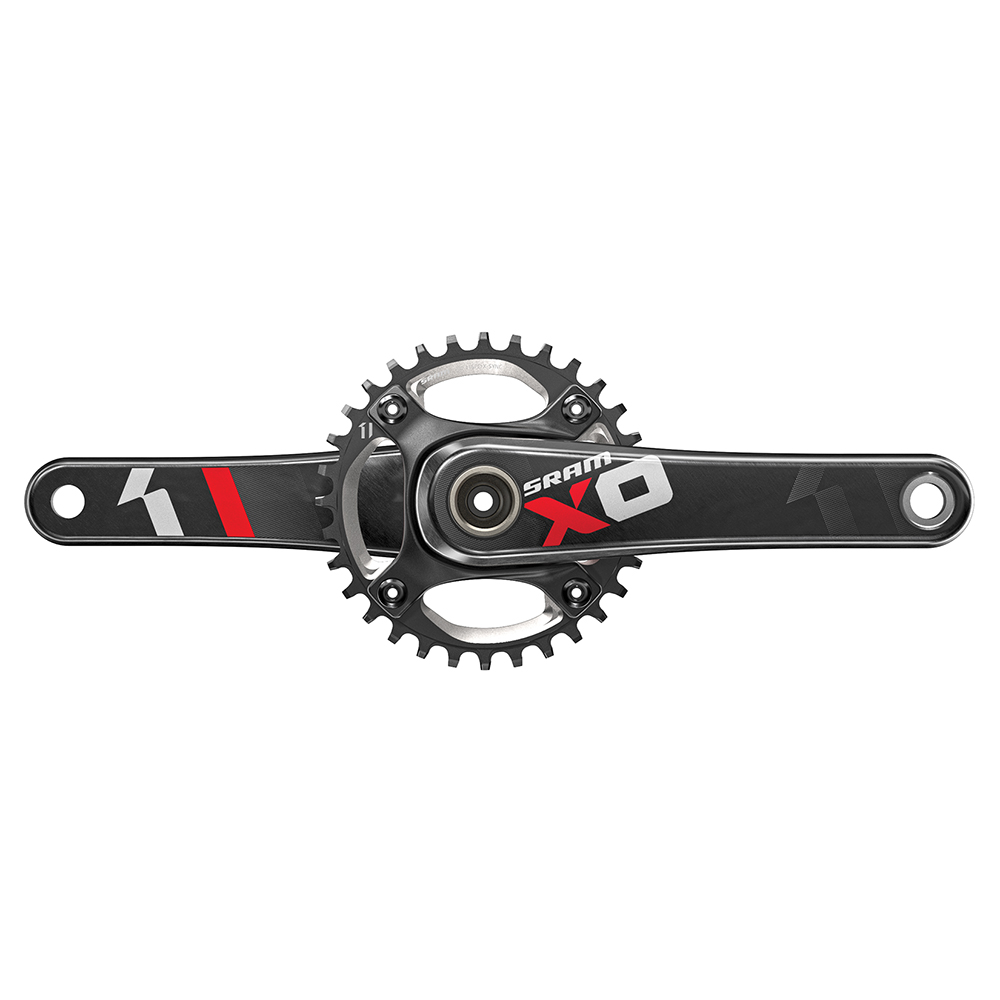

X01® DH X-SYNC™ Crankset

Model ID: FC-X0-1DH-A1

Specifications

Serial Number

Speeds	10/11
BB Compatibility	GXP 83mm/PF GXP 104.5/107mm, PF30 83mm
Chainring Size	32, 34, 36, 38
Crank arm length	165mm, 170mm
Chainline	49.0mm, 55.0mm
BB Spindle Interface	24mm, 30mm
Color (Crank arm)	Black, Red

Manuals & Documents

User Manual

PDF

Chainrings and Spider User Manual

2 MB

PDF

Chainrings and Spider User Manual EEU

2 MB

PDF

MTB Cranksets and Bottom Brackets EEU

2 MB

PDF

MTB Cranksets and Bottom Brackets User Manual

2 MB

Compatibility Map

PDF

Compatibility Map MTB 2018

708 KB

PDF

Direct mount X-SYNC™2 Eagle™ Chainring Compatibility

109 KB

Dimensions and Standards

PDF

Crankset X01DH 83mm 34T

11 MB

Declarations of Conformity

PDF

Declaration of Conformance - Front Chainwheels_2018.pdf

61 KB

Warranty

PDF

SRAM Warranty - Rev G

2 MB

PDF

SRAM and Zipp Warranty - Rev K

604kb
