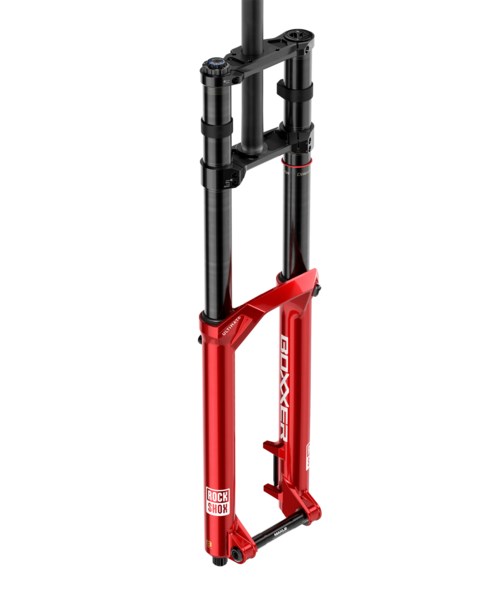

BoXXer Ultimate

Model ID: FS-BXR-ULT-D2

Popular Resources:

Enter serial number or part number for exact specs

Locate serial number on your product

Wheel size	27.5", 29"
Travel (mm)	180mm, 190mm, 200mm
Damper Type	Charger 3.2 RC2 W/ButterCups
Fork offset	44mm (27.5"), 48mm (27.5"), 48mm (29"), 52mm (29")
Color (FS)	BoXXer Electric Red - Gloss, Gloss Black
E-Bike Approved	E-bike Approved
Steerer	1-1/8" Aluminum
Axle	20x110mm BOOST™
Upper tube type	38mm aluminum
Damper adjust	Crown
Volume reducer	0/6 Tokens, 1/6 Tokens
Spring	DebonAir+ W/ButterCups, Linear XL W/ButterCup
Max Tire Width (mm)	81
Maximum Rotor Size	220mm
Minimum Rotor Size	200mm
Fender Compatibility	Bolt On - Short (Use AC-FEN-BXR-A1)
Bottom Out	n/a
Compression tune	C5
Rebound tune	R55
