Level TLM

Related Image

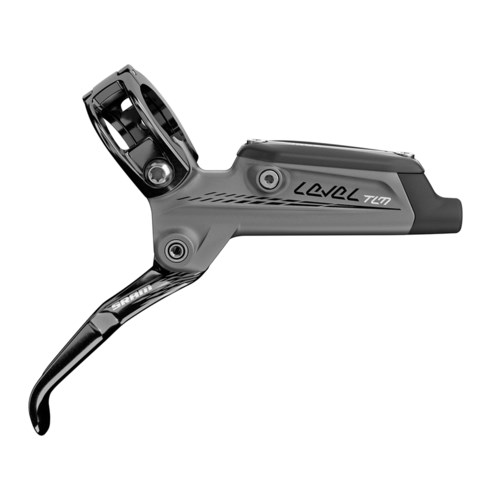

Level TLM

Model ID: DB-LVL-TLM-A1

Specifications

Enter serial number for exact specs

Locate serial number on your product

Application (DB)	MTB
Brake type	Hydraulic
Blade material	Aluminum - Forged
Contact adjust	No
Color (DB)	Dark Grey Paint, Diffusion Black
Orientation	Front, Rear
Pad type (Disc)	Steel-backed metal sintered, Steel-backed organic
Bracket (Disc Brake)	Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Reach adjust	Tooled, Tool-free
Hydraulic fluid	DOT 5.1
Lever pivot	Bushing
Weight (g)	356
Weight Based On	Direct Mount, 800mm hose, 160mm CL Rotor

Manuals & Documents

Show All Available Languages

Videos

Show All Available Languages

Stealth-A-Majig™ Hose Barb and Compression Fitting Installation

Montage von Stealth-a-majig™ Leitungsnippel und Olive

SRAM Brakes | How to: Bed In Disc Brakes

SRAM Hydraulic Disc Brakes Piston Massage Procedure

SRAM MTB : purge des freins Bleeding Edge

SRAM MTB: Bleeding Edge Brake Bleed

Instalación del conector del latiguillo y el racor de compresión Stealth-a-majig™

Installation du raccord cannelé et de l’olive de compression Stealth-a-majig™

SRAM MTB: Bleeding Edge-Bremsentlüftung

Bleeding Edge Overview
