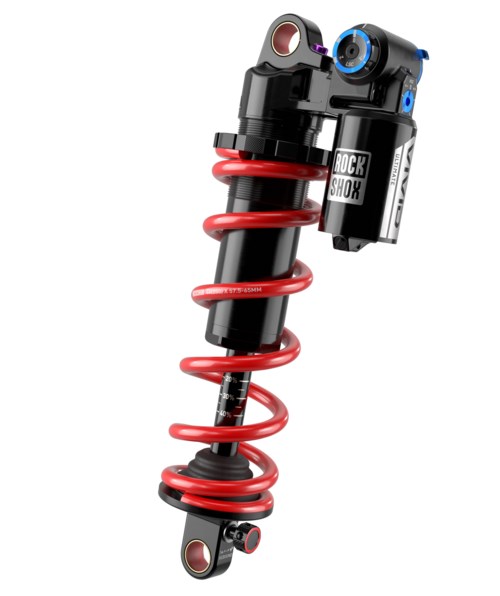

Vivid Coil Ultimate

Related Image

Vivid Coil Ultimate

Model ID: RS-VIVC-ULT-D1

Popular Resources:

Specifications

Enter serial number for exact specs

Locate serial number on your product

Eye to eye / Stroke	185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Damper Type	RC2T Adj. Hydraulic Bottom Out
Rebound tune	R25, R55
Compression tune	C22, C26, C30, C34, C37, C40, C43
Lockout force	X05, X25, X45
Shaft Eyelet	No Bushing, No Bushing - 270 Deg Rotation, No Bushing - 90 Deg Rotation, Standard, Standard - 180 Deg Rotation, Standard - 75 Deg Rotation, Standard - 90 Deg Rotation
Body Eyelet	No Bushing, Standard, Trunnion
E-Bike Approved	E-bike Approved
Bottom Out	Externally Adjustable Bottom Out
High Speed Tune	n/a
