New

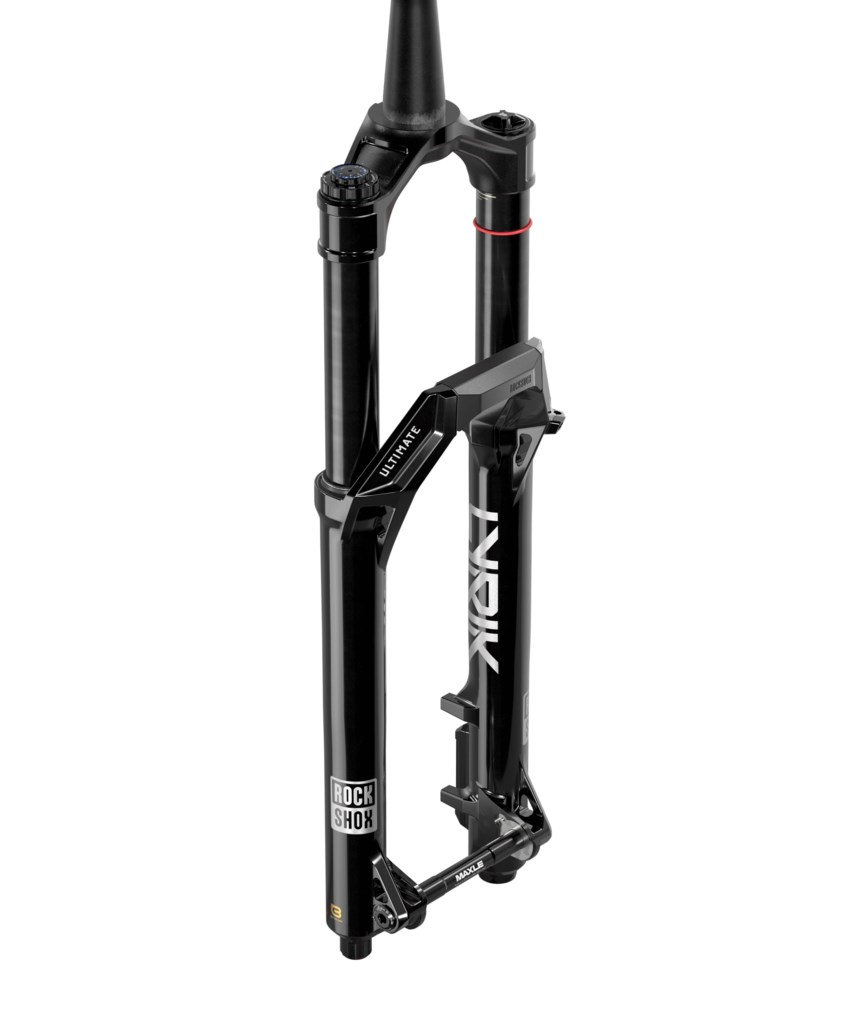

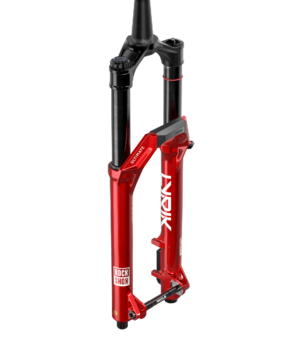

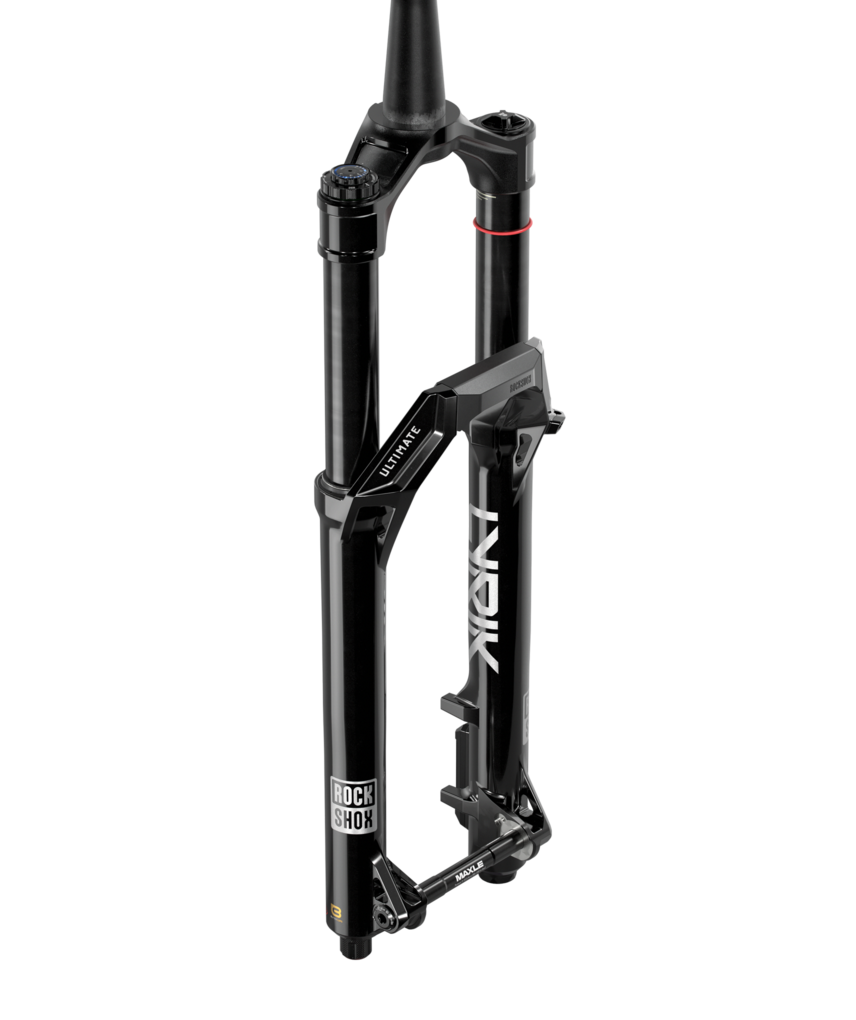

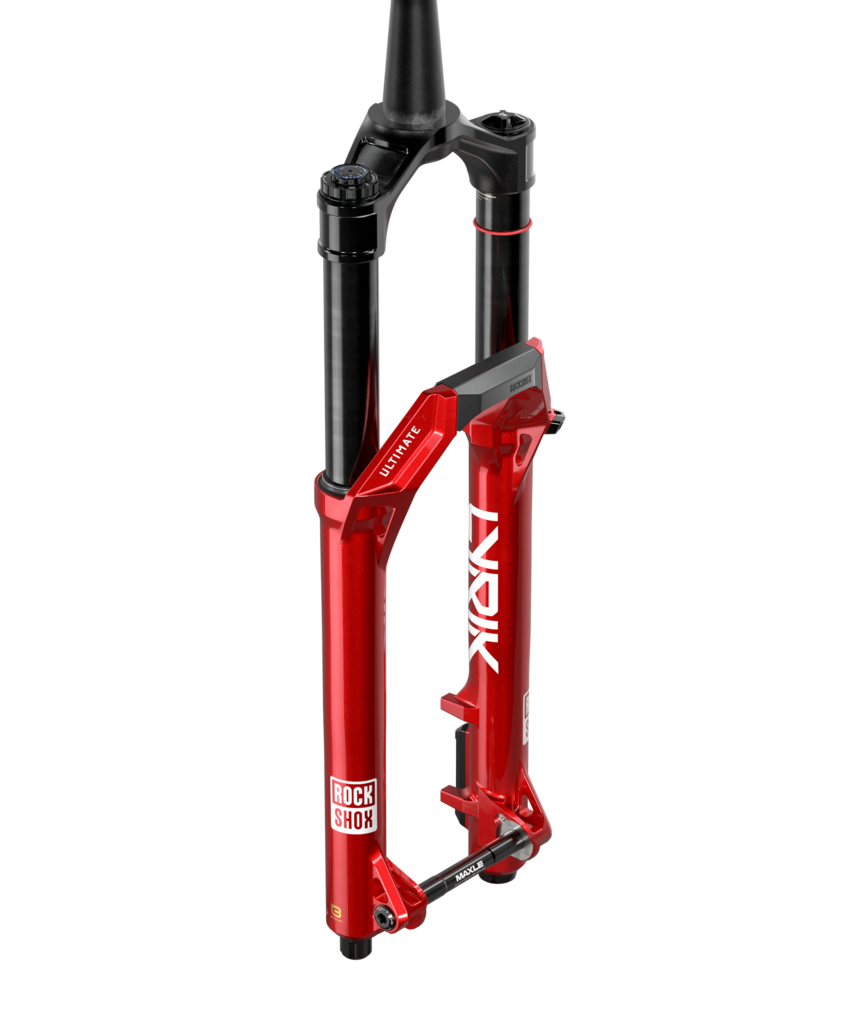

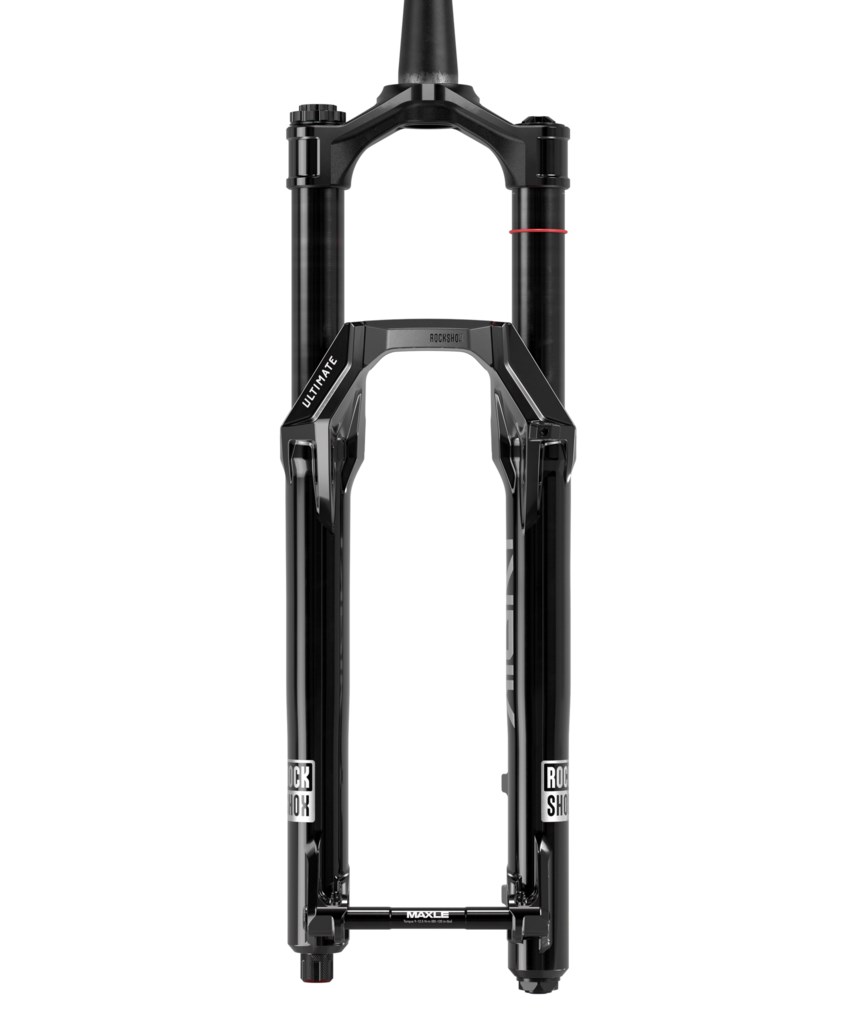

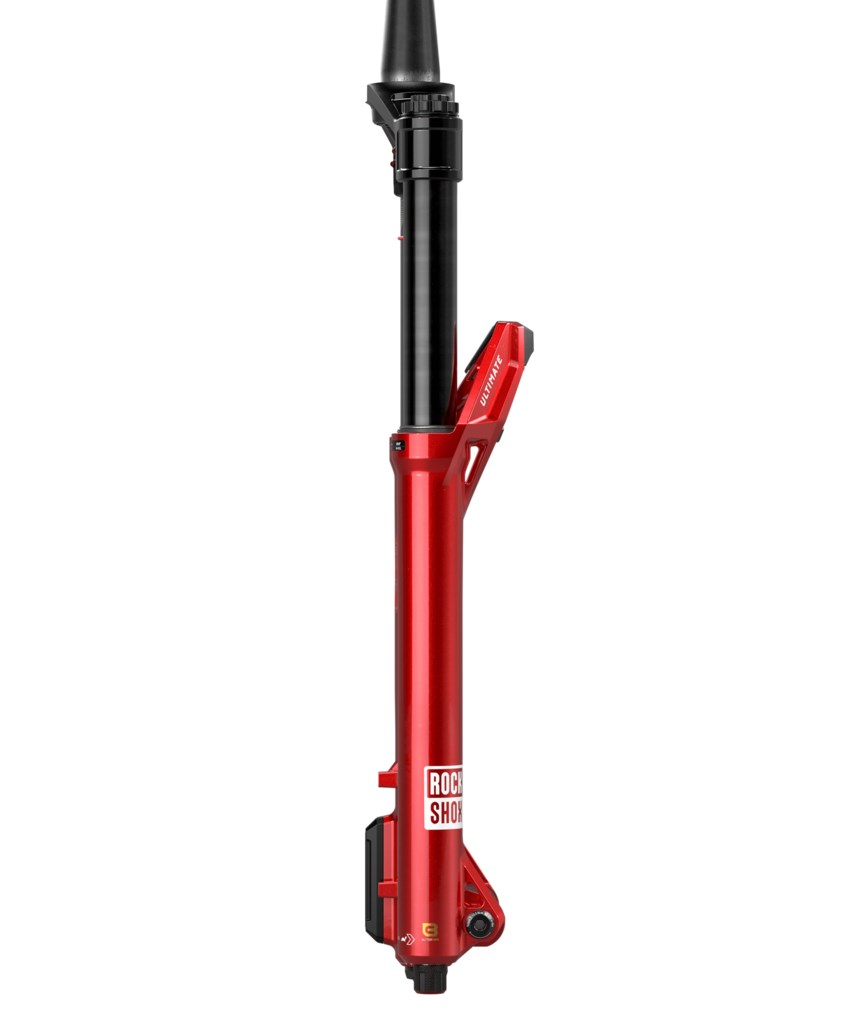

Lyrik Ultimate

Msrp

$1259

Model ID

FS-LYRK-ULT-E1

{{spec.DisplayName}} - {{spec.Value}}

Ships after .

Currently out of stock until .

Description
Find a Dealer

Any trail, any time. Lyrik is the fork that’s light where it counts, ruthless on the descents. The all-new LinearXL air spring delivers a coil-like ride—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out (ABO) for confident end-stroke control—giving you unwavering consistency and predictability. Found only in our Ultimate forks, ButterWagonTech ensures a constant supply of oil to the bushings, reducing friction, and maintaining smooth performance throughout the entire service interval. Intuitive HSC/LSC controls on the Charger 3.2 damper with ButterCups technology make setup fast, understandable, and easy to communicate. Versatile without compromise, Lyrik stays composed and on target yet won’t weigh you down when the route turns into an all-day pedal. Practical, capable, always ready for what’s next.

Read More
Read Less
Features

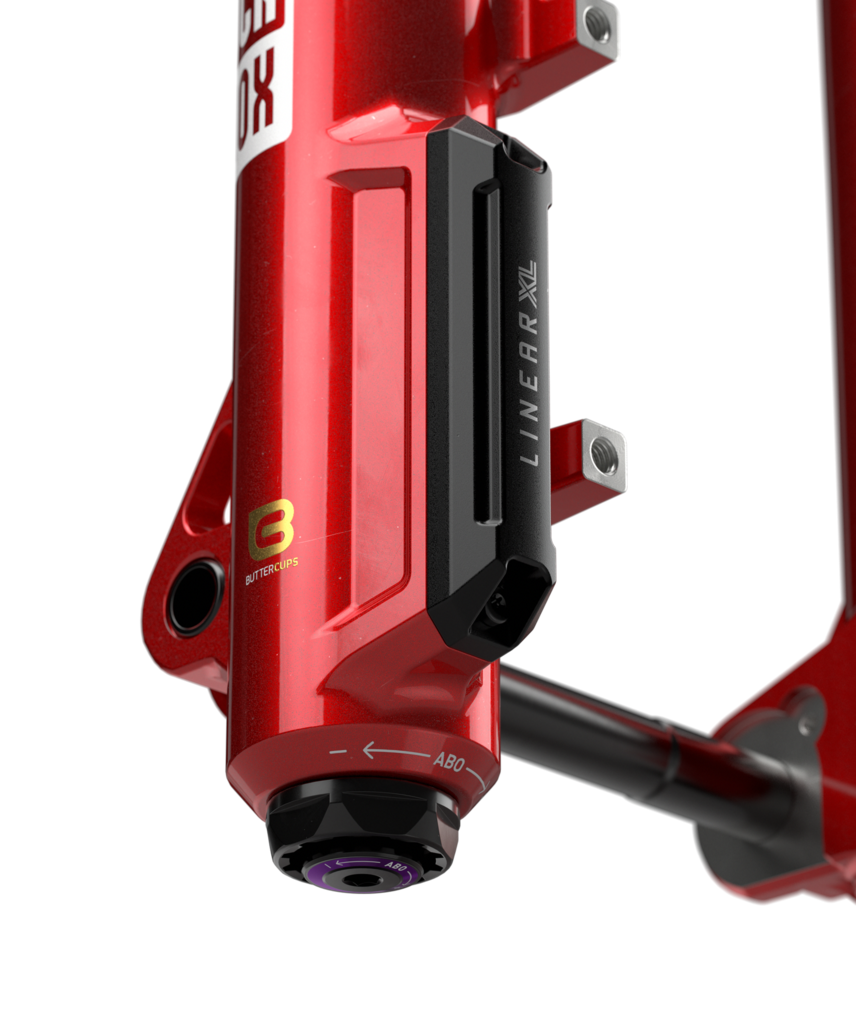

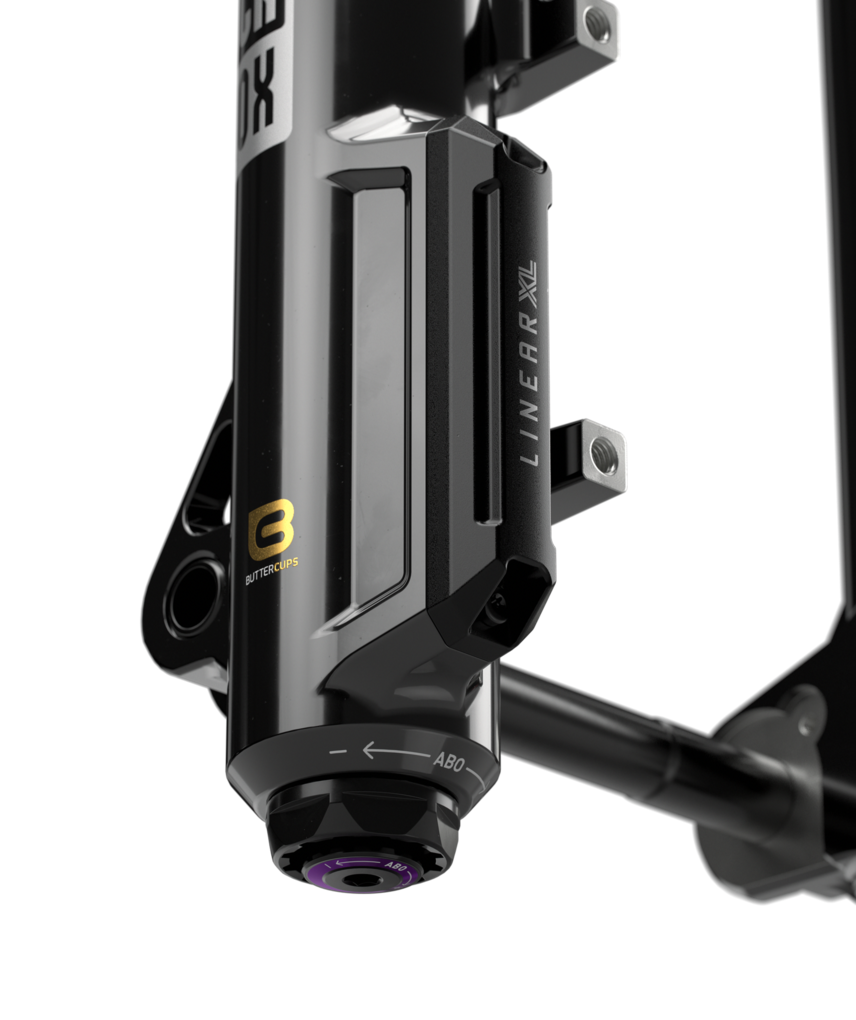

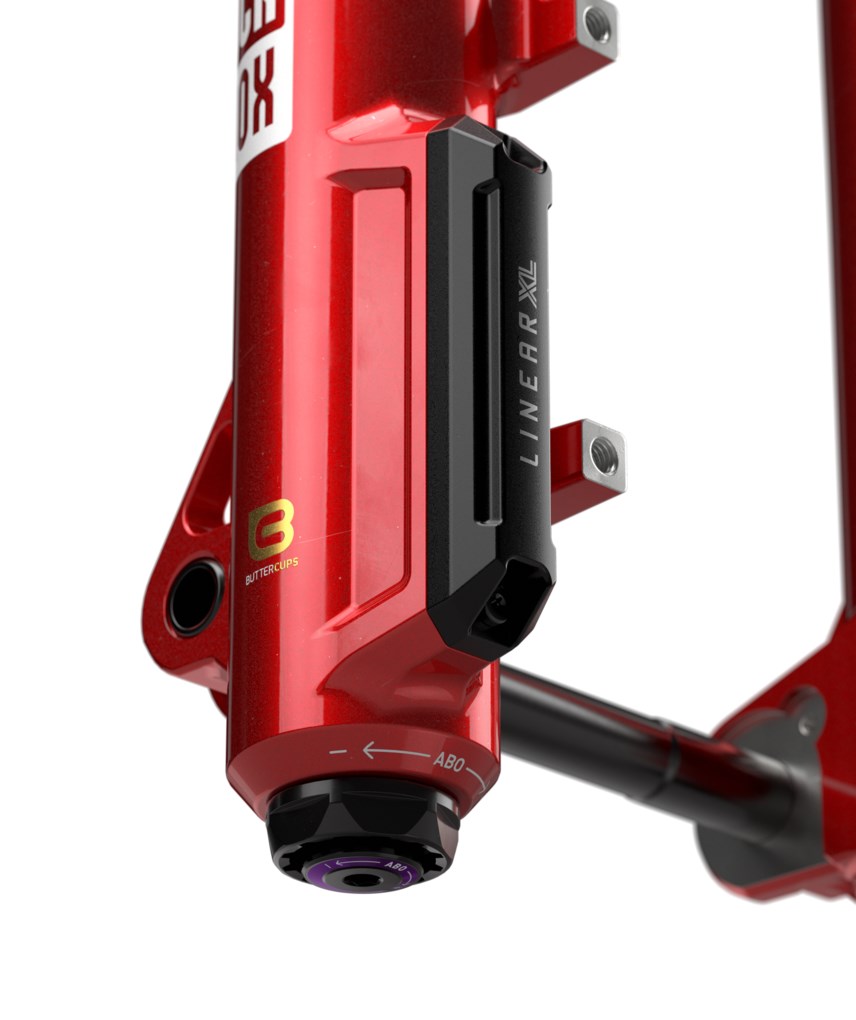

  • NEW LinearXL air spring delivers a consistent and predictable ride feel backed by Adjustable Bottom Out (ABO) for end-stroke control
  • NEW ButterWagonTech ensures a constant supply of oil to the bushings, reducing friction and maintaining smooth performance throughout the entire service interval
  • NEW Charger 3.2 damper with new Rebound/Compression tunes that match LinearXL air spring, achieves virtually silent performance, keeping riders focused on the trail

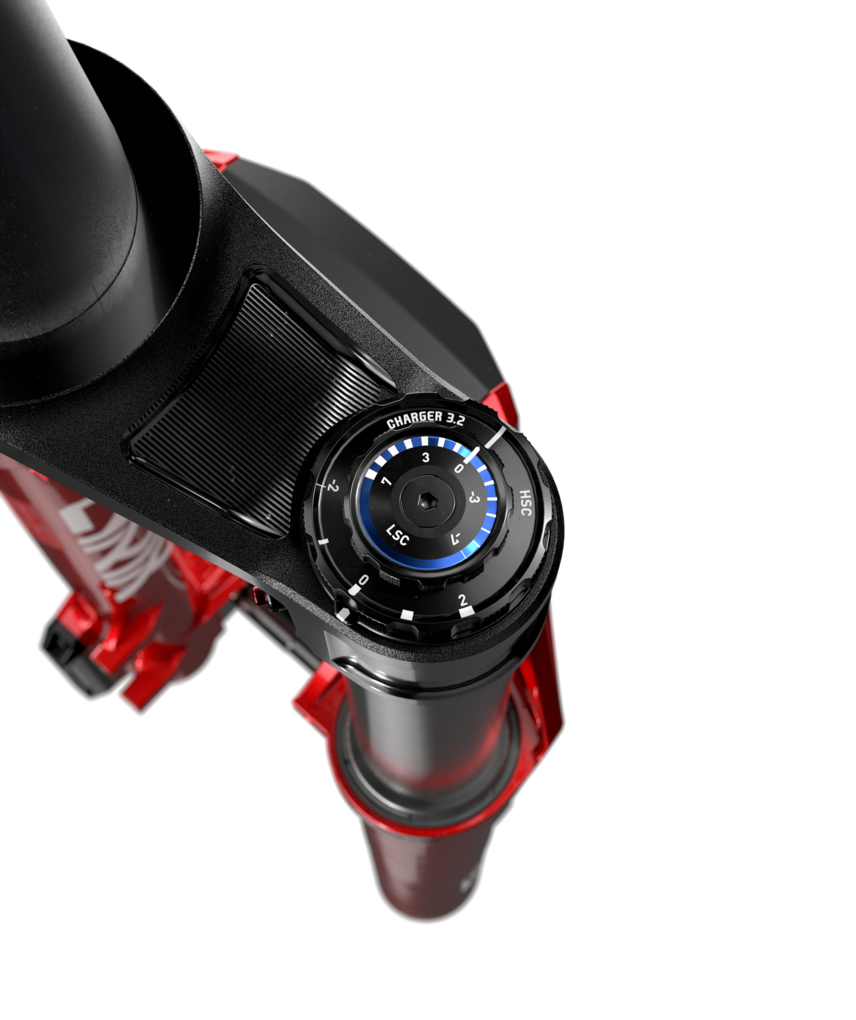

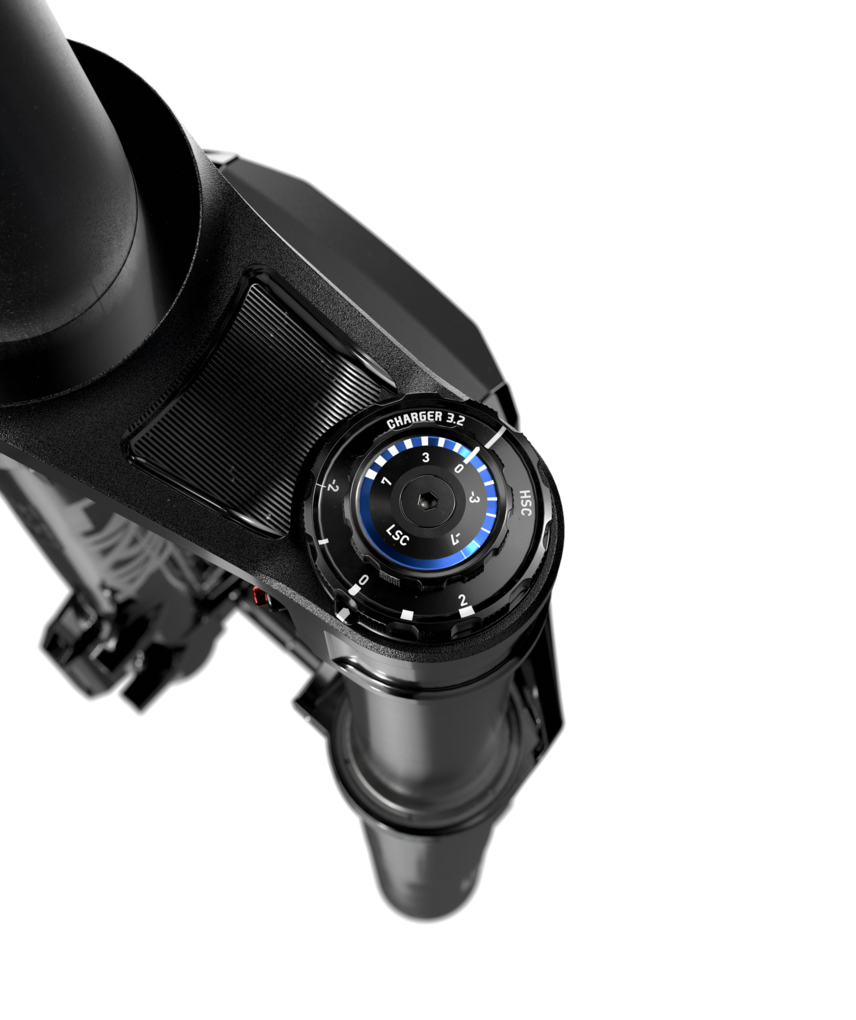

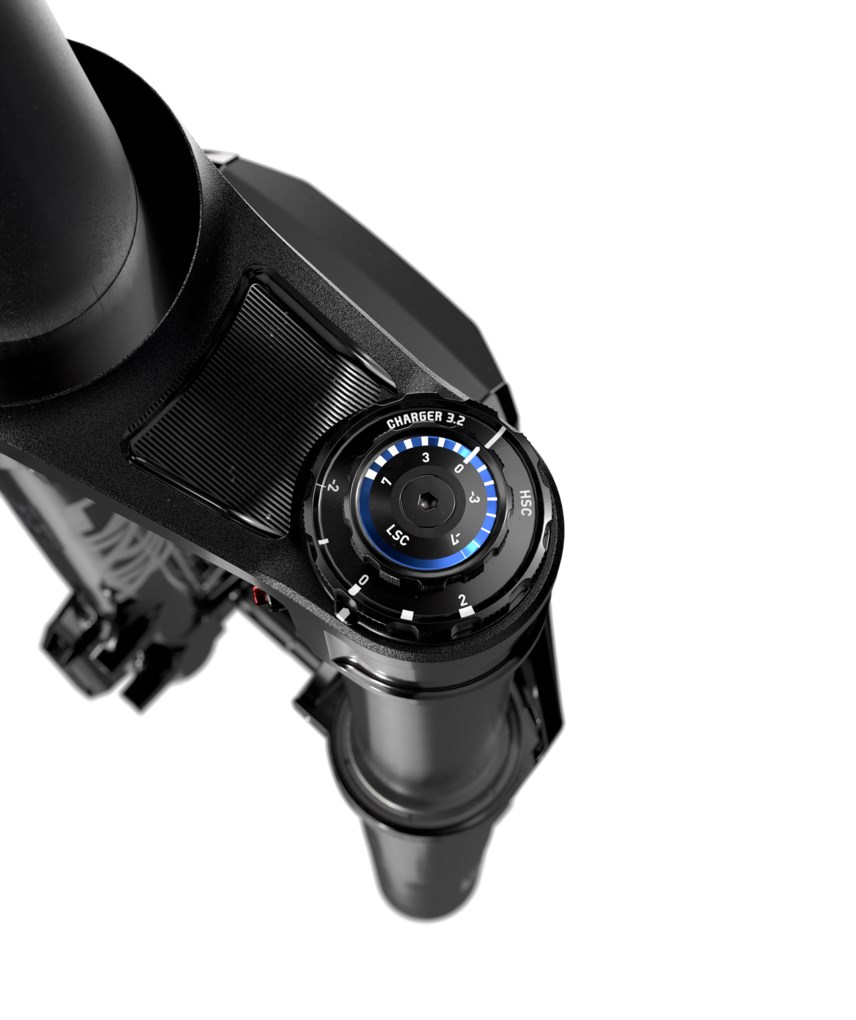

  • NEW Control bezel with numbered Compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping

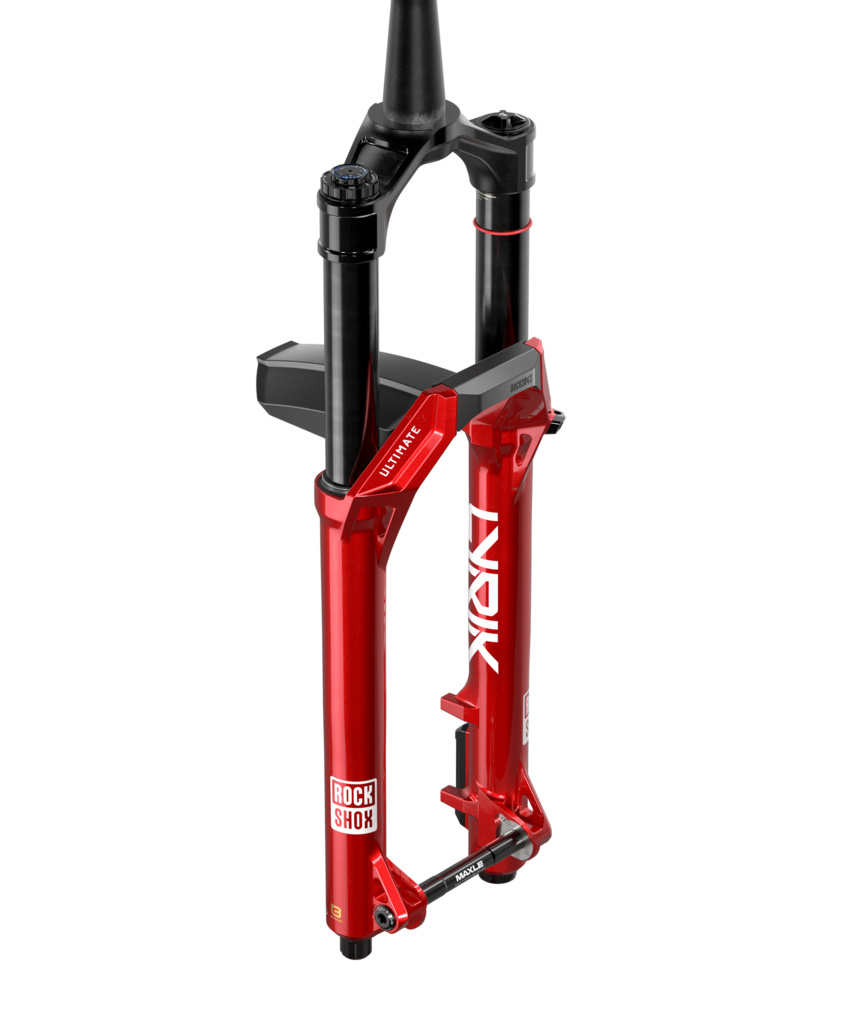

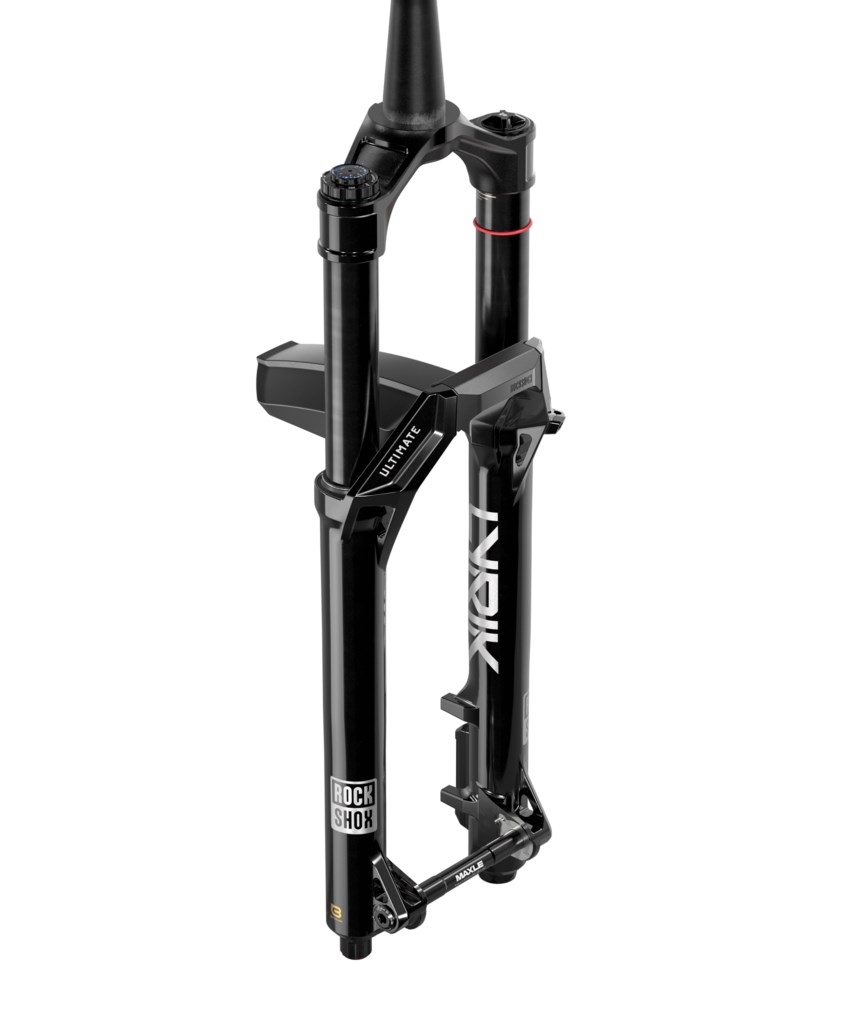

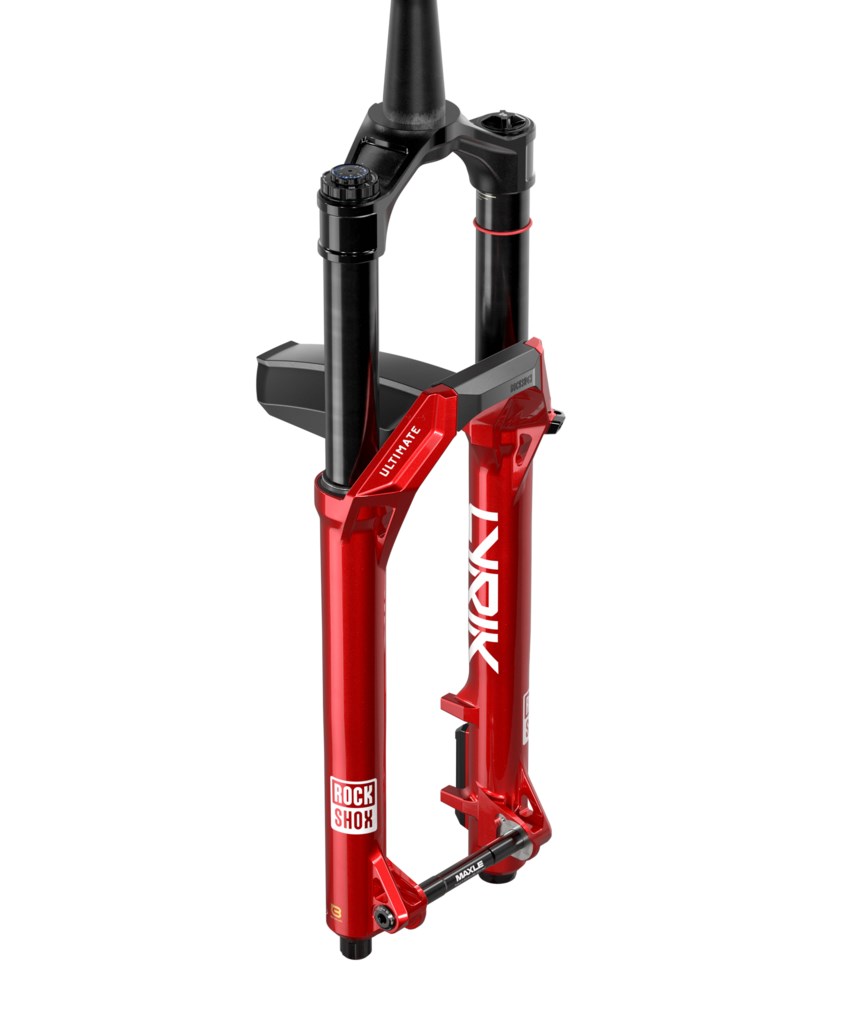

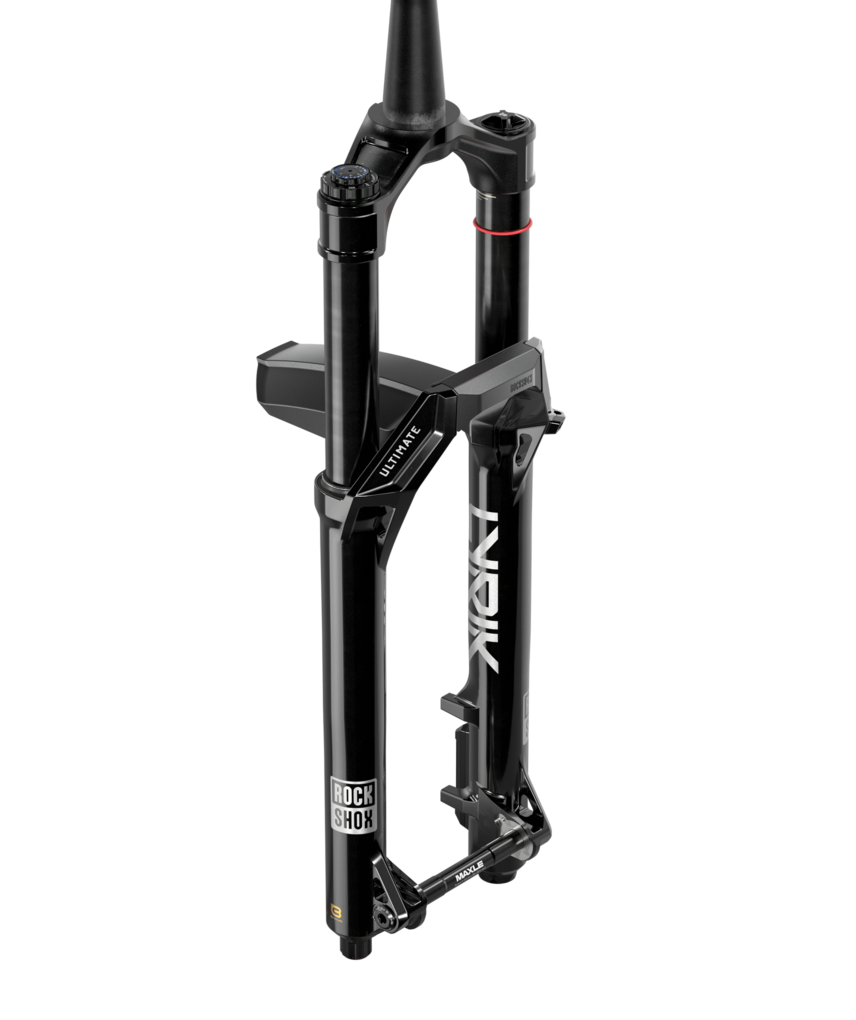

  • NEW Integrated short fender mount (Lyrik Integrated Fender included)
  • NEW Graphics package—minimalist design, maximum impact
  • ButterCups technology block 20% of high-frequency “trail chatter” to reduce hand and arm fatigue
  • Low-grab SKF wiper seals deliver long-lasting fork performance and a smoother ride
  • Maxima 920 blended 15w reduces overall fork friction
See more features
See less features

Specifications

Wheel size 27.5", 29"
Travel (mm) 140mm, 150mm, 160mm, 170mm
Damper Type Charger 3.2 RC2 W/ButterCup
Fork offset 37mm (27.5"), 44mm (27.5"), 44mm (29")
Color (FS) Electric Red - Gloss, Gloss Black
E-Bike Approved E-bike Approved, E-bike Approved w/E-MTB Decal
Steerer 1.5" Tapered, 1.8" Tapered
Axle 15x110mm BOOST™ TC Compt
Upper tube type 35mm tapered wall aluminum
Damper adjust Crown
Volume reducer 0/3 Tokens, 0/4 Tokens, 1/5 Tokens
Spring LinearXL W/ButterCup
Max Tire Width (mm) 70
Maximum Rotor Size 220mm
Minimum Rotor Size 180mm
Fender Compatibility Bolt On - Short (Use AC-FEN-AM-B1)
Bottom Out Externally Adjustable Bottom Out
Compression tune C5, C7
Rebound tune R55

Service

Installation. Service. Compatibility. Find all the documentation needed to set up, use, and maintain your components in the SRAM Service hub.

Visit product service page
