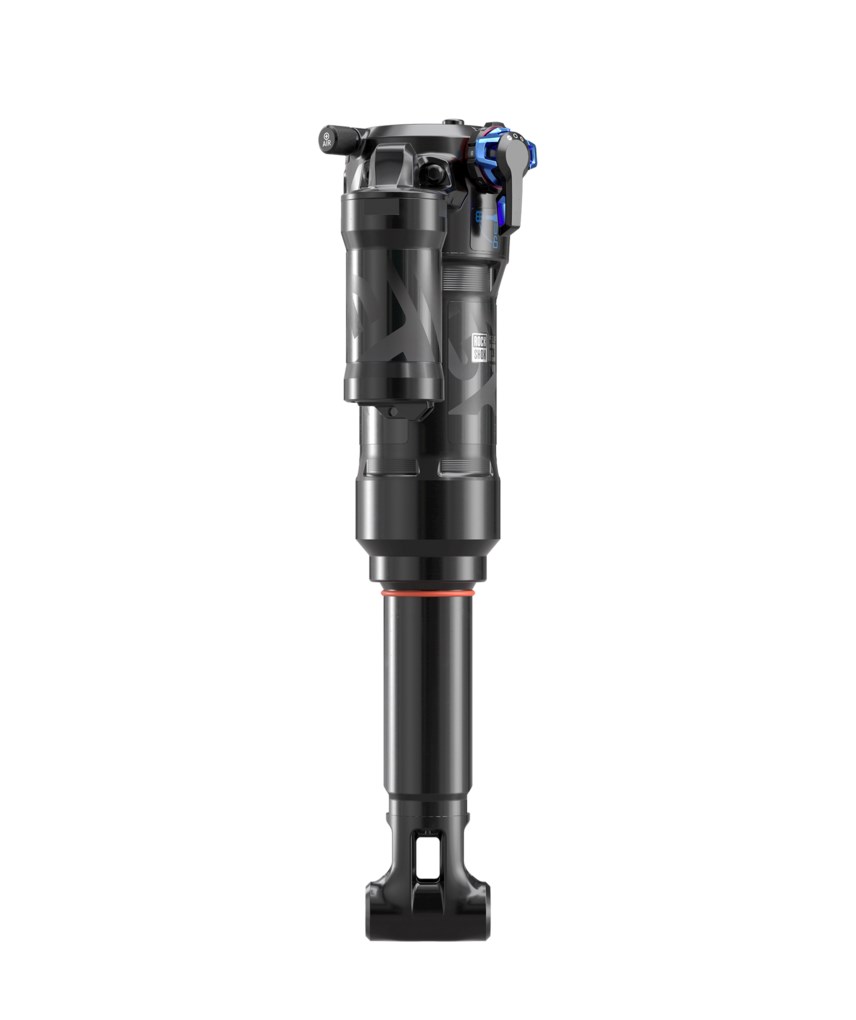

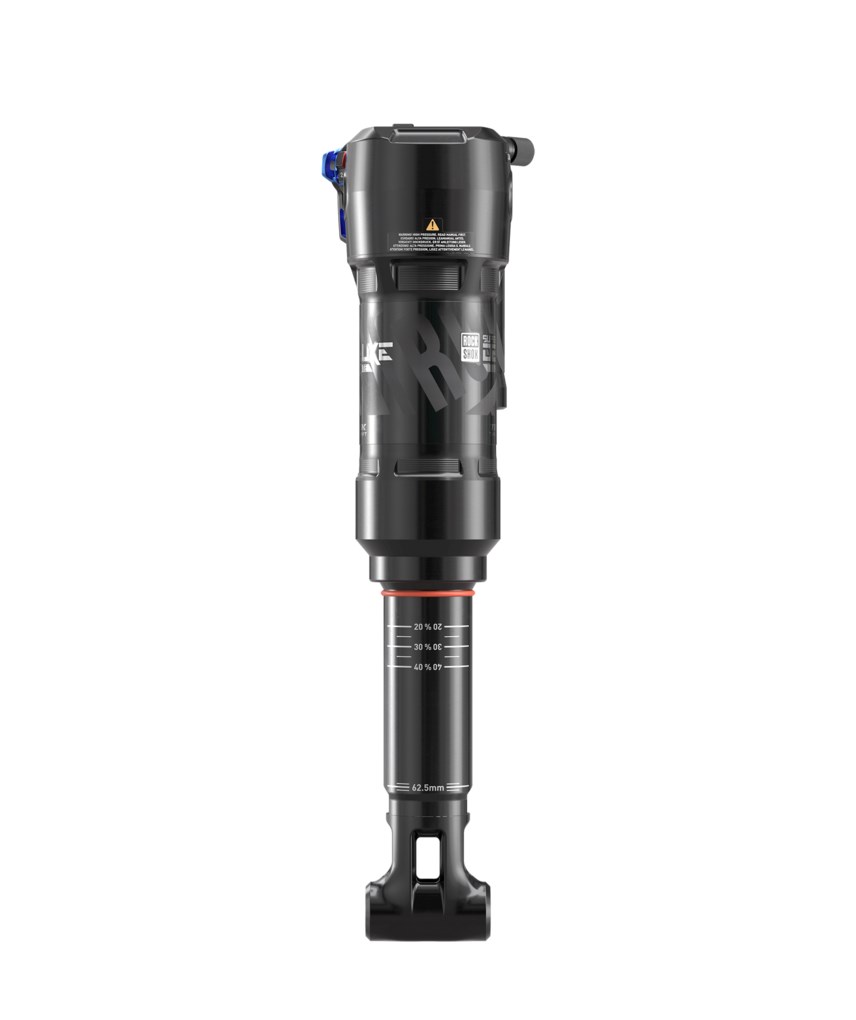

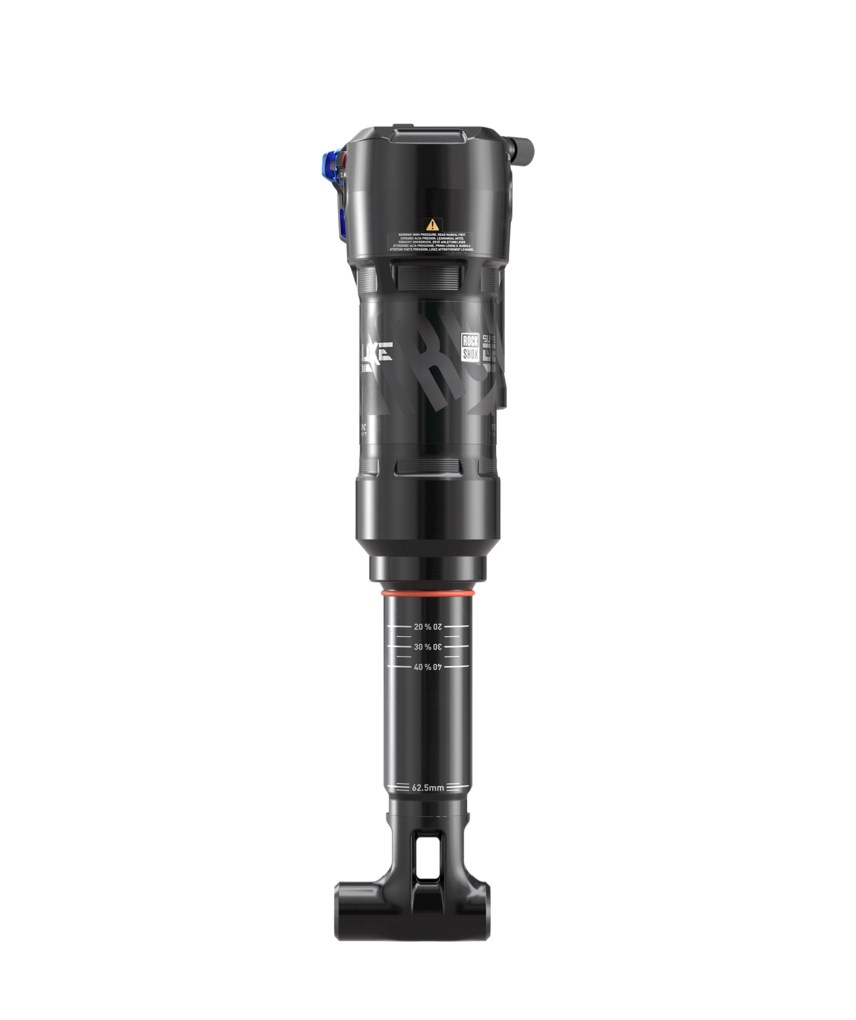

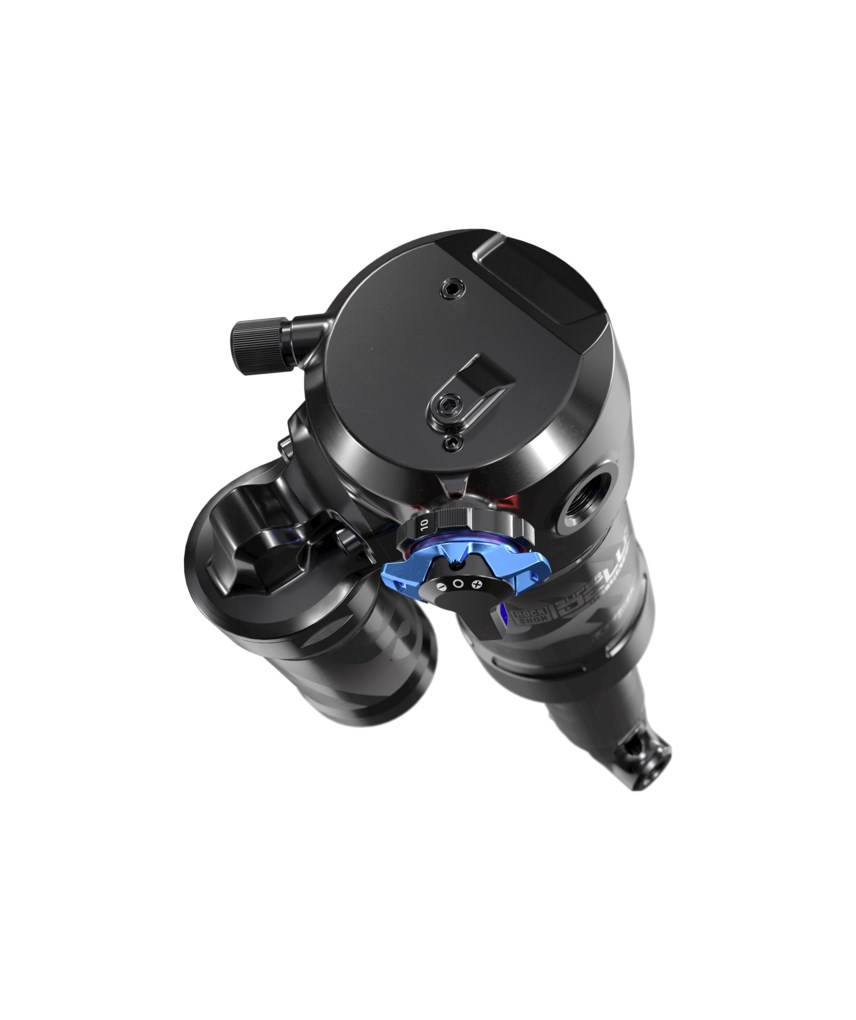

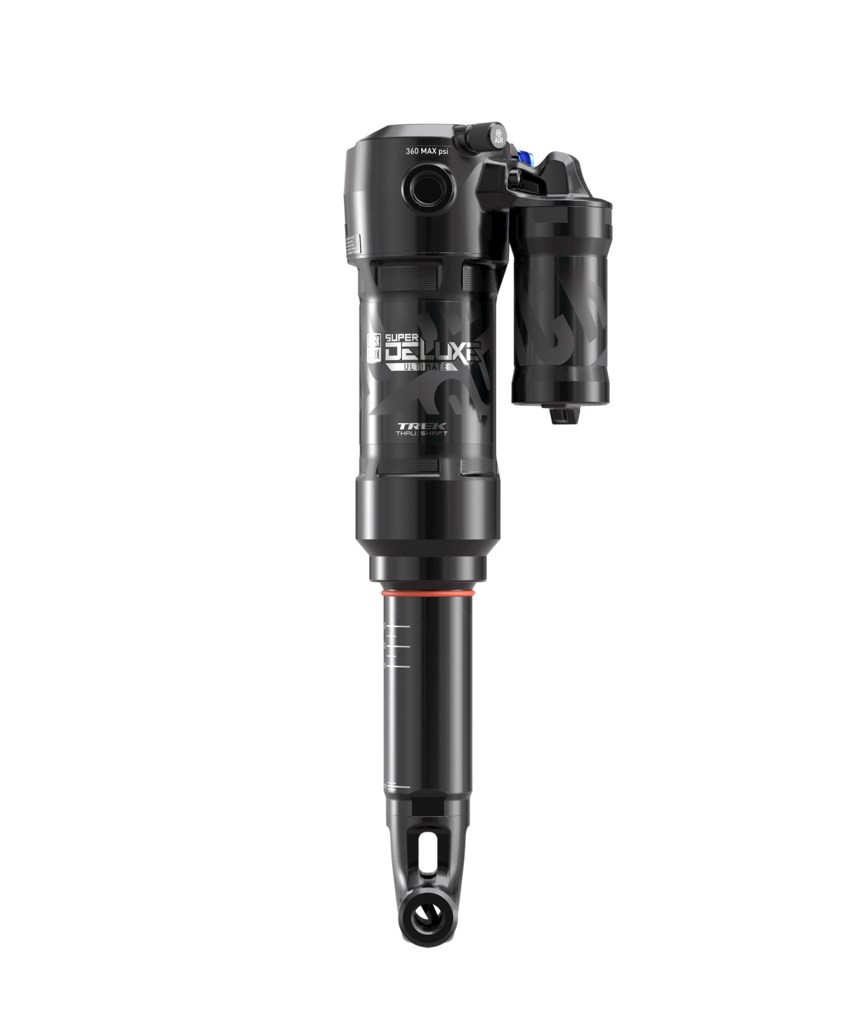

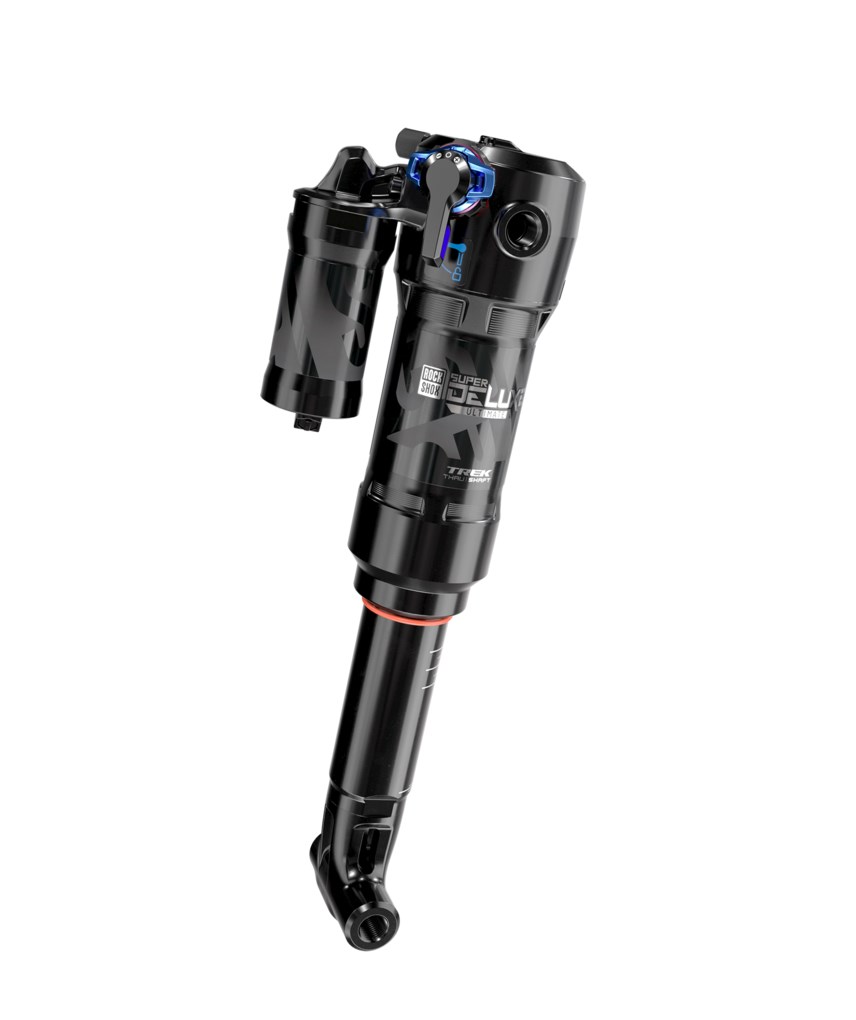

Super Deluxe Ultimate ThruShaft



Model ID


{{spec.DisplayName}} - {{spec.Value}}

Ships after .

Currently out of stock until .

Find a Dealer

When the engineering superpowers of Trek and RockShox combine, the results are anything but ordinary. Completely reimagined, the Super Deluxe Ultimate ThruShaft was created with a go anywhere, ride anything attitude. The ideal match for the next generation of hard hitting all-mountain enduro bikes.

Read More
Read Less

Please check with frame manufacturer on Aftermarket rear shock compatibility.

  • Trek's exclusive ThruShaft design responds to changes in terrain faster than any other shock on the market
  • Versatility is key for a go anywhere, do anything attitude. Dial it in with redesigned Low Speed Compression adjustment offering three options to find your perfect match to seize the day.
  • Featuring an oversized thermal compensator for greater temperature stability and consistent suspension feel on those extra long, extra demanding descents.
  • Time to adjust. With a “fully checked” damper, your compression settings work independently, not to be bothered by each click of Rebound.
  • Setting up your Rebound made simple with numerically indicated adjustments to eliminate the number crunching.
  • Shock controls optimized for frame integration and rider ergonomics
  • Available in Trek Specific Trunnion ThruShaft 230x57.5 and 230x62.5 configurations.
  • MegNeg air can is not compatible with MY21 Super Deluxe Ultimate ThruShaft.
  • Only compatible with purple tokens for positive and negative air spring tuning
See more features
See less features

Some variations of this product featured on this page are not available for purchase and are installed on bicycles as complete bikes only. See your dealer for details.



Eye to eye / Stroke 230x57.5, 230x62.5
Damper Type RCT
Rebound tune M
Compression tune M
Lockout force 380
Shaft Eyelet Trunnion
Body Eyelet Yoke
E-Bike Approved E-bike Approved


Installation. Service. Compatibility. Find all the documentation needed to set up, use, and maintain your components in the SRAM Service hub.

Visit product service page
