New

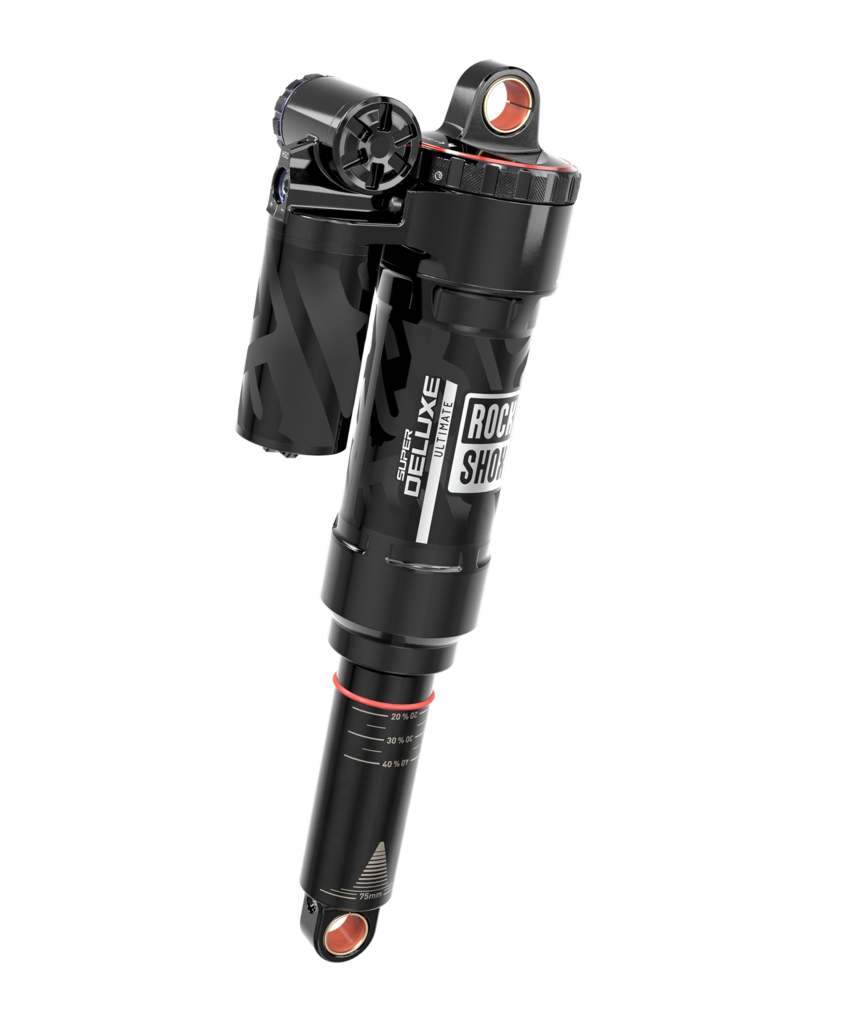

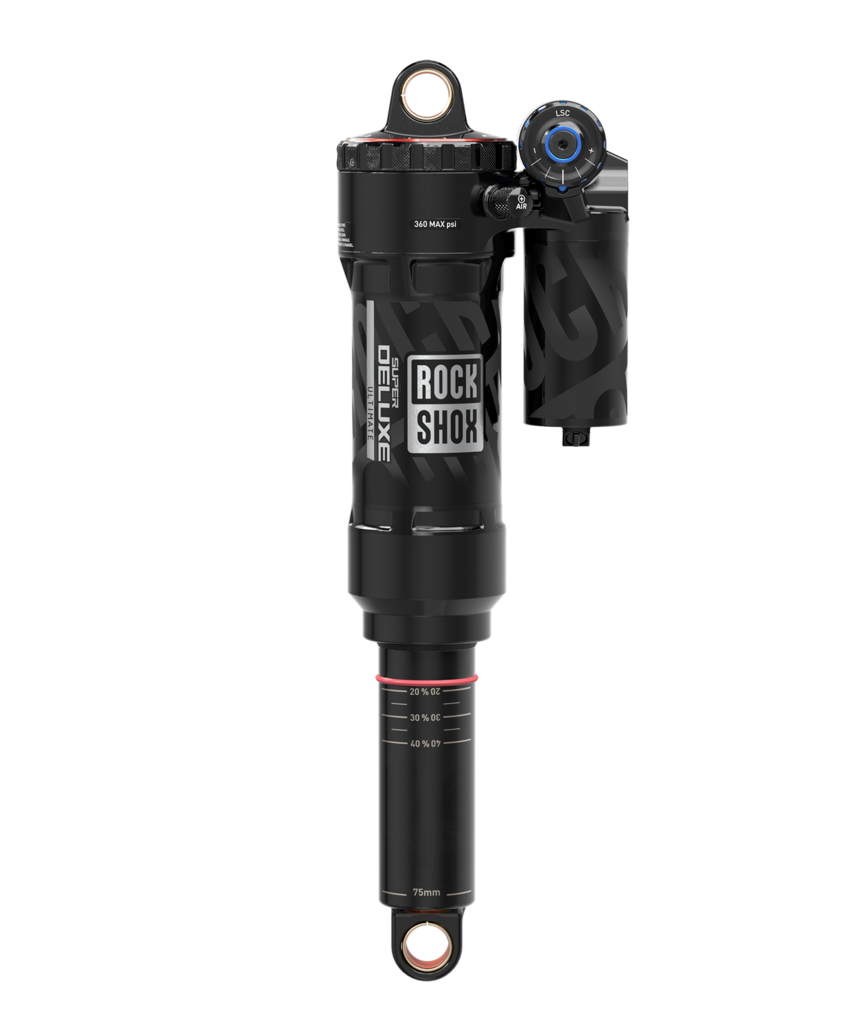

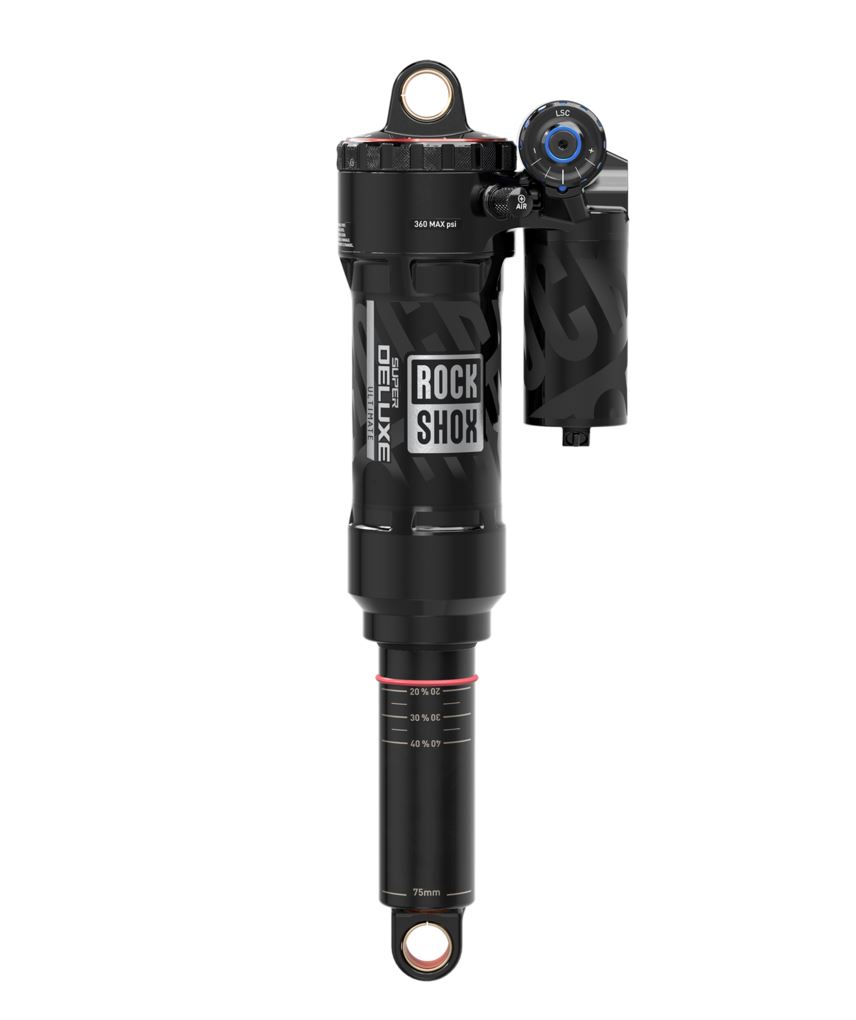

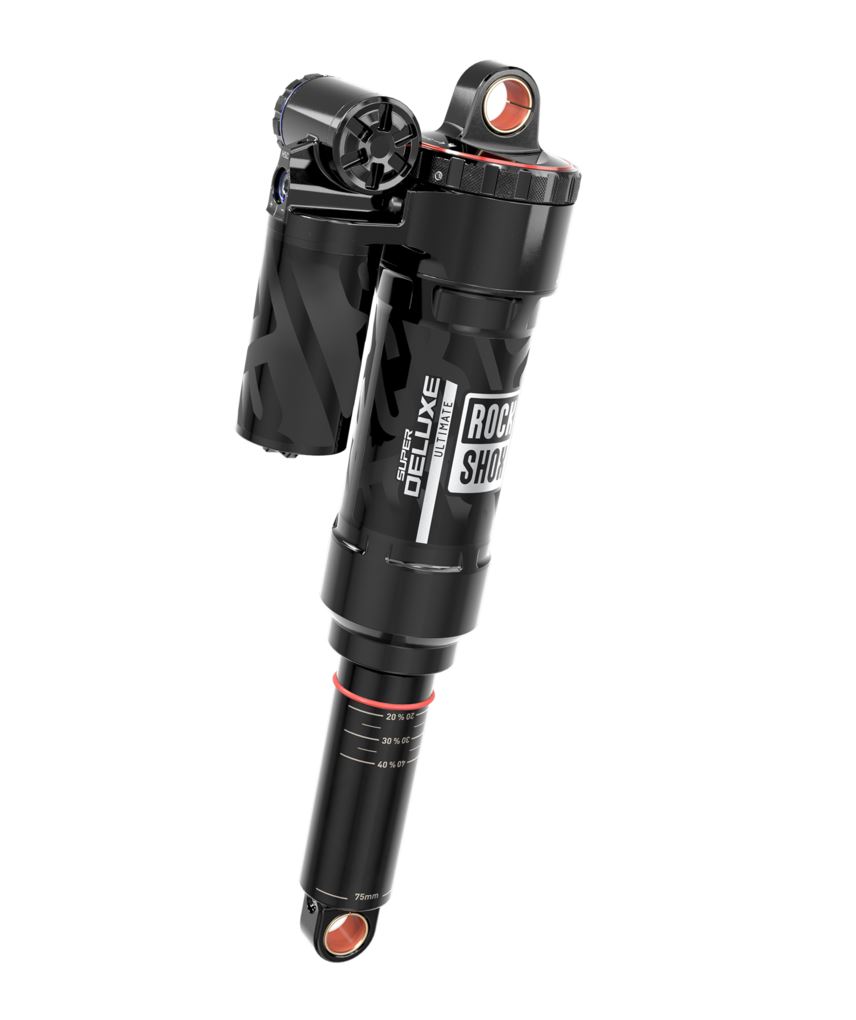

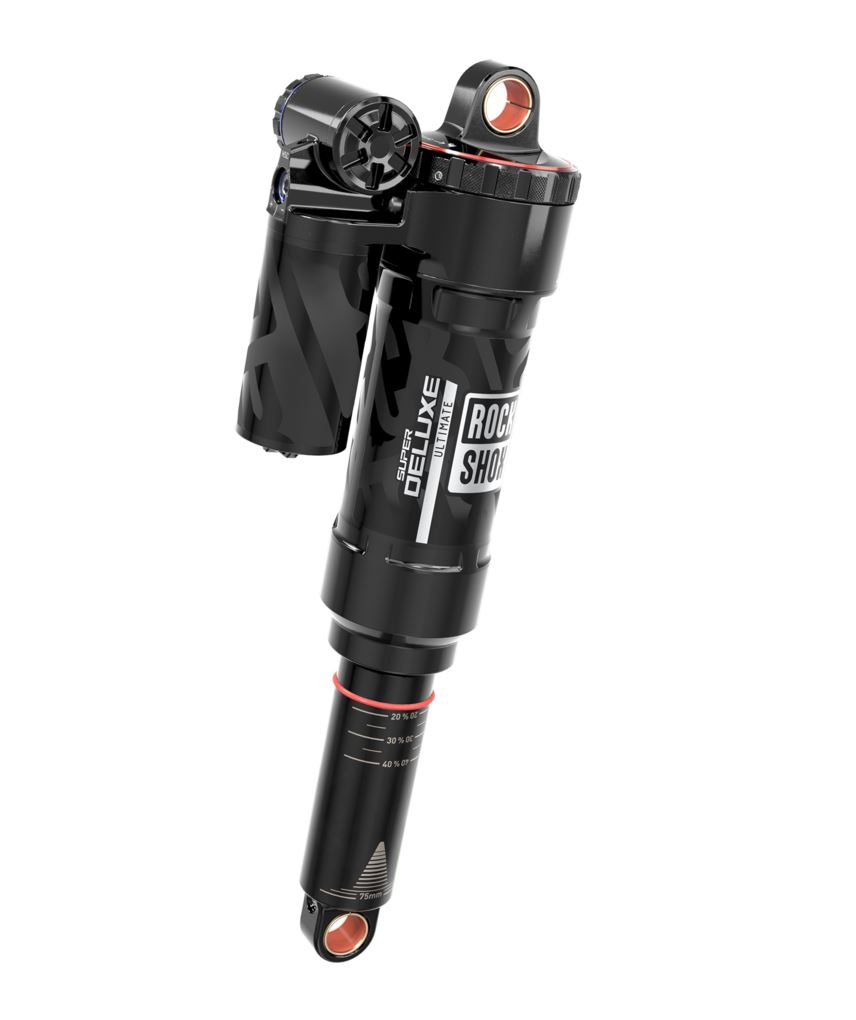

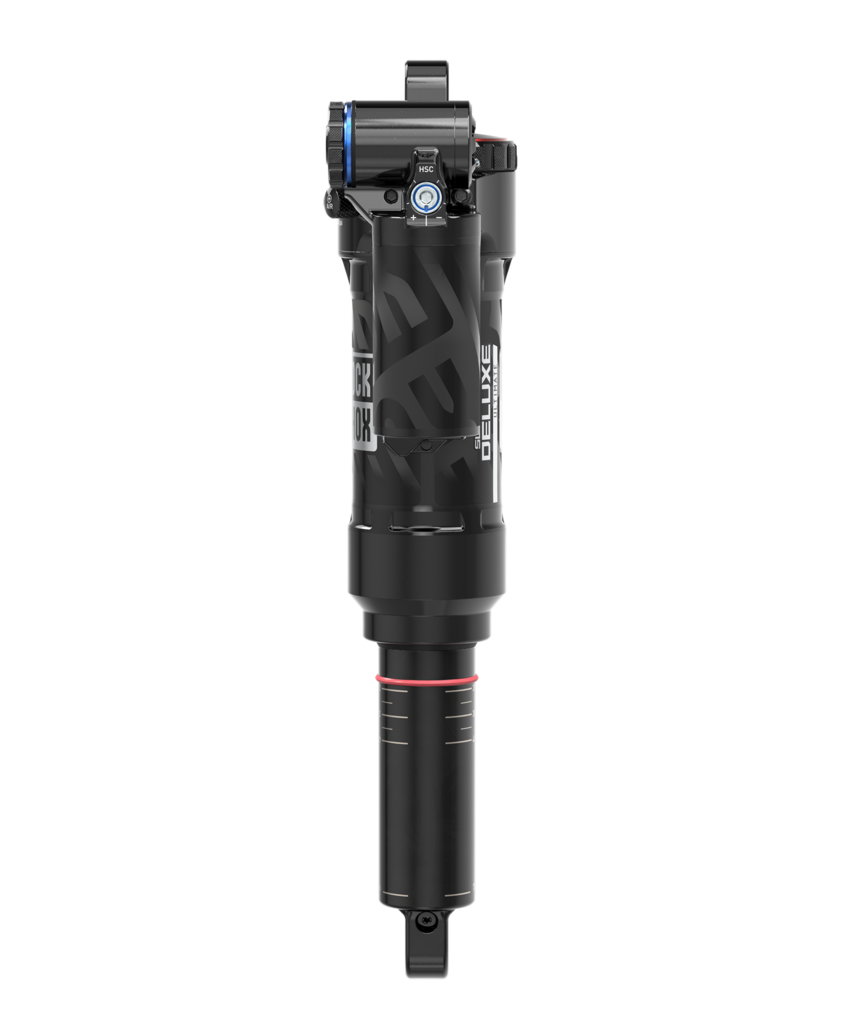

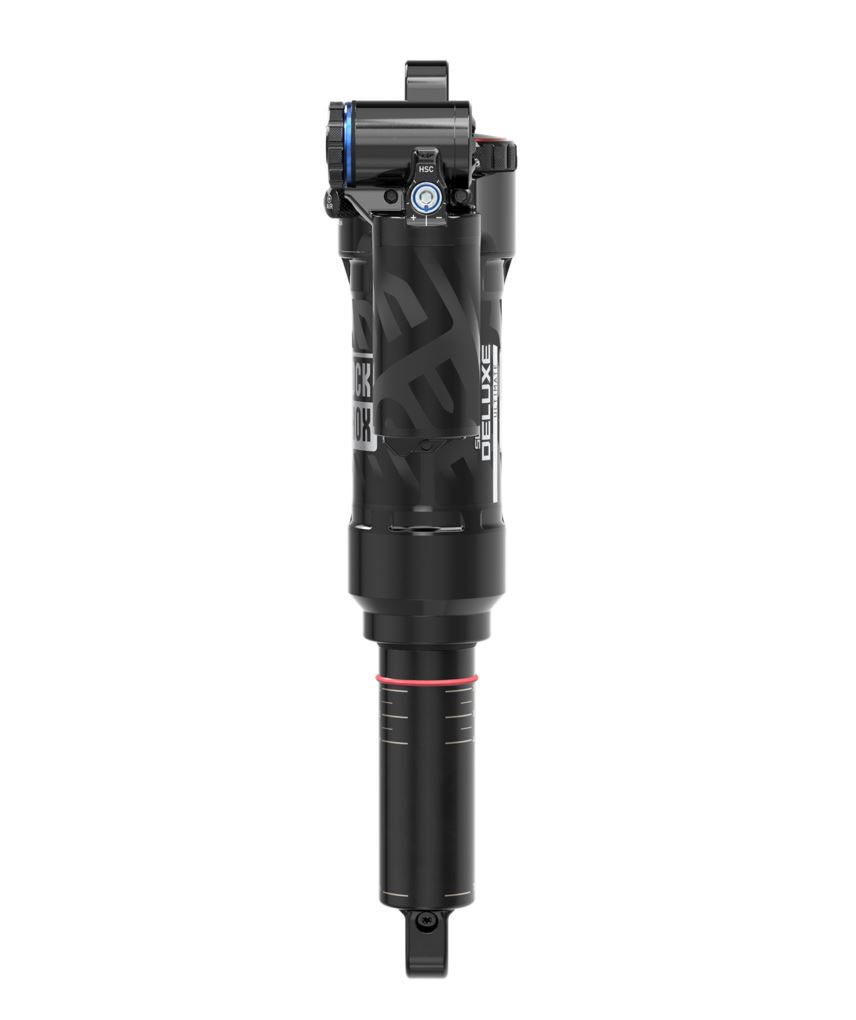

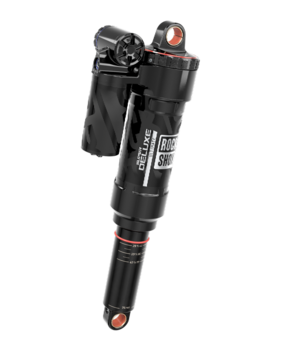

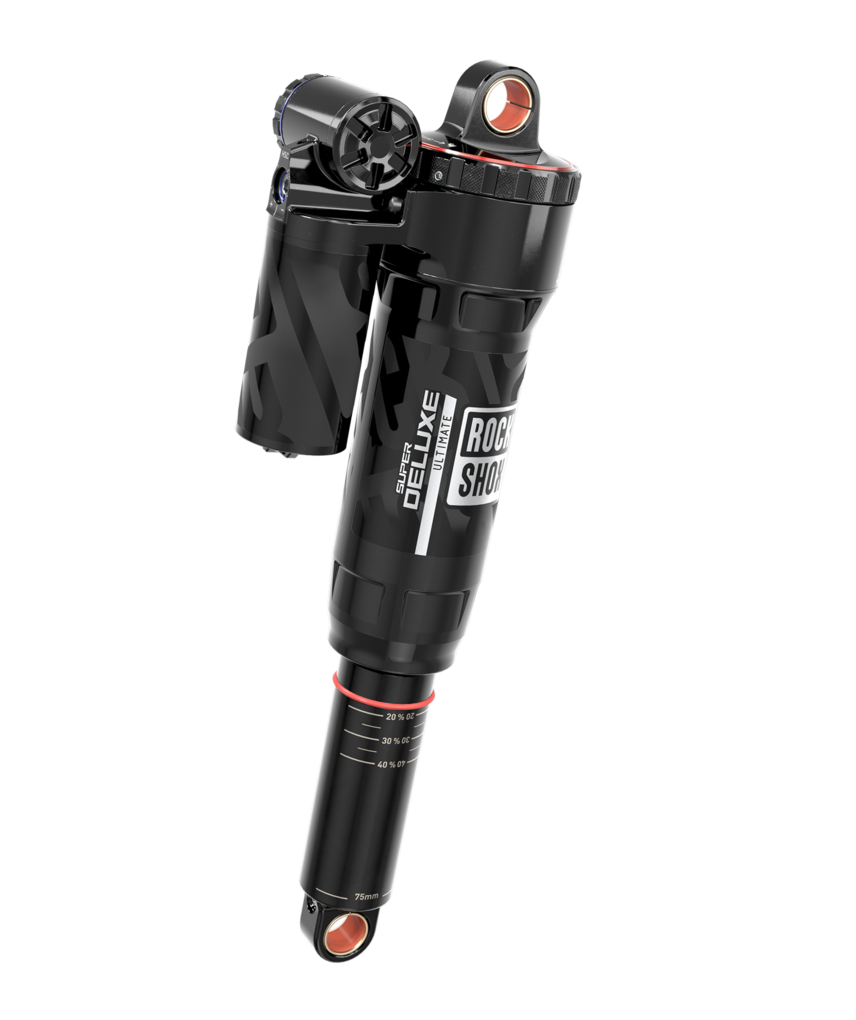

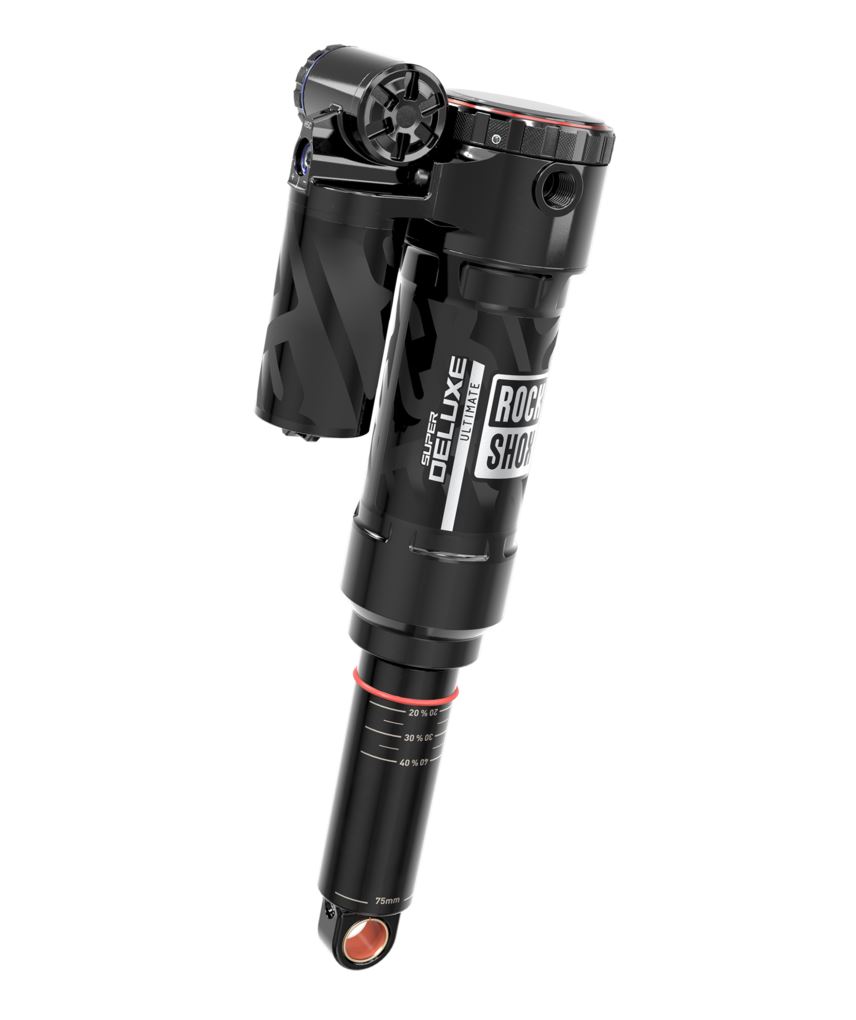

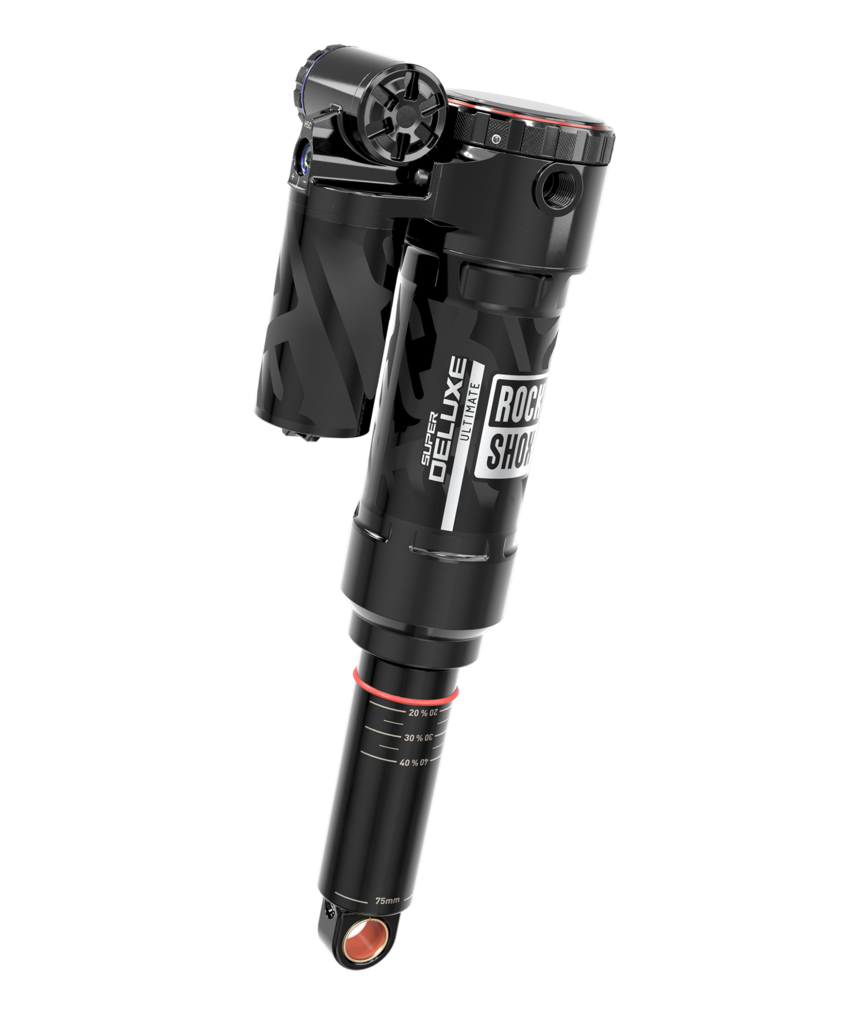

Super Deluxe Ultimate DH

Msrp

$580

Model ID

RS-SDLX-ULDH-C1

{{spec.DisplayName}} - {{spec.Value}}

Ships after .

Currently out of stock until .

Description
Find a Dealer

If you're pinned to win, the Super Deluxe Ultimate DH is the shock of choice for the podium. This is the most advanced shock we've ever made, packed to the hilt with more options for fine-tuning adjustments that meaningfully improve suspension performance. Debuting the next revolution in damper technology, our new RC2 damper is only found at the Ultimate level and features externally adjustable, truly independent High and Low Speed Compression along with an increased range of rebound adjust. Riders can fine-tune damping from the factory base tune for a more personalized feel while factoring in ride style and terrain. Super Deluxe Ultimate DH sets the new benchmark.

Read More
Read Less
Features
  • NEW RC2 Damper with externally adjustable independent High and Low Speed Compression damping - designed to match perfectly with the Charger 3 fork damper
  • NEW DebonAir™ air spring with two new air can options allows you to tune the negative and positive air volume to find the perfect match for every bike
  • NEW HotDog Piston™ features the same Low Speed Compression control that Super Deluxe is known for but with less High-Speed Compression, allowing the wheels to get out of the way in rough terrain while providing more grip in high-speed chatter
  • NEW Castled bottom-out bumper reducing harsh bottom-out allowing you to tune the air spring to maximize grip, comfort, and control
  • NEW Optional Hydraulic Bottom-Out control provides increased damping to prevent harshness for a bottomless feel
  • NEW Increased rebound to 15 clicks providing more range and fidelity
  • NEW Increased bushing overlap improves small bump performance and grip
  • NEW Premium graphics keeping things fresh
  • NEW Optional Signature Color matching decals available
  • Separate and independent Open and Pedal pistons tuned exactly for your ride
  • Maxima Plush damping fluid reduces friction and silences damper noise
  • Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
See more features
See less features

Some variations of this product featured on this page are not available for purchase and are installed on bicycles as complete bikes only. See your dealer for details.

Technology

Specifications

Eye to eye / Stroke 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 250x67.5, 250x70, 250x72.5, 250x75
Rebound tune Digressive, Linear
Compression tune H, L, L1, LC, M
Lockout force n/a
Shaft Eyelet Bearing, No Bushing, Standard, Trunnion
Body Eyelet Bearing, No Bushing, Standard
Damper Type RC2, RC2 Adj. Hydraulic Bottom Out
E-Bike Approved E-bike Approved
