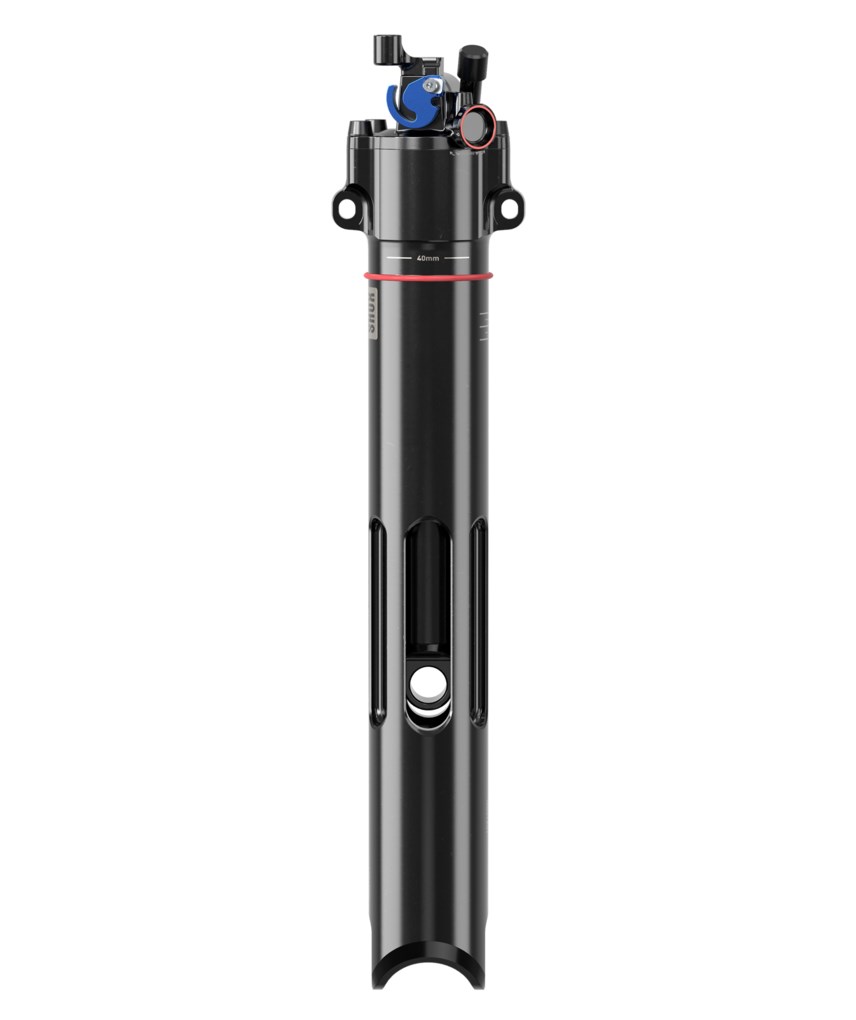

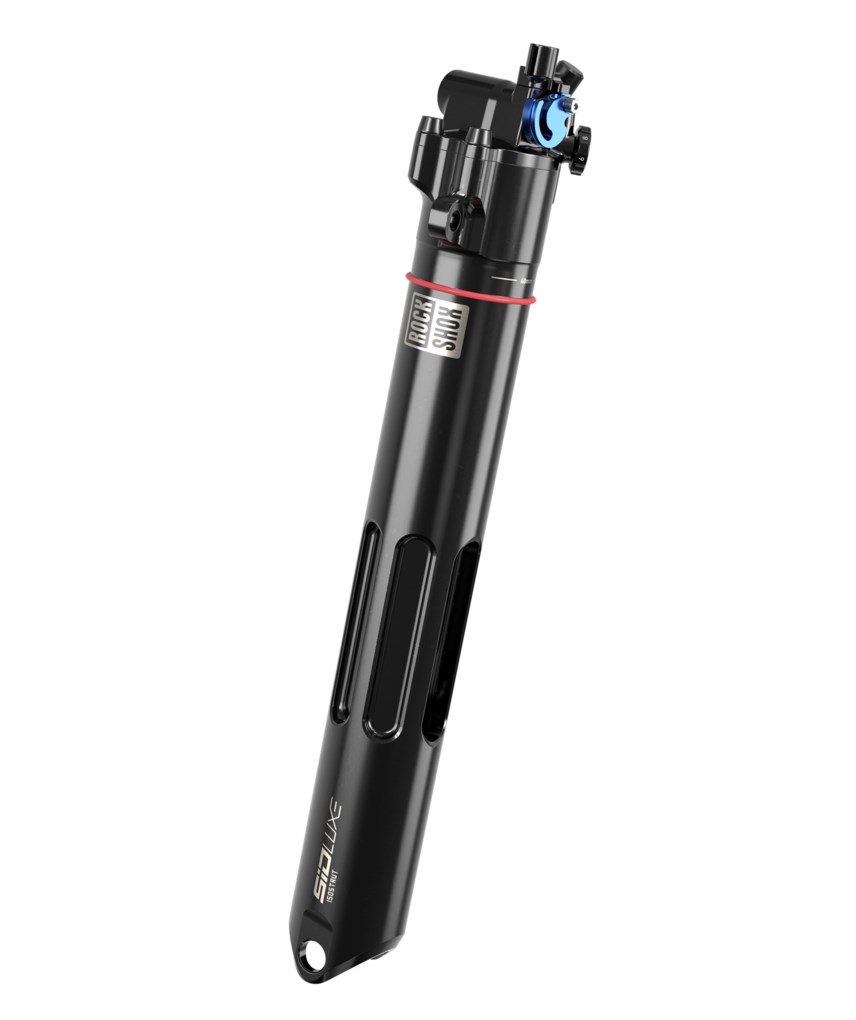

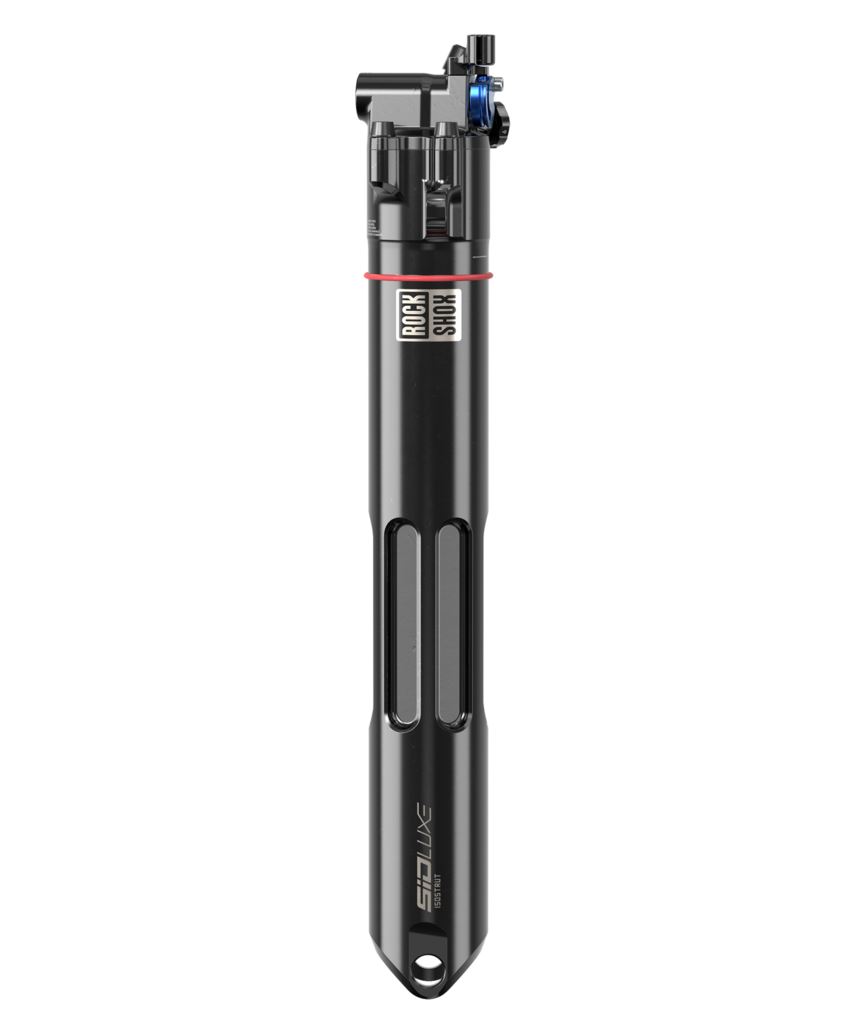

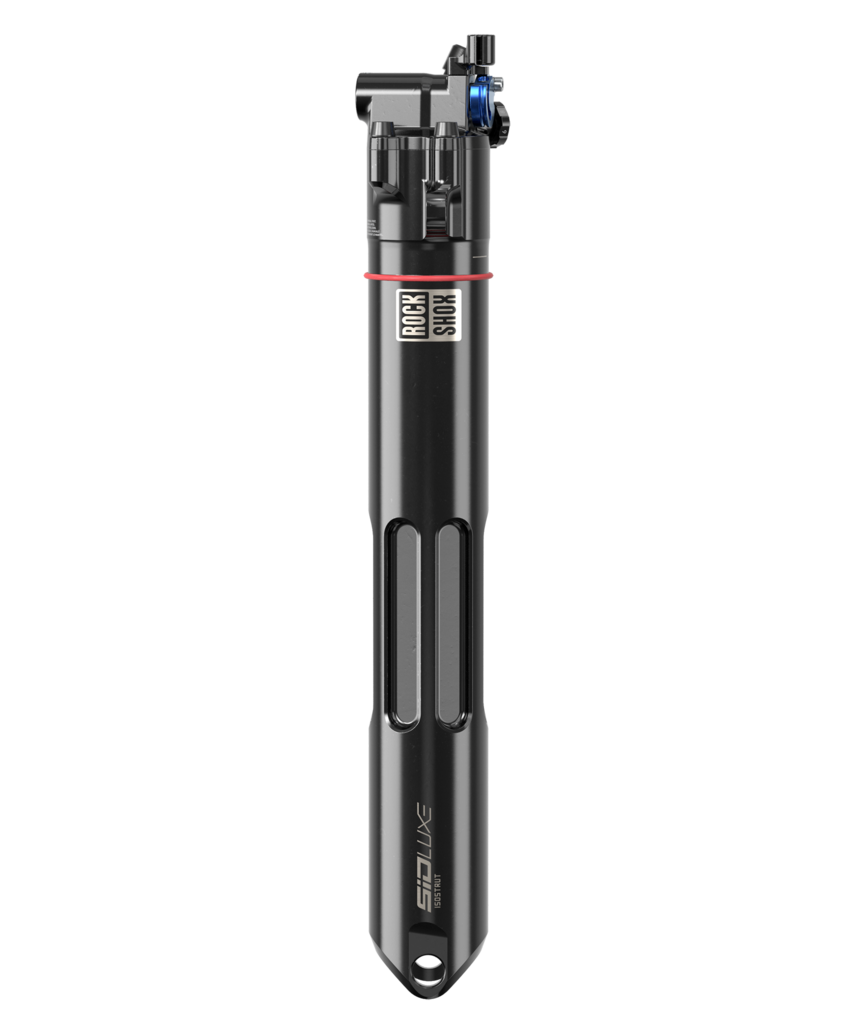

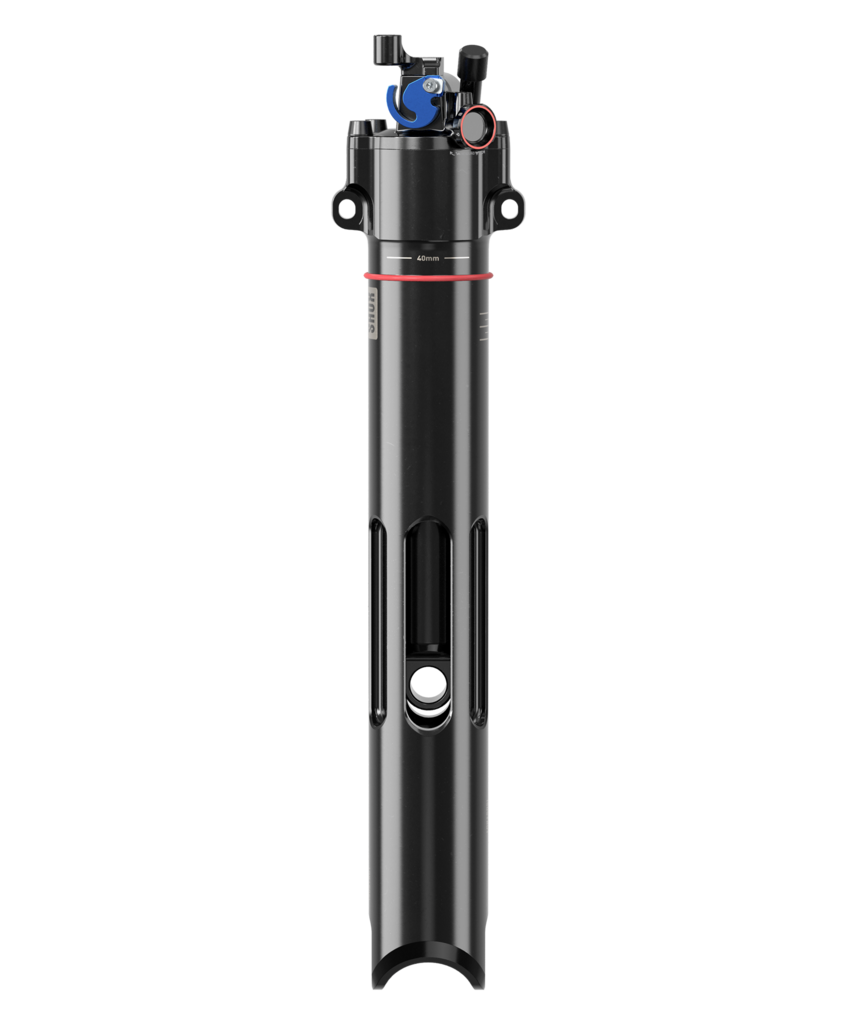

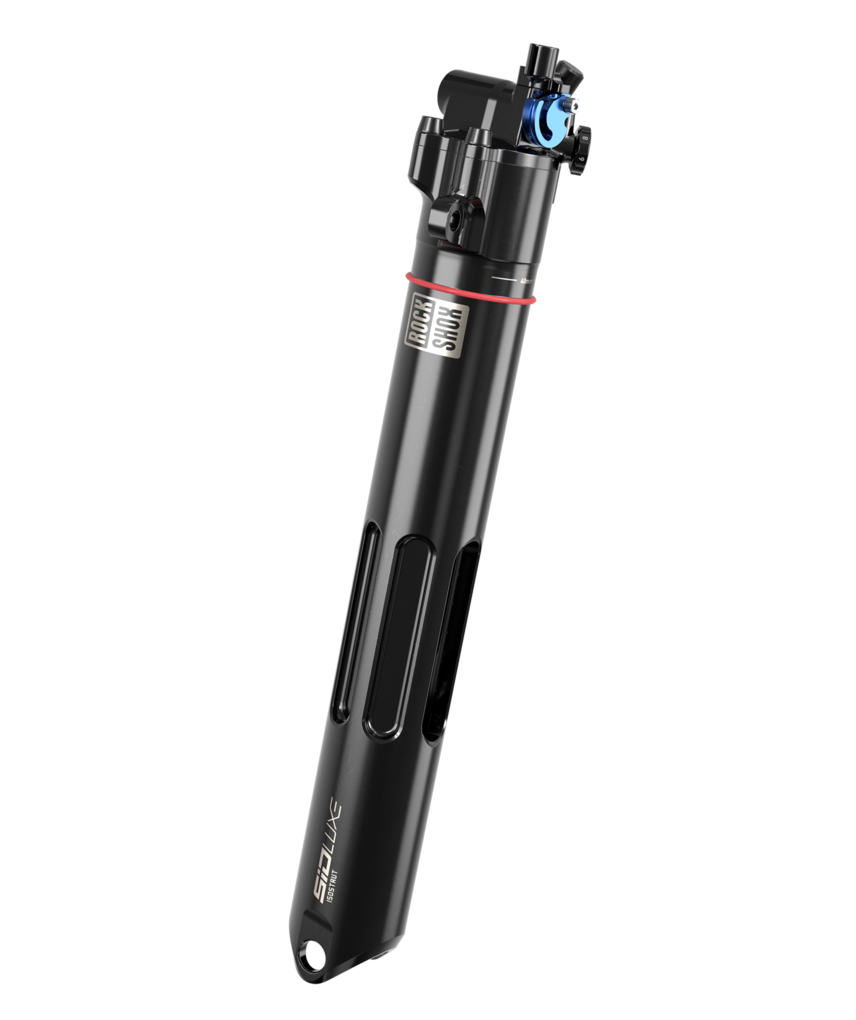

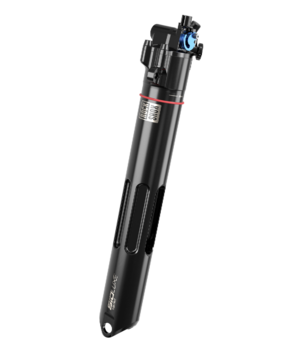

SIDLuxe IsoStrut

Model ID


{{spec.DisplayName}} - {{spec.Value}}

Ships after .

Currently out of stock until .

Find a Dealer

The all-new SIDLuxe IsoStrut is a frame-integrated rear shock built specifically for the Trek Supercaliber. Designing the rear suspension as a complete system maintains the frame’s structure and stiffness while saving weight with fewer pivots than conventional full-suspension bikes. SIDLuxe IsoStrut offers two compression settings: Open and a rock-solid Lock. When SIDLuxe IsoStrut teams up with Supercaliber, you get 80mm of race-ready suspension for whatever the track throws at you.

Read More
Read Less
  • 80mm of tunable suspension
  • 38mm strut tube provides stiffness and support to keep friction to a minimum
  • Two-position damper (Open and Lock) with the TwistLoc Ultimate remote
  • Tunable air spring with Bottomless Tokens
  • Fully-checked compression circuit tuned to eliminate pedaling bob
  • See your exact Rebound setting with a numbered Rebound knob
  • Easily set your air spring with the sag gradients marked on the strut
  • Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances fork performance, ride after ride
See more features
See less features

Some variations of this product featured on this page are not available for purchase and are installed on bicycles as complete bikes only. See your dealer for details.



Eye to eye / Stroke 239X40
Damper Type RL3, RLR
Rebound tune R57, R81
Compression tune C25, C27
Lockout force X6, X8
Shaft Eyelet n/a
Body Eyelet No Bushing
E-Bike Approved E-bike Approved


Installation. Service. Compatibility. Find all the documentation needed to set up, use, and maintain your components in the SRAM Service hub.
