Description
Find a Dealer

There’s a reason everyone loves coil—the feel is unmistakable—supple off the top, supportive through the mid-stroke, and backed by a large bottom-out bumper—giving you unwavering consistency and predictability. Engineered to work as a system with your RockShox fork damper, the RT damper’s new main piston compression tunes provide mid-stroke support, while an intuitive threshold lever makes climbing no big deal. Distilling decades of coil dominance into a shock built for today’s enduro, E-MTB, and downhill bikes, Vivid Coil Select carries the unmistakable heritage of coil into a new era of performance.

Read More
Read Less
Features
  • NEW RT damper providing a threshold lever for climbing efficiency
  • NEW Base valve with 40% reduction in IFP forces, making it the most supple shock on the market while maintaining perfect traction
  • NEW Main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support
  • 20 clicks of Rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights
  • 8x30 Bearing Adapter available for all standard eyelets, configured as hardware (upcharge applies)
See more features
See less features

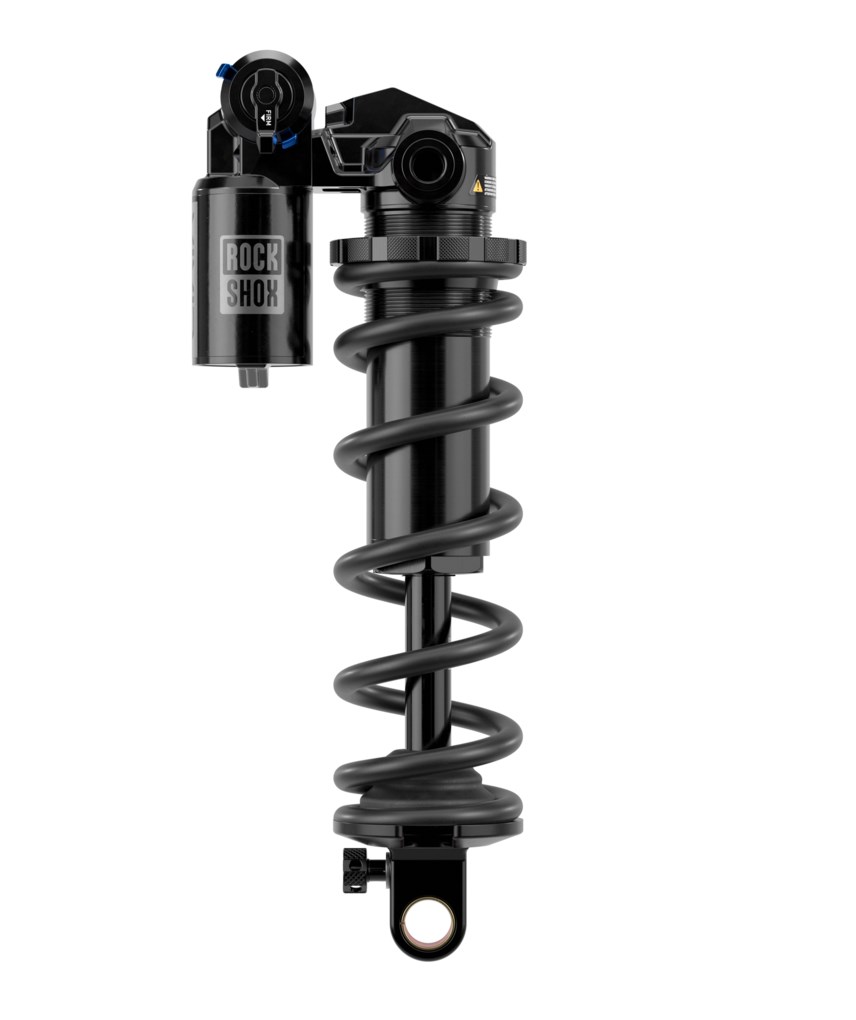

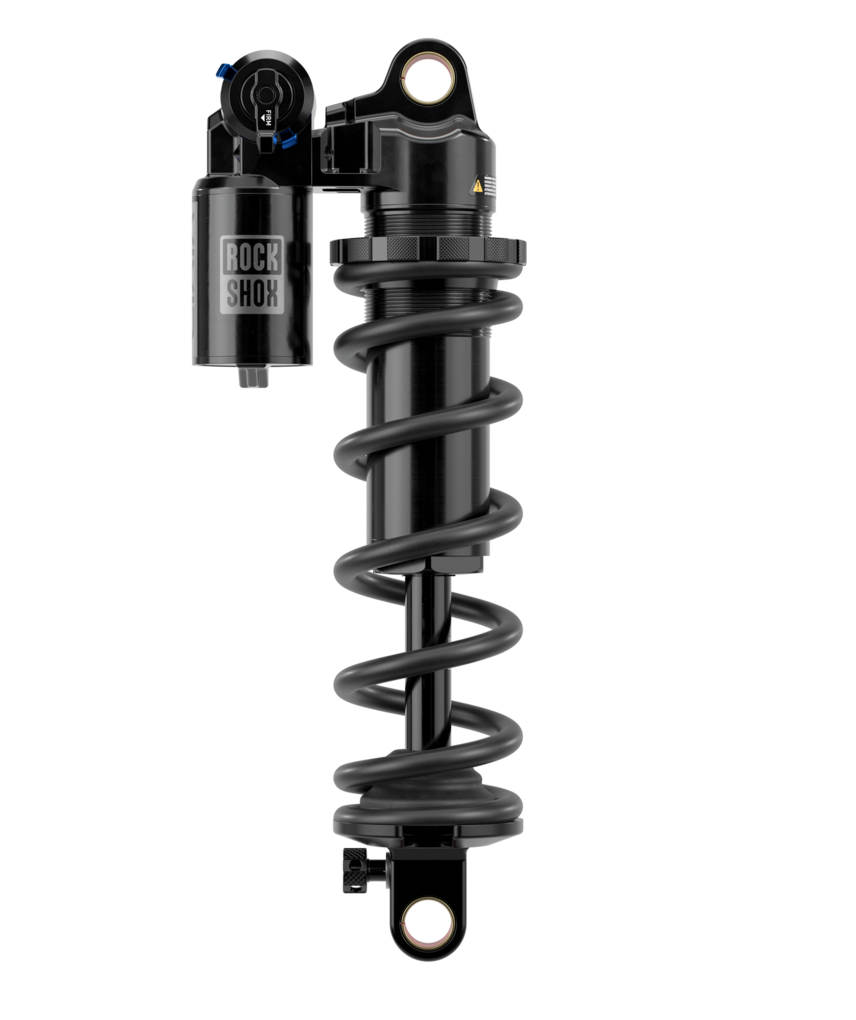

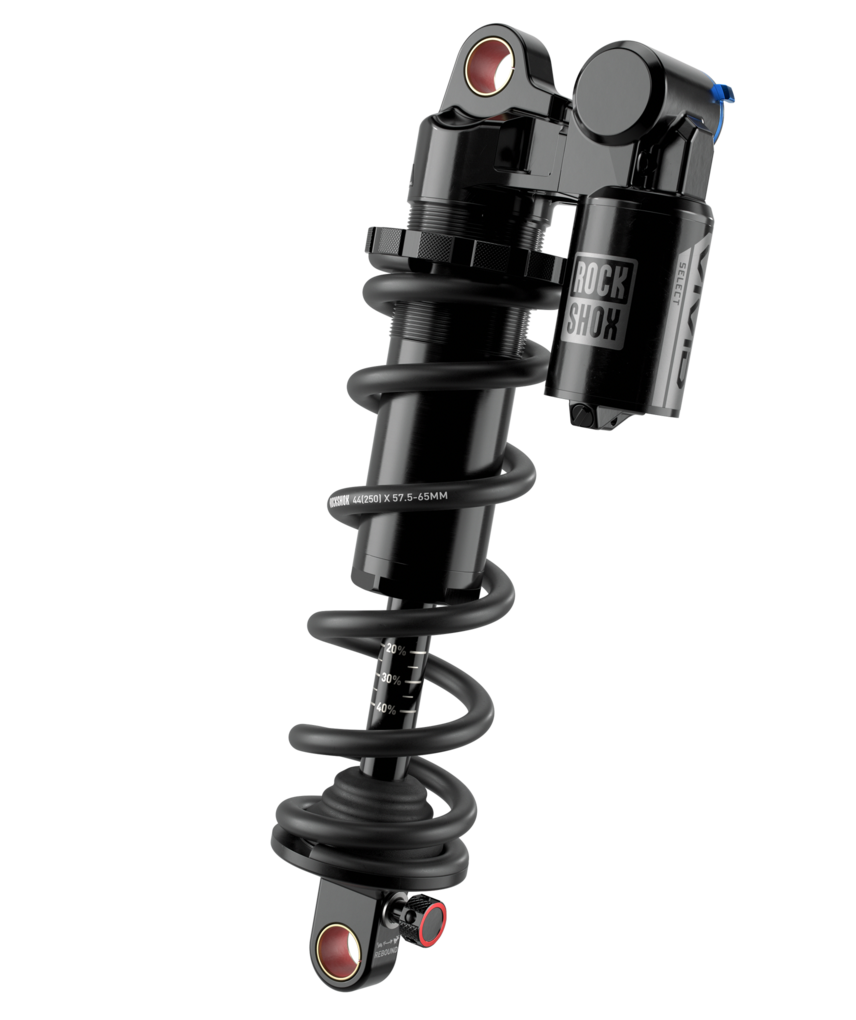

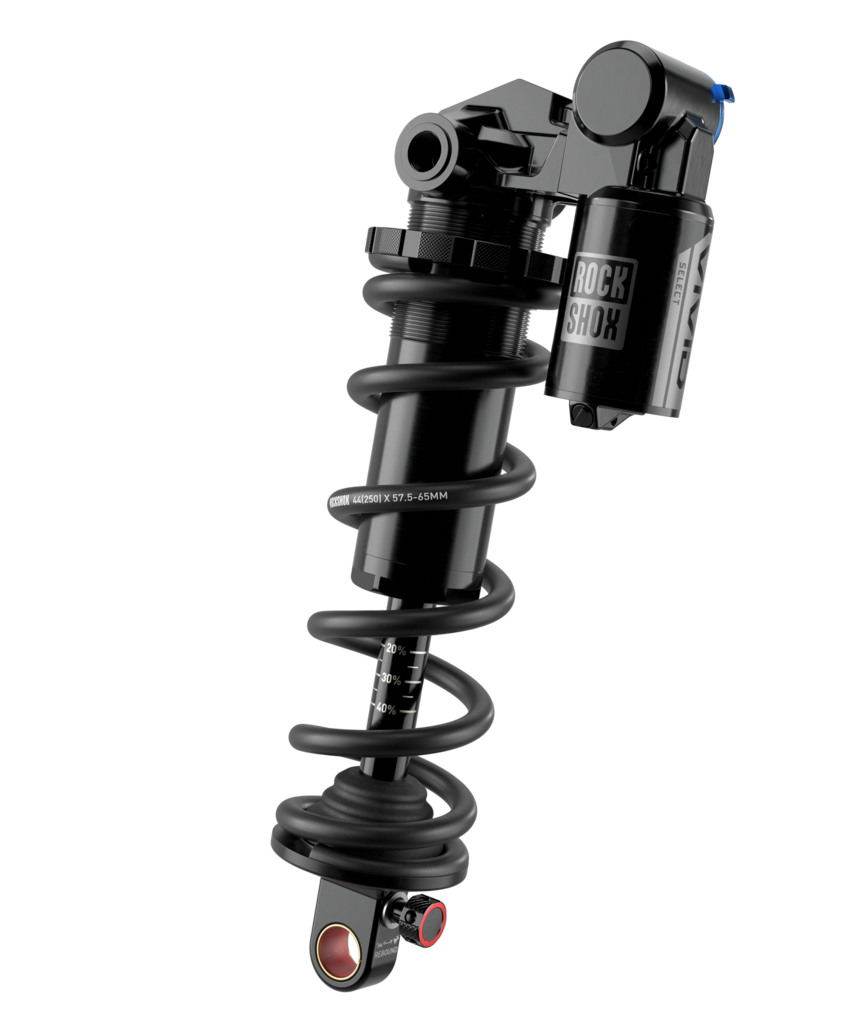

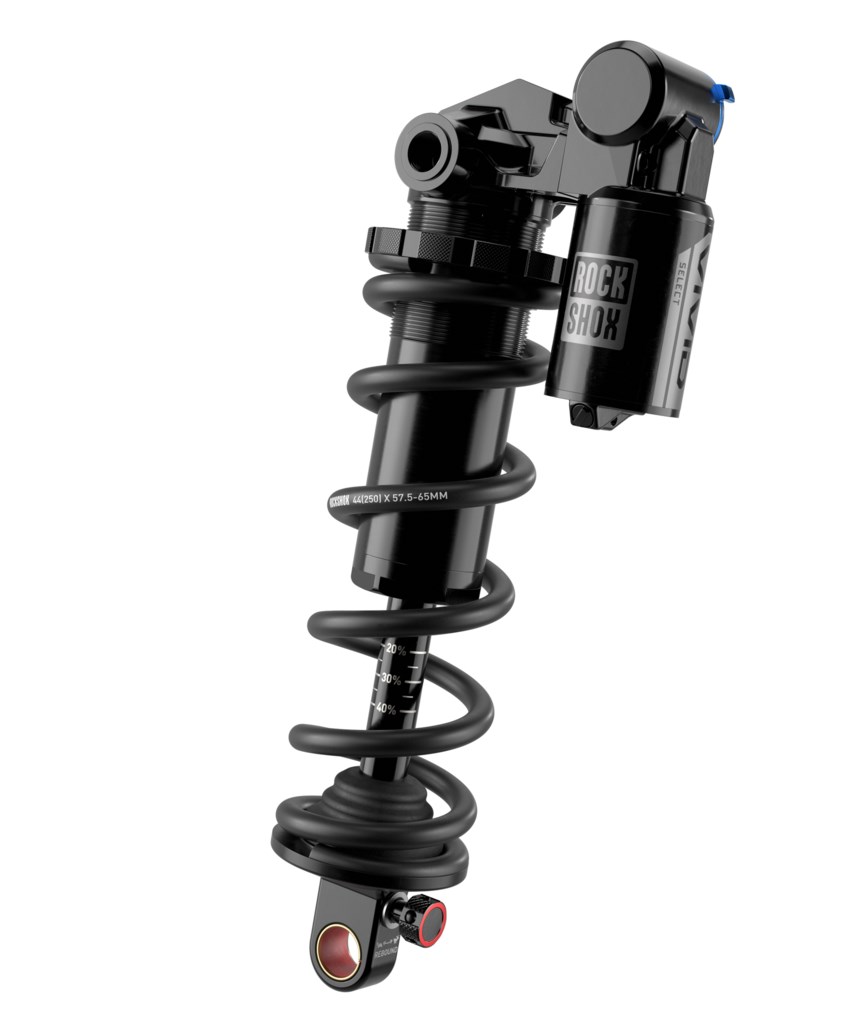

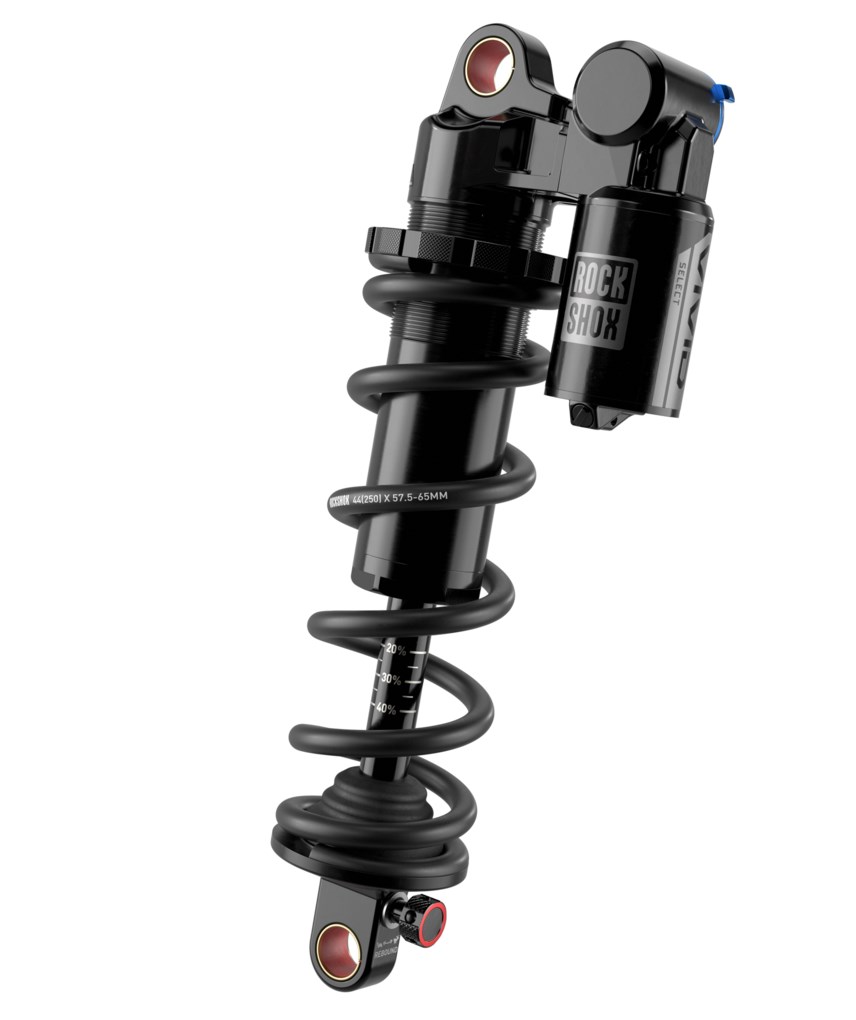

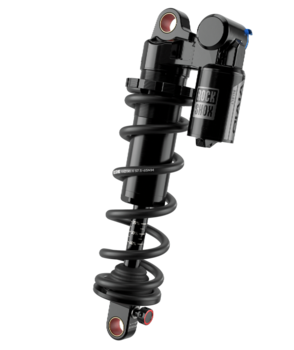

Vivid Coil Select

Specifications

Eye to eye / Stroke 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Damper Type RT
Rebound tune R25, R55
Compression tune C22, C26, C30, C34, C37, C40, C43
Lockout force X05, X25, X45
Shaft Eyelet No Bushing, No Bushing - 270 Deg Rotation, No Bushing - 90 Deg Rotation, Standard, Standard - 180 Deg Rotation, Standard - 75 Deg Rotation, Standard - 90 Deg Rotation
Body Eyelet No Bushing, Standard, Trunnion
E-Bike Approved E-bike Approved
Bottom Out n/a
High Speed Tune H1
