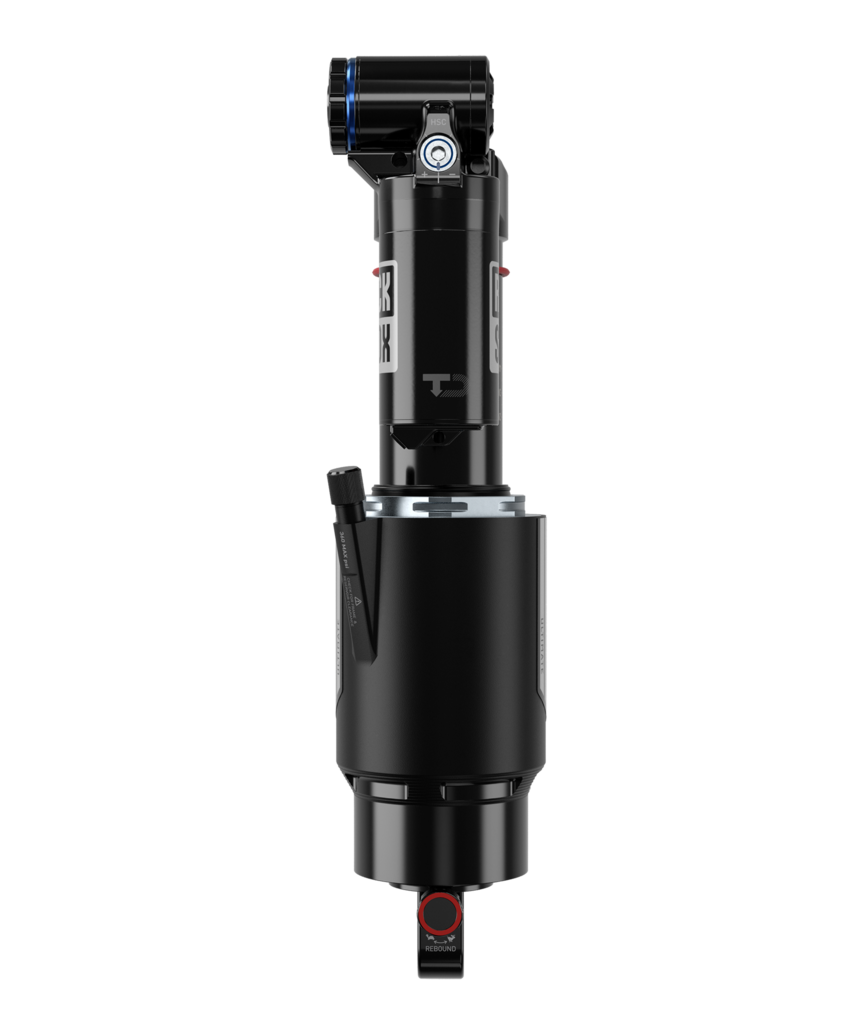

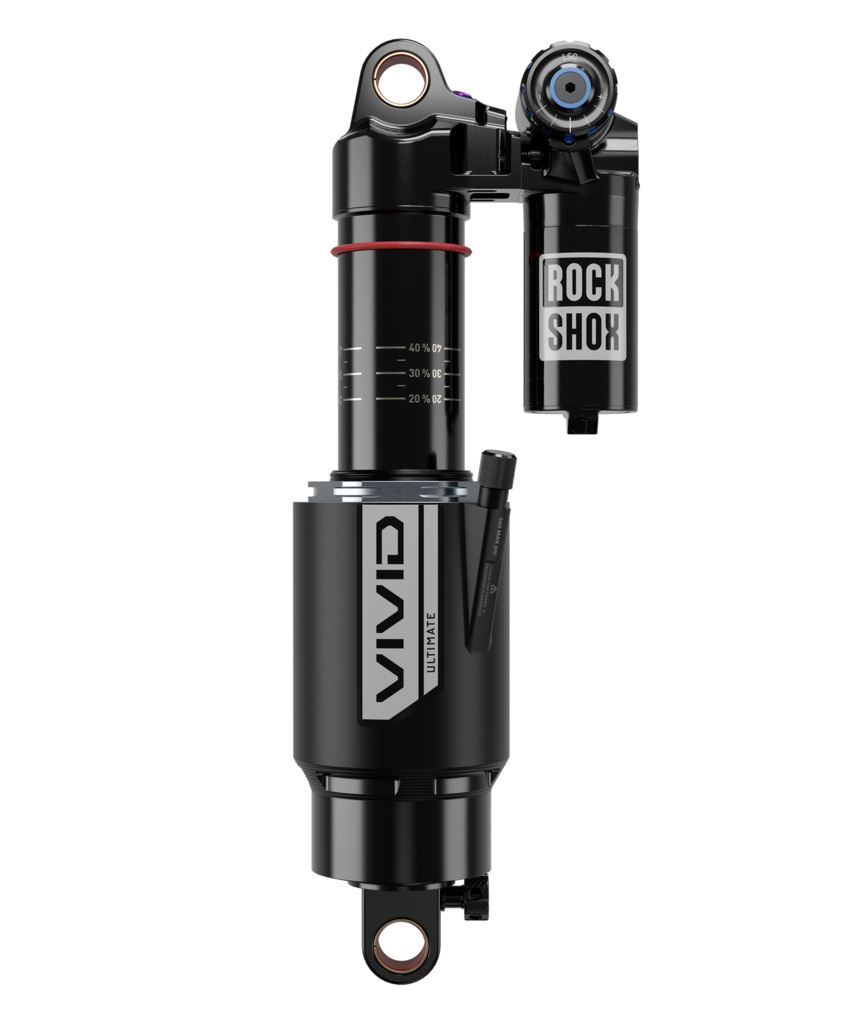

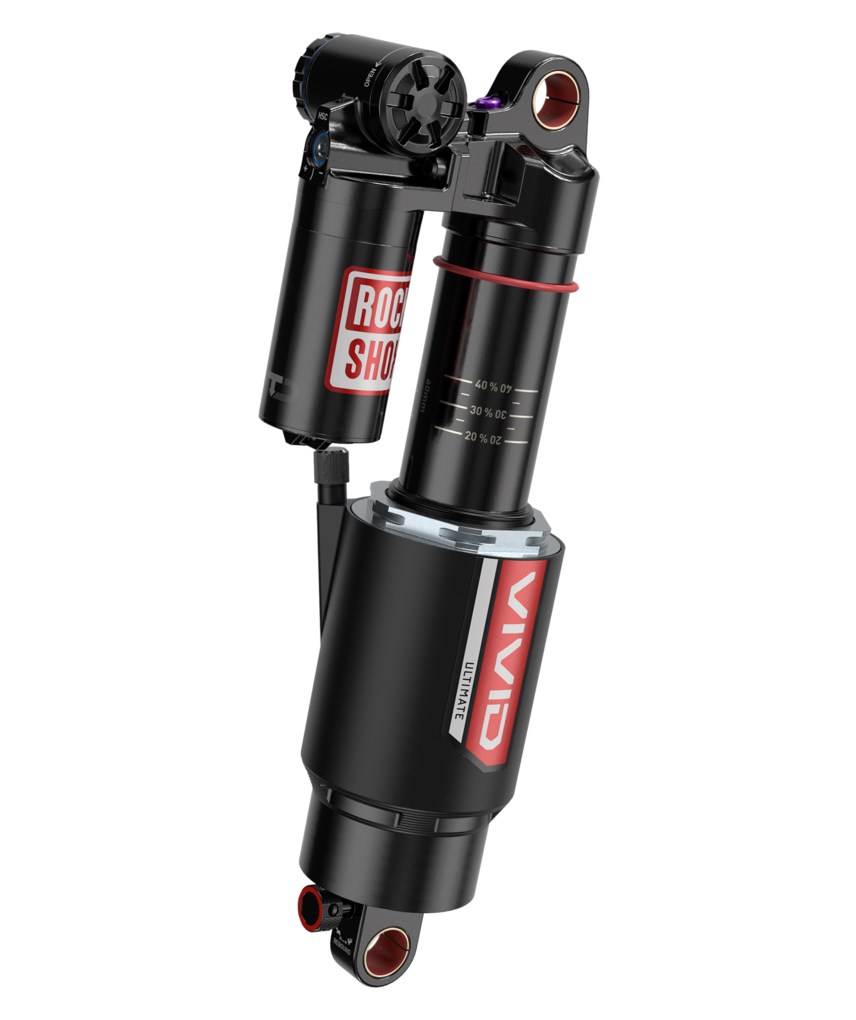

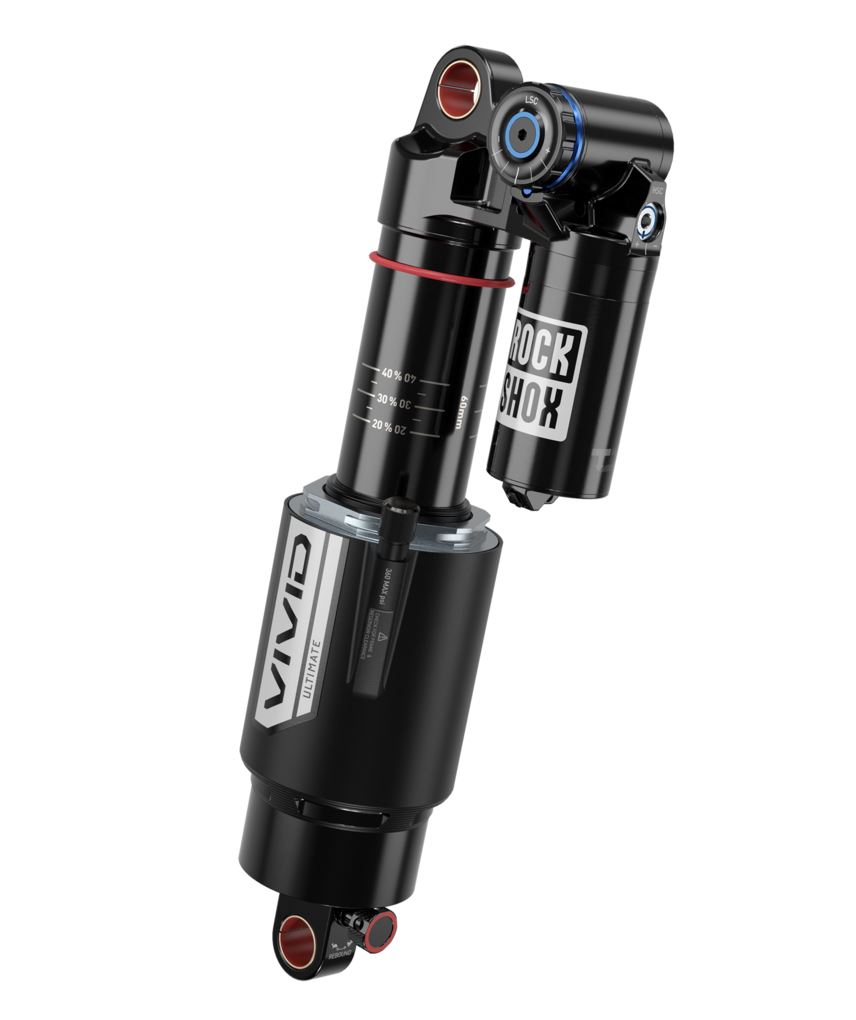

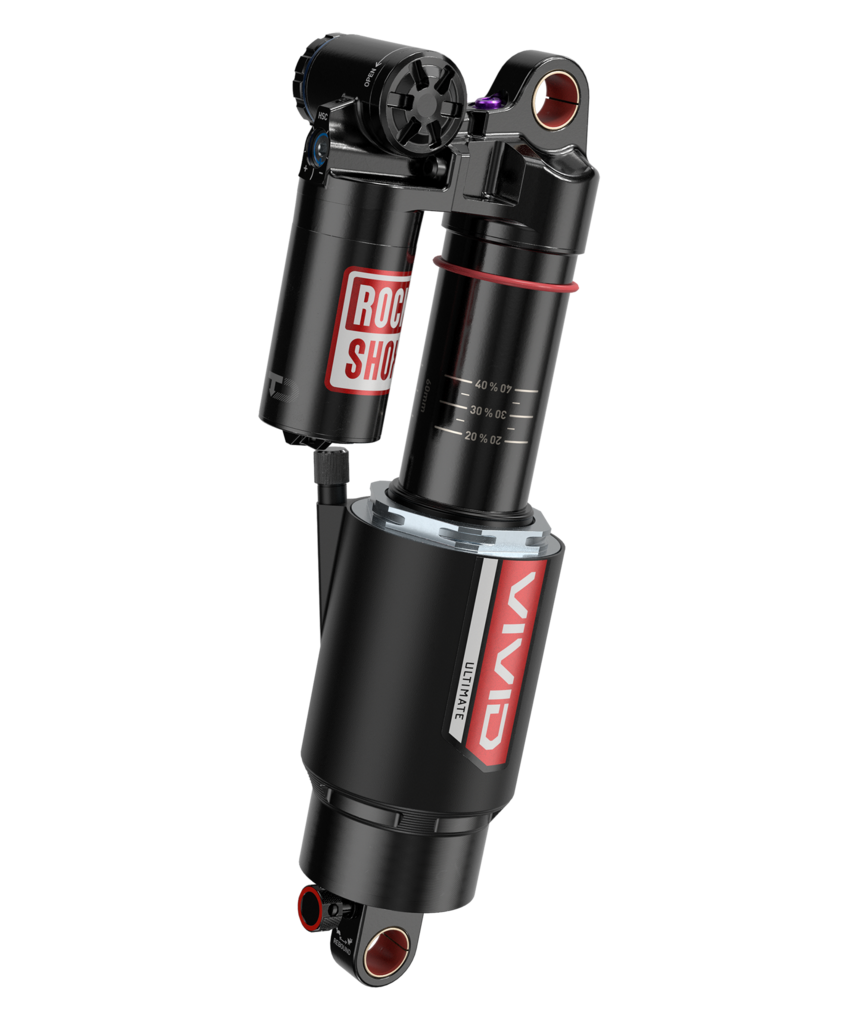

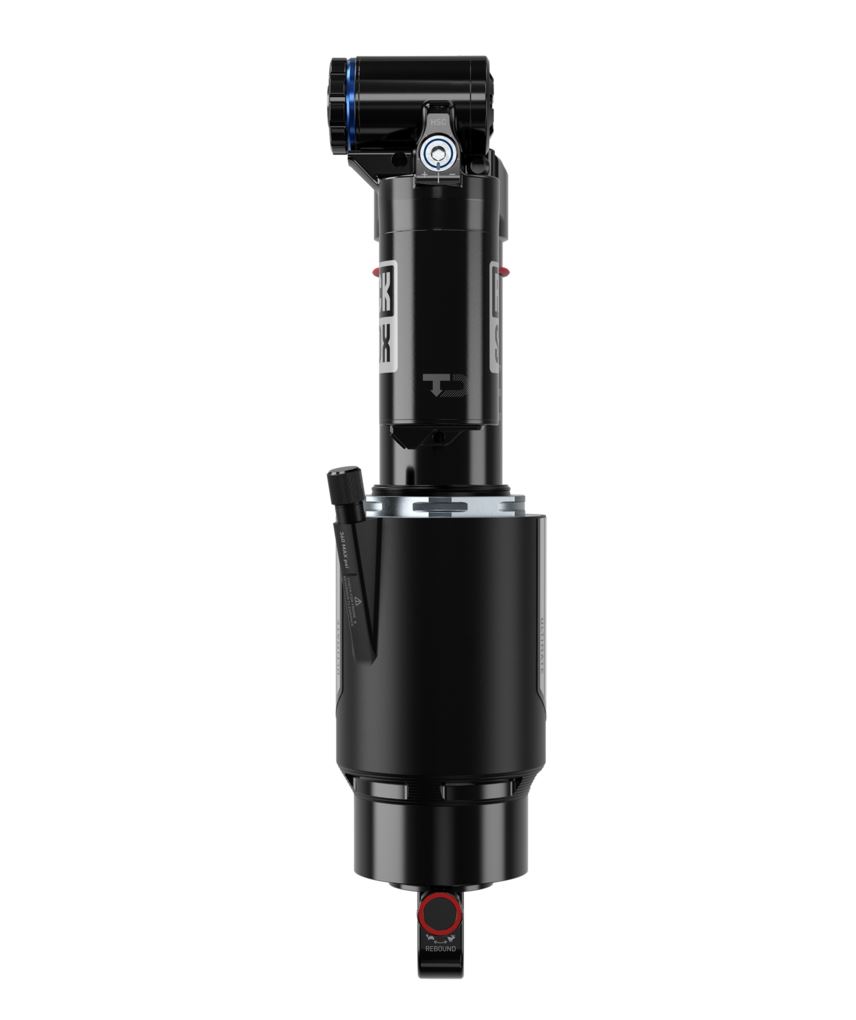

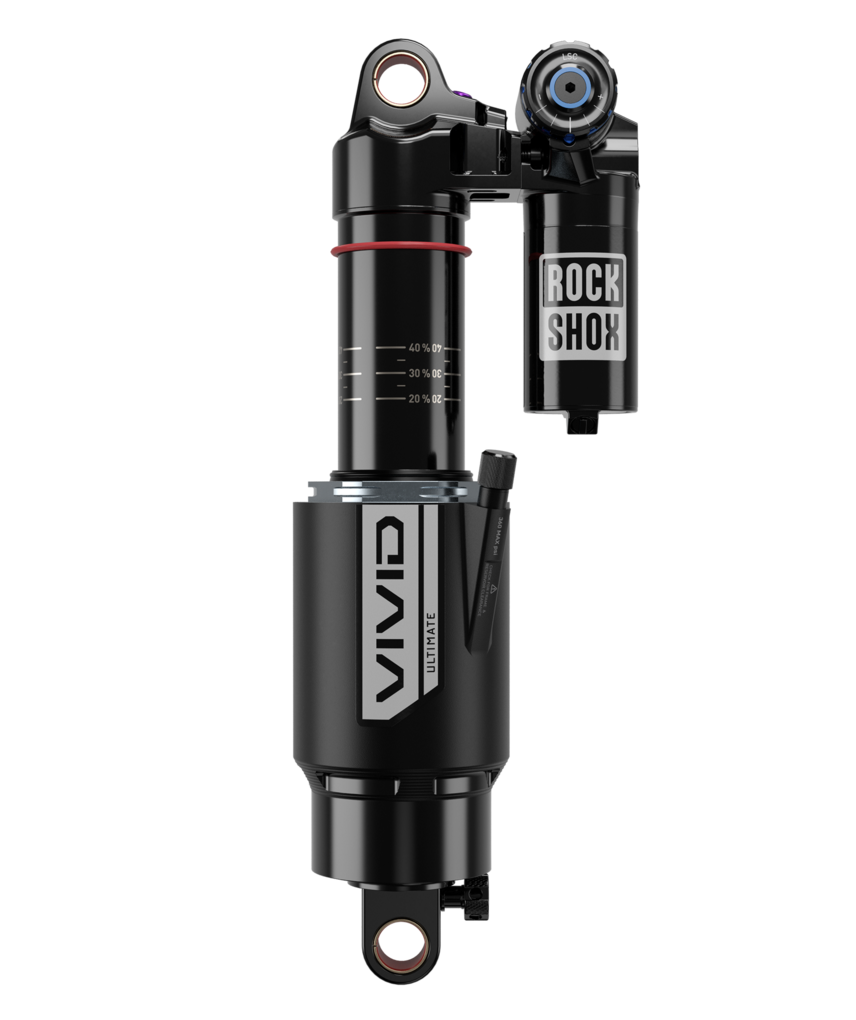

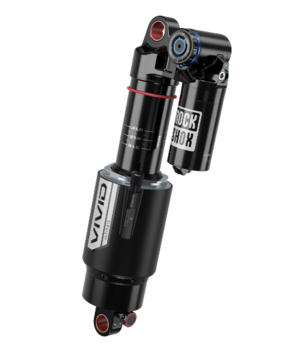

Vivid Ultimate DH


$699 - $729

Model ID


{{spec.DisplayName}} - {{spec.Value}}

Ships after .

Currently out of stock until .

Find a Dealer

Built purely for downhill performance, Vivid Ultimate DH has unmatched tunability and damping for confidence in even the most technical terrain. With independent High and Low Speed Compression adjustments, Adjustable Hydraulic Bottom Out, Rebound, and an infinitely tunable (and remarkably coil-like) air spring, Vivid Ultimate DH has all the adjustments you need and nothing you don’t. This is the latest chapter in Vivid’s legacy of reliability and suppleness, built to push the limits on everything.

Read More
Read Less
  • NEW TouchDown RC2 damper features sensitivity and suppleness off-the-top while remaining stable and supportive throughout its travel. With added Adjustable Hydraulic Bottom Out to resist harsh hits, this position-sensitive damper offers reliable performance and tunability with energetic responsiveness at every position in the travel.
  • NEW TouchDown RC2 damper features Rebound adjustment with independent High and Low Speed Compression adjustment, without the Threshold lever for true DH performance.
  • The most coil-like air spring we’ve ever built. The latest in DebonAir air spring technology maximizes fine-tuning potential, allowing riders to match positive air volume to any bike. Increased mid-stroke support and off-the-top suppleness create an unparalleled ride feel out on the trail.
  • Adjustable Hydraulic Bottom Out with five compression settings at your fingertips to customize the amount of bottom-out resistance in the last 20% of travel.
  • Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance, ride after ride.
  • 20 clicks of Rebound adjustment offer a wide range of tunability to accommodate all riding styles.
  • The Rebound Knob pulls out to reveal a 3mm hex wrench that can adjust both High Speed Compression and Hydraulic Bottom Out.
  • Service intervals are now boosted to 100 hours of ride time, thanks to an updated dust wiper seal design and increased oil volumes.
See more features
See less features

Some variations of this product featured on this page are not available for purchase and are installed on bicycles as complete bikes only. See your dealer for details.



Eye to eye / Stroke 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Damper Type RC2 Adj. Hydraulic Bottom Out
Rebound tune R25, R55
Compression tune C26, C30, C34, C37
Lockout force n/a
Shaft Eyelet Bearing, No Bushing - 90 Deg Rotation, Standard, Standard - 180 Deg Rotation
Body Eyelet Bearing, No Bushing - 90 Deg Rotation, Standard, Trunnion
E-Bike Approved E-bike Approved
Weight (g) 710
Weight Based On 250x75, standard/standard, no hardware


Installation. Service. Compatibility. Find all the documentation needed to set up, use, and maintain your components in the SRAM Service hub.

Visit product service page


Big, bold, and built to maximize downhill capability and performance. The legendary Vivid has evolved to match everything from downhill to E-MTB to enduro bikes. Dive into Vivid's new TouchDown RC2T damper and our most linear, coil-like air spring to date.

Read the full story



It’s like having a personal tuner in your pocket. RockShox TrailHead App is the starting point to get your suspension dialed in for the perfect ride. Tuning recomendations, upgrade information, and service support all in your hand.
