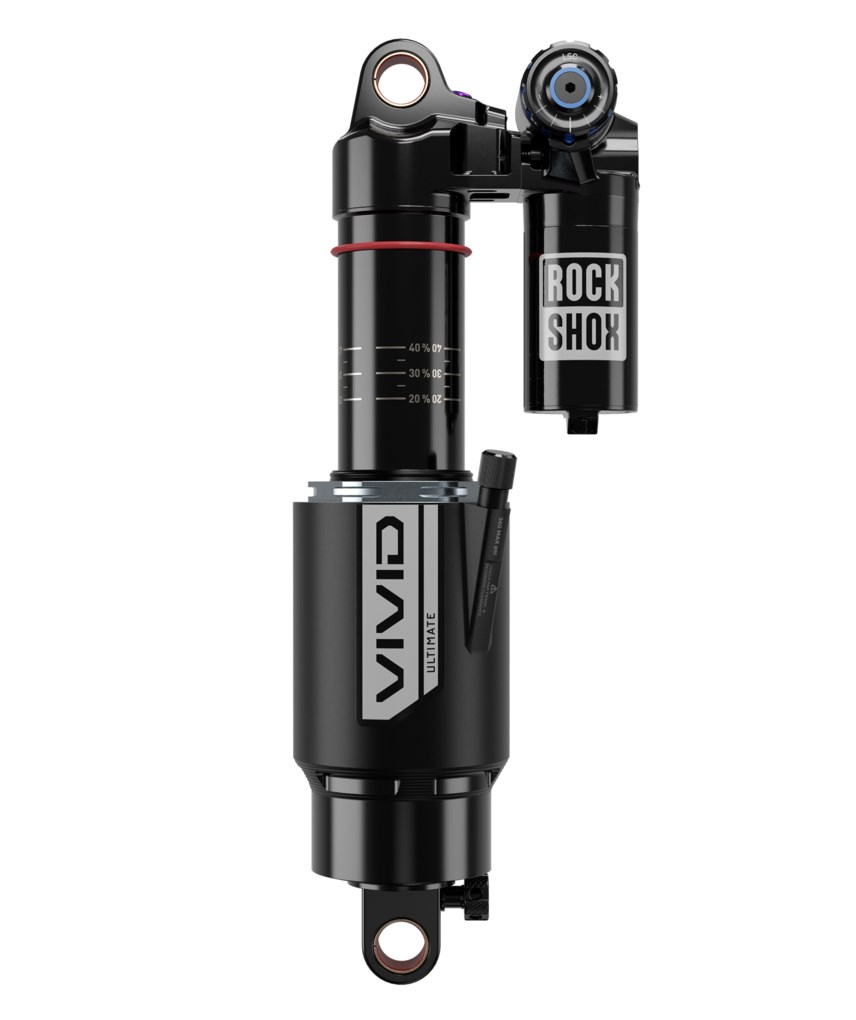

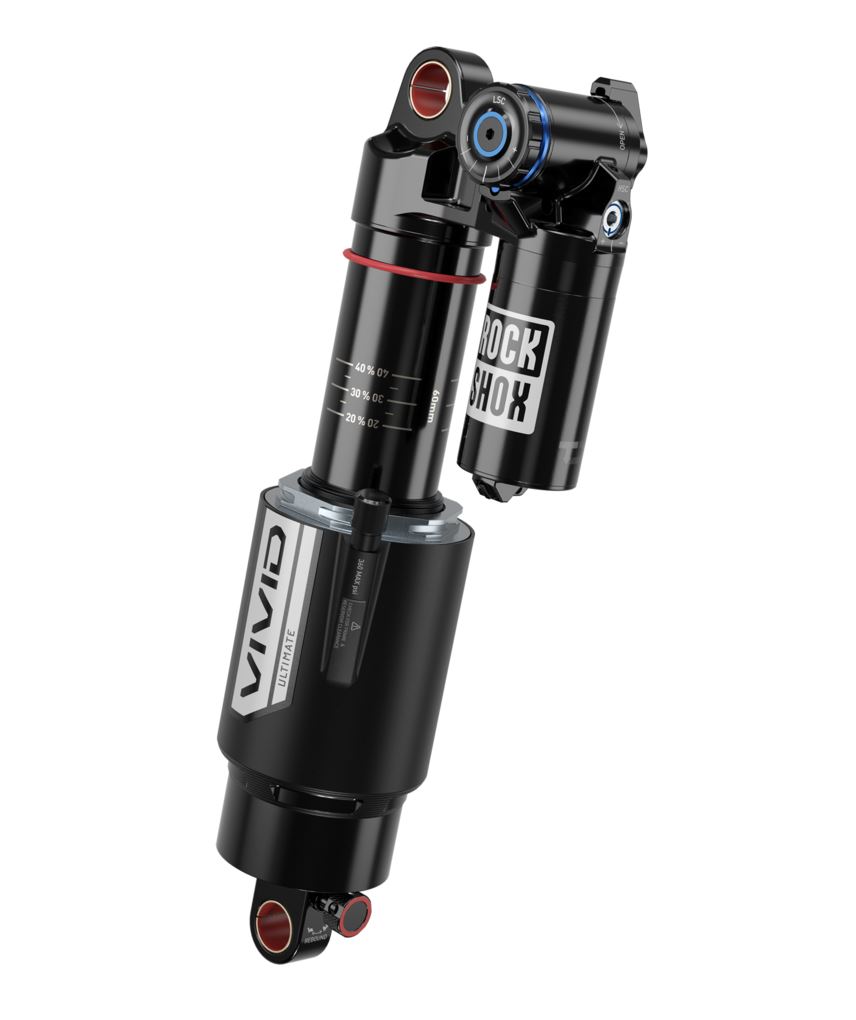

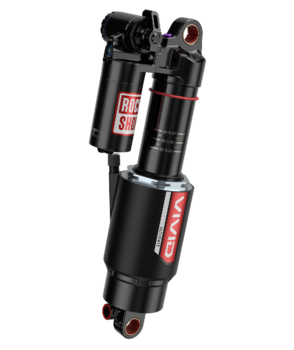

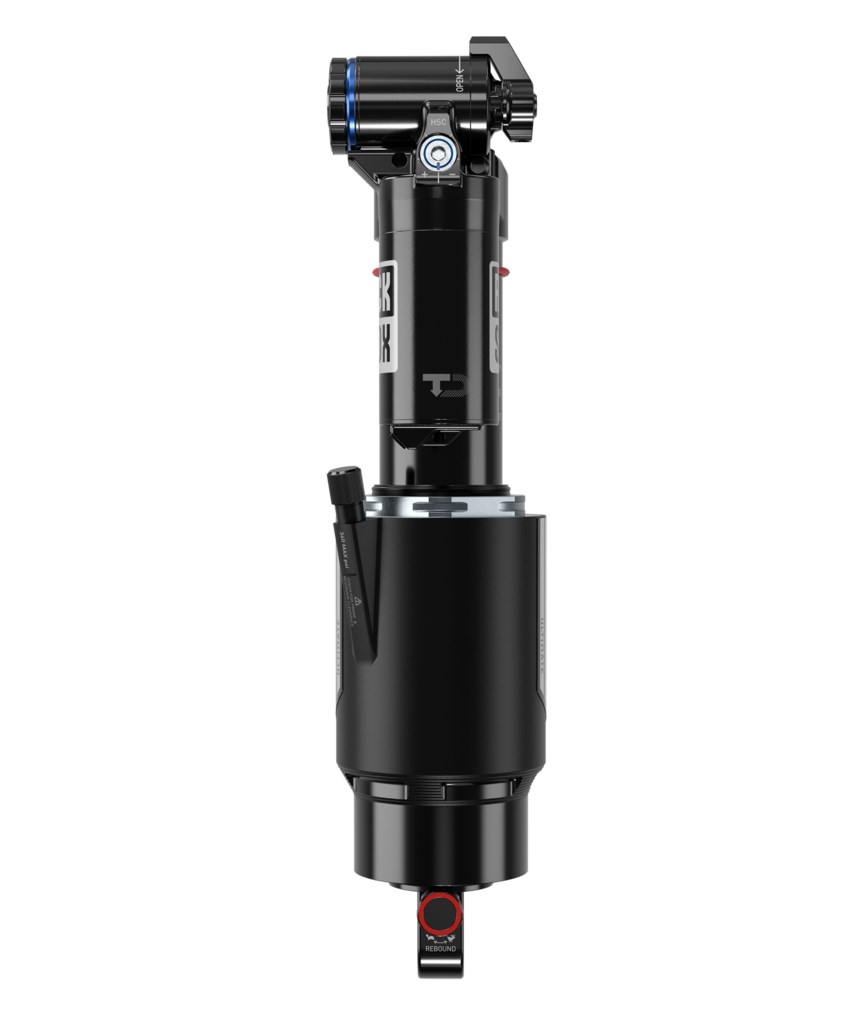

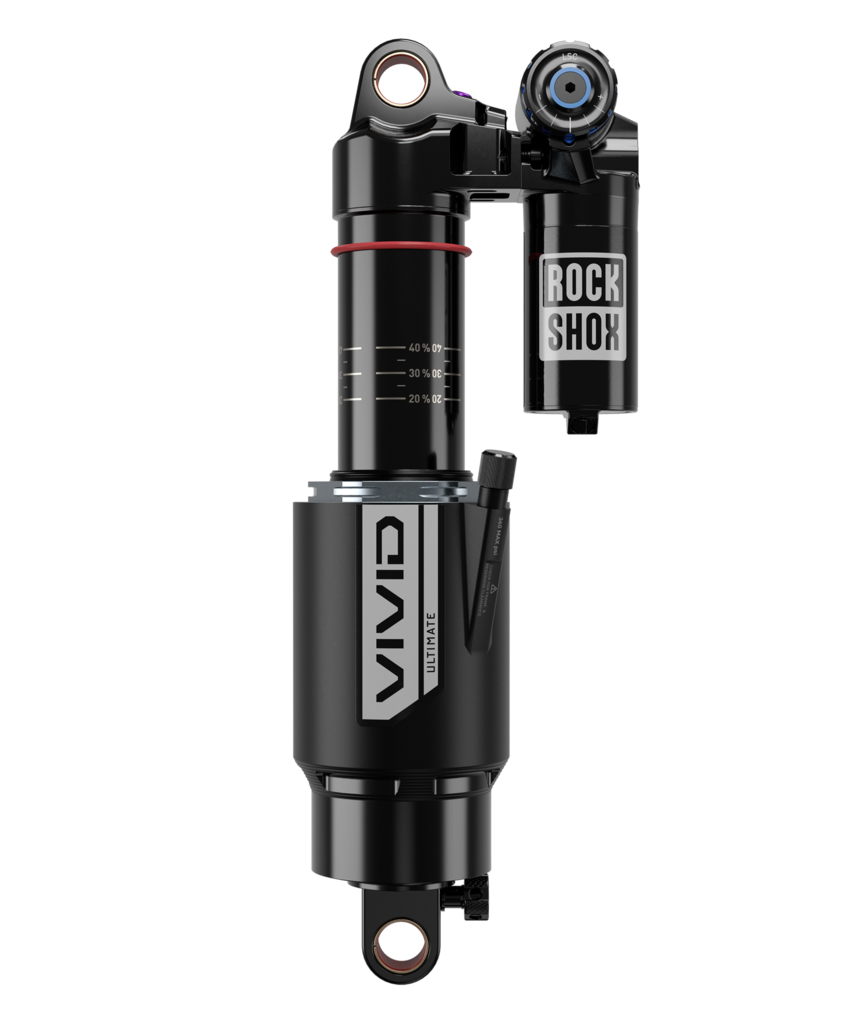

Vivid Ultimate

Msrp

$699 - $729

Model ID

RS-VIVD-ULT-C1

Configure and Buy
{{spec.DisplayName}} - {{spec.Value}}
Find a Dealer
Login to add to Wish List Where to buy

Ships after .

Currently out of stock until .

Description
Find a Dealer

Big, bold, and built for pure downhill performance, Vivid Ultimate has unmatched tunability and damping for confidence in technical terrain. With an air spring that acts like a coil, this is the latest chapter in Vivid’s legacy of reliability and rock-smashing suppleness. This premium rear shock is built to push the limits on everything from downhill to E-MTB to enduro bikes.

Read More
Read Less
Features
  • NEW TouchDown RC2T damper features sensitivity and suppleness off the top while remaining stable and supportive throughout its travel. With added Adjustable Hydraulic Bottom Out to resist harsh hits, this position-sensitive damper offers reliable performance and tunability with energetic responsiveness at every position in the travel.
  • NEW TouchDown RC2T damper features Rebound adjustment, independent High and Low Speed Compression adjustment, and an easy-to-adjust Threshold Lever for added pedaling efficiency.
  • The most coil-like air spring we’ve ever built featuring the latest in DebonAir technology, Vivid’s air spring maximizes fine-tuning potential, allowing riders to match positive air volume to any bike. Increased mid-stroke support and off-the-top suppleness create an unparalleled ride feel out on the trail.
  • Adjustable Hydraulic Bottom Out has five compression settings at your fingertips to customize the amount of bottom-out resistance in the last 20% of travel.
  • The Rebound Knob pulls out to reveal a 3mm hex wrench that can adjust both High Speed Compression and Hydraulic Bottom Out.
  • Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance, ride after ride.
  • 20 clicks of Rebound adjustment offer a wide range of tunability to accommodate all riding styles.
  • Service intervals are now boosted to 100 hours of ride time, thanks to an updated dust wiper seal design and increased oil volumes.
See more features
See less features

Some variations of this product featured on this page are not available for purchase and are installed on bicycles as complete bikes only. See your dealer for details.

Vivid Ultimate

Technology

Maxima Plush Dynamic Suspension Lube

Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.

Learn More

Adjustable Hydraulic Bottom Out

Adjustable Hydraulic Bottom Out is the extra assurance that can make the difference between hitting big air or bailing last minute. Five different compression settings allow you to customize the cushioning you experience upon impact. So go ahead and commit—you’re in for a soft landing.

Learn More

TouchDown

Position-sensitive damping that’s forgiving at the beginning of its travel while staying composed in the middle and end of the stroke.

Learn More

01

Specifications

Eye to eye / Stroke 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Damper Type RC2 Adj. Hydraulic Bottom Out, RC2T Adj. Hydraulic Bottom Out
Rebound tune R25, R55, R85
Compression tune C22, C26, C30, C34, C37
Lockout force X0, X2, X4
Shaft Eyelet Bearing, No Bushing, No Bushing - 90 Deg Rotation, Standard, Standard - 180 Deg Rotation, Standard - 75 Deg Rotation, Standard - 90 Deg Rotation
Body Eyelet Bearing, No Bushing, Standard, Standard - 90 Deg Rotation, Trunnion
E-Bike Approved E-bike Approved
Weight (g) 670
Weight Based On 230x65, standard/standard, no hardware

Service

Installation. Service. Compatibility. Find all the documentation needed to set up, use, and maintain your components in the SRAM Service hub.

Visit product service page

VIVID DEVELOPMENT

Big, bold, and built to maximize downhill capability and performance. The legendary Vivid has evolved to match everything from downhill to E-MTB to enduro bikes. Dive into Vivid's new TouchDown RC2T damper and our most linear, coil-like air spring to date.

Read the full story

TRAILHEAD APP

SUSPENSION SET UP STARTS HERE

It’s like having a personal tuner in your pocket. RockShox TrailHead App is the starting point to get your suspension dialed in for the perfect ride. Tuning recomendations, upgrade information, and service support all in your hand.
