$549 - $580
Ships after .
Currently out of stock until .

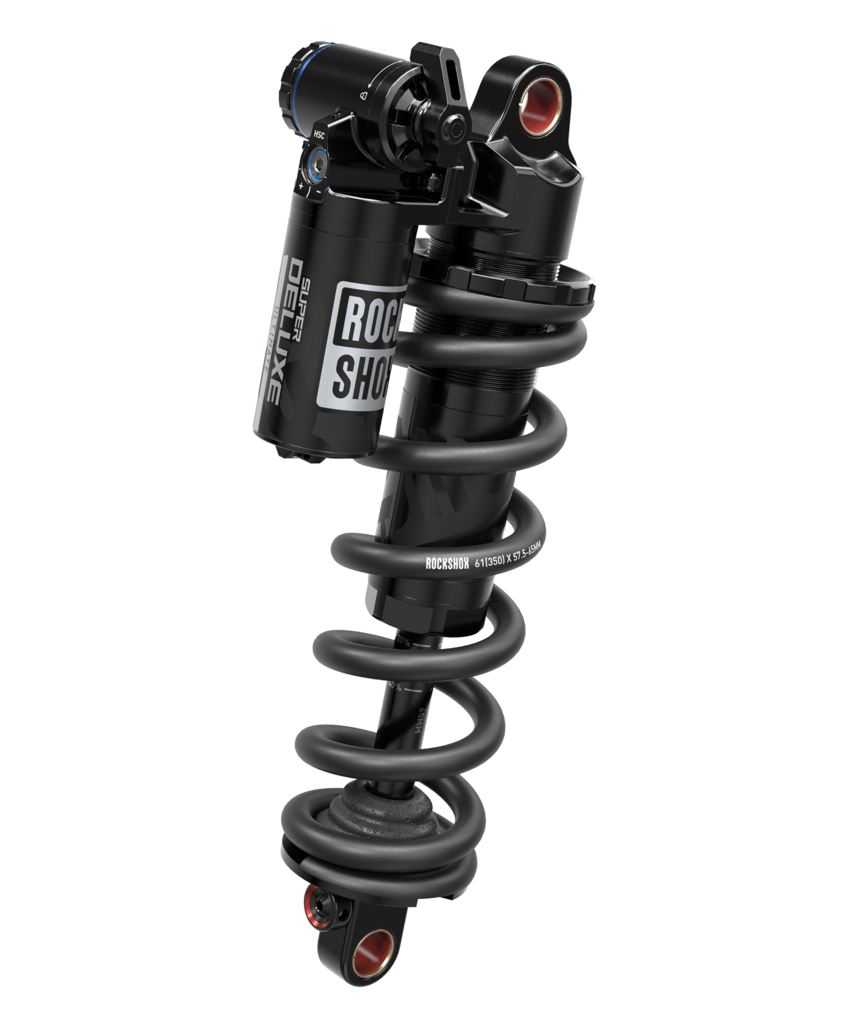

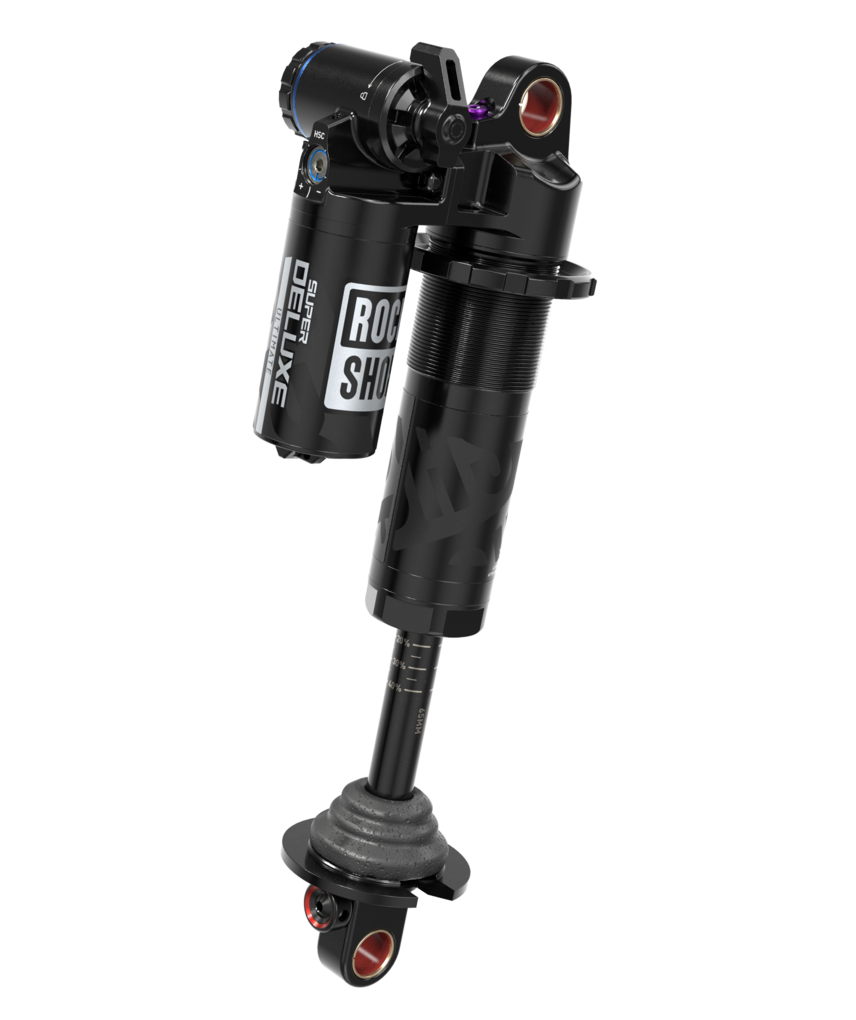

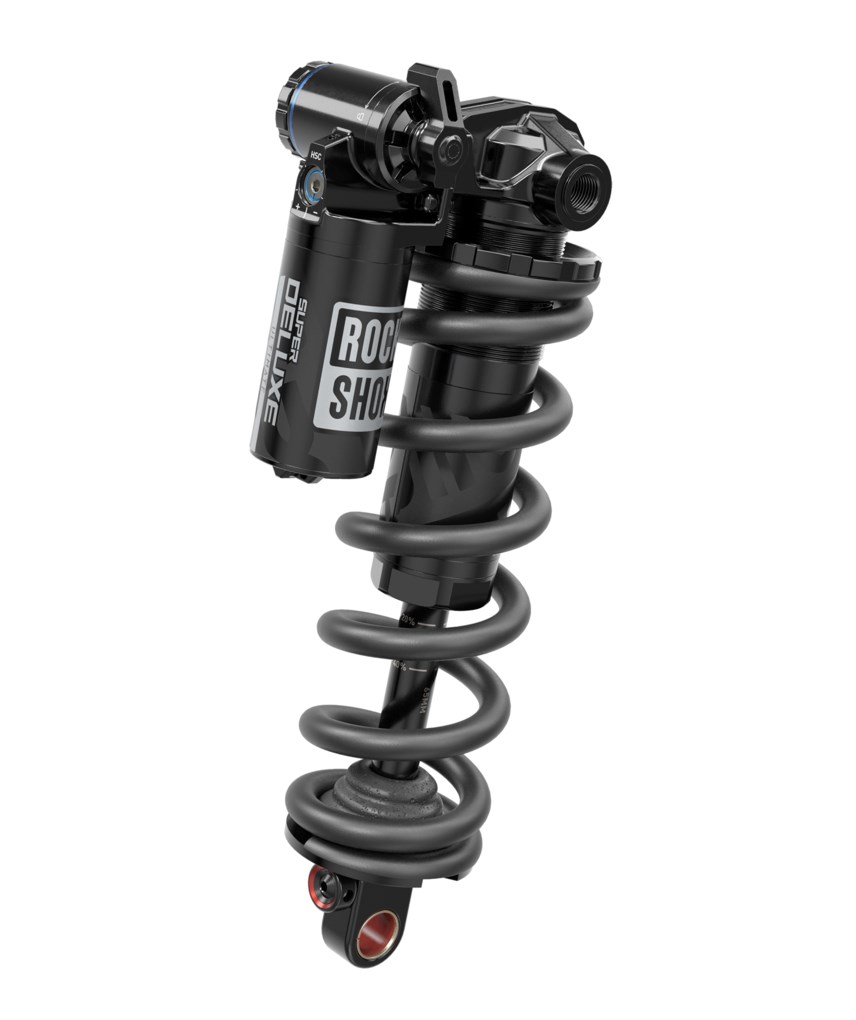

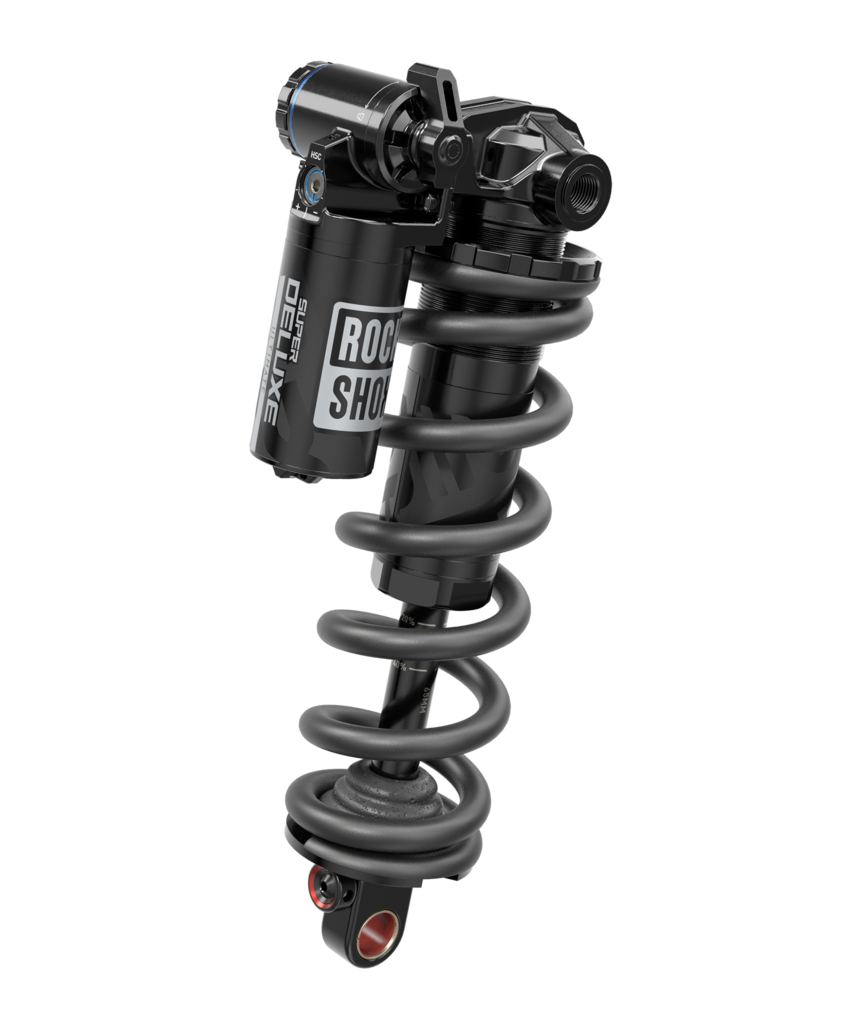

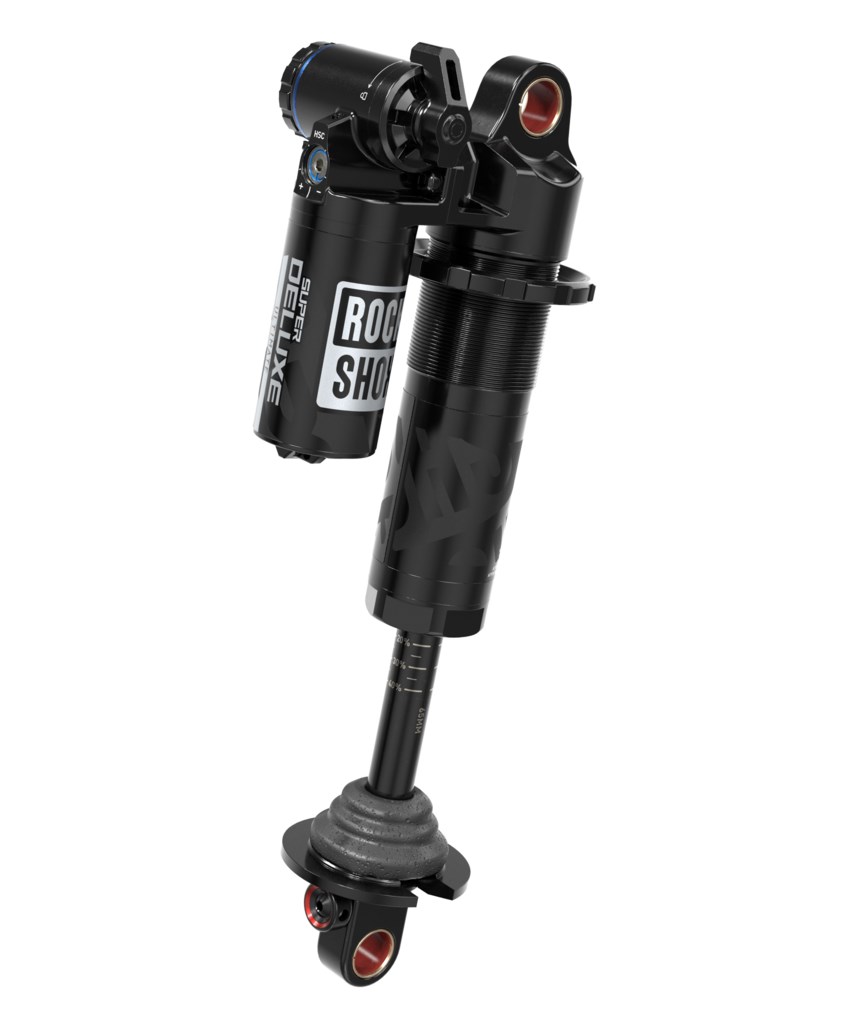

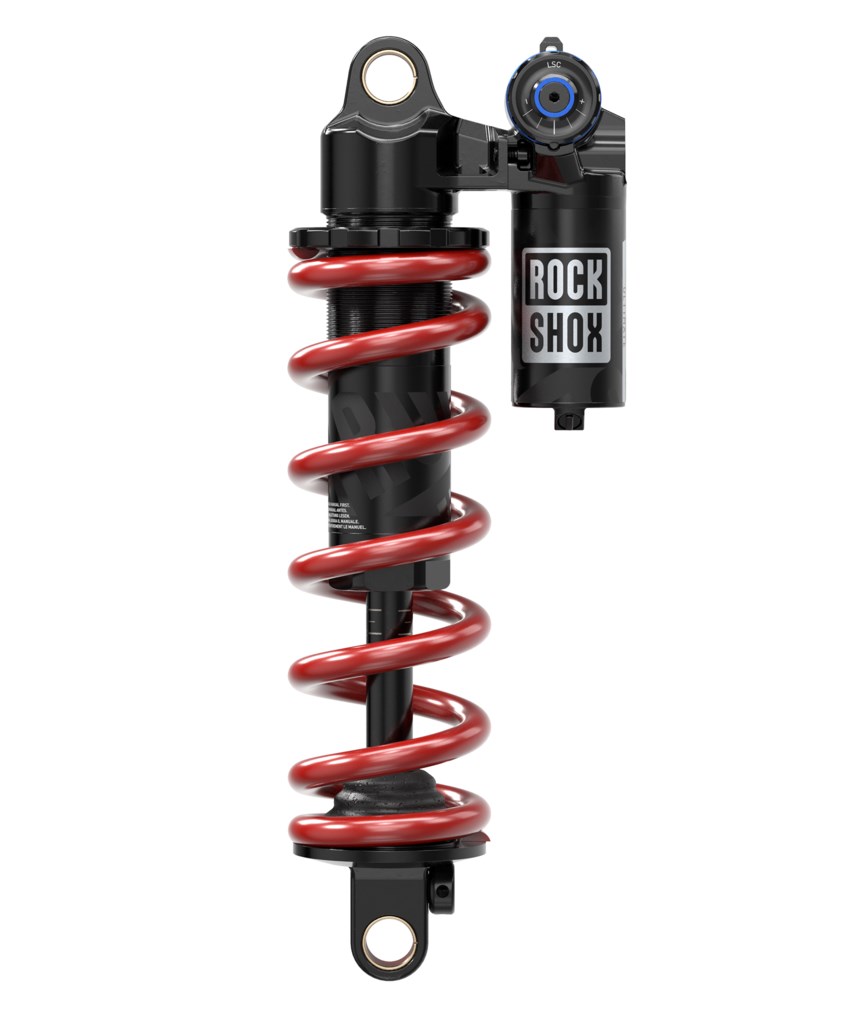

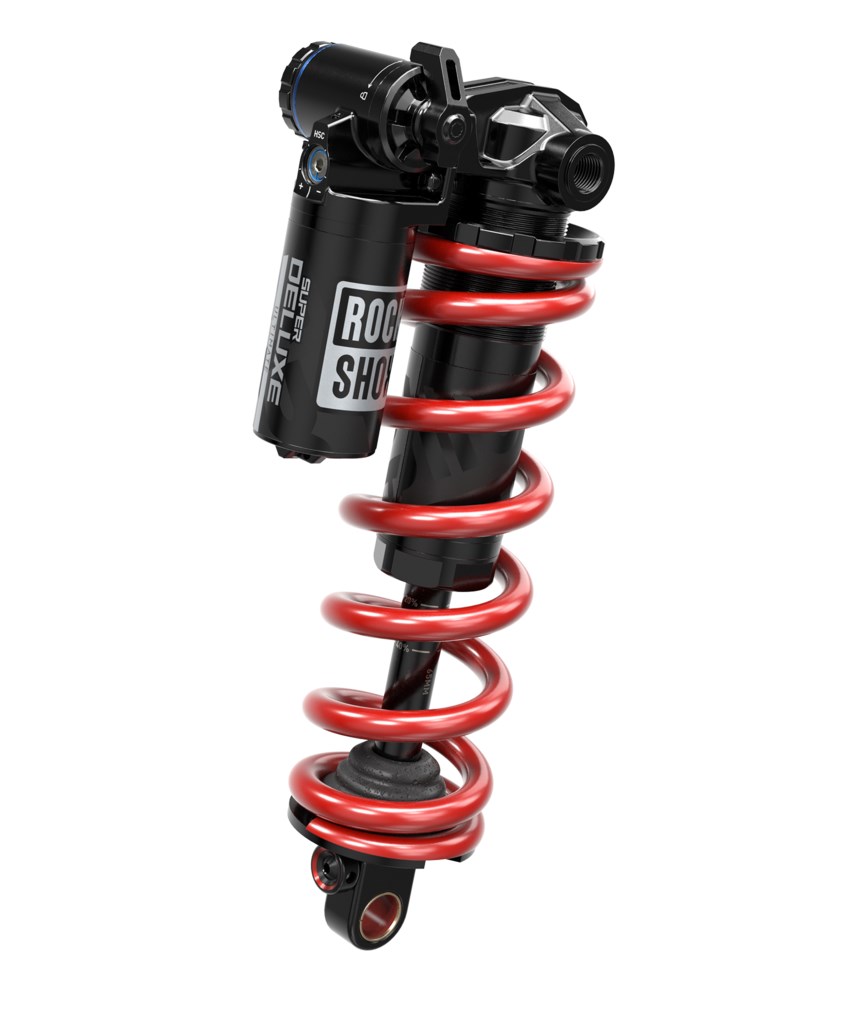

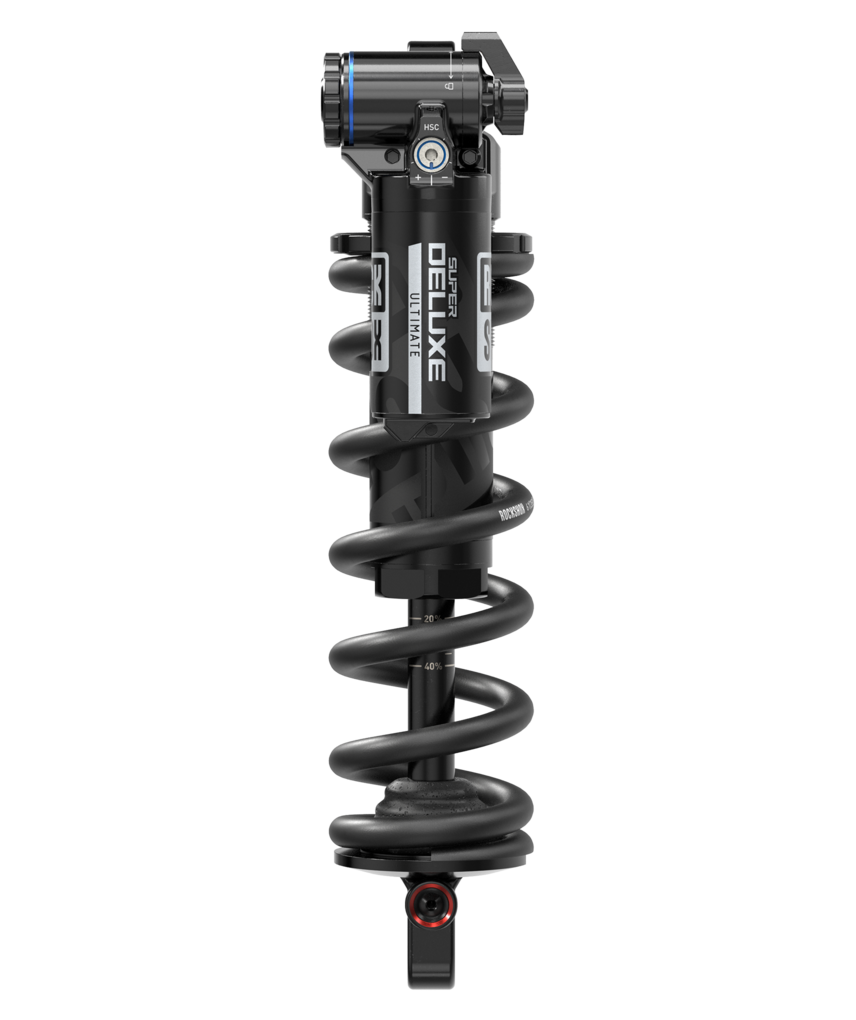

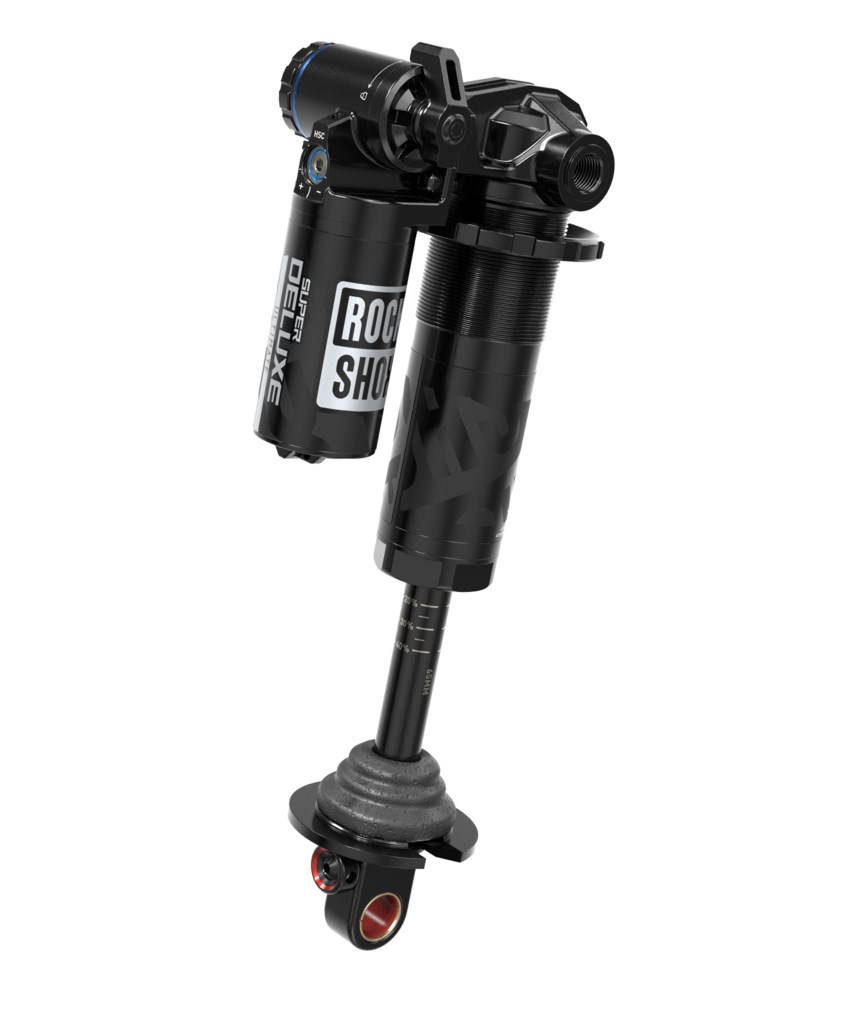

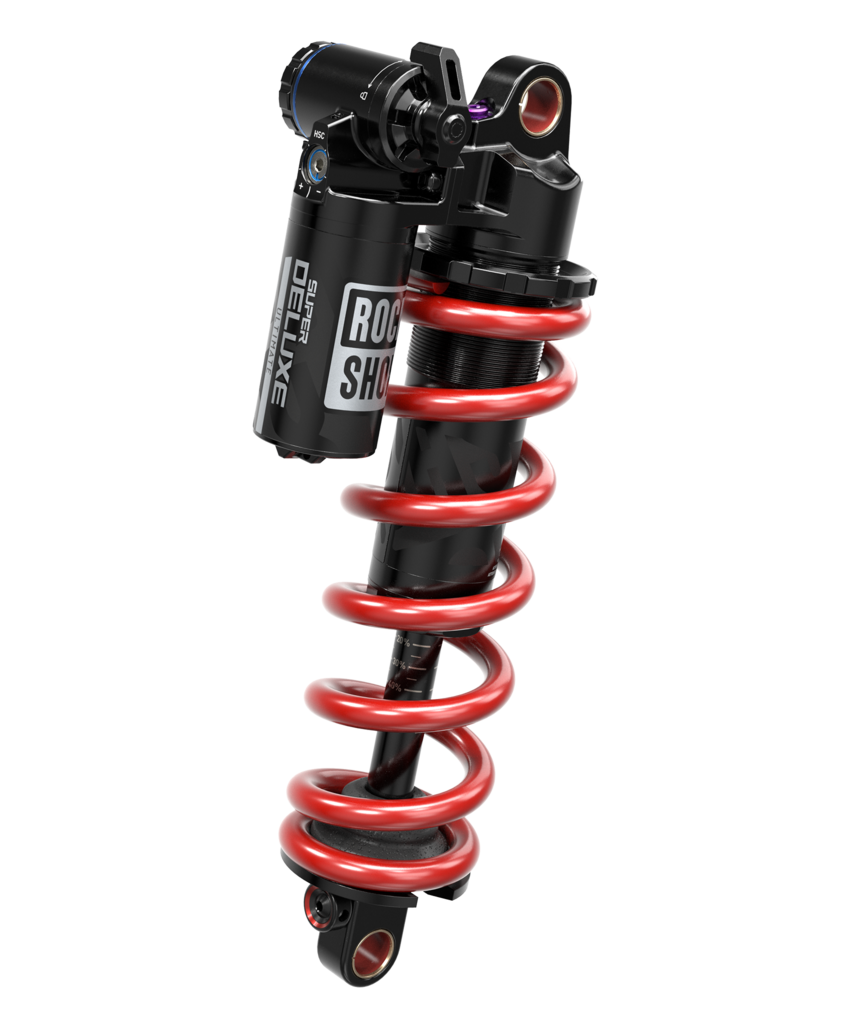

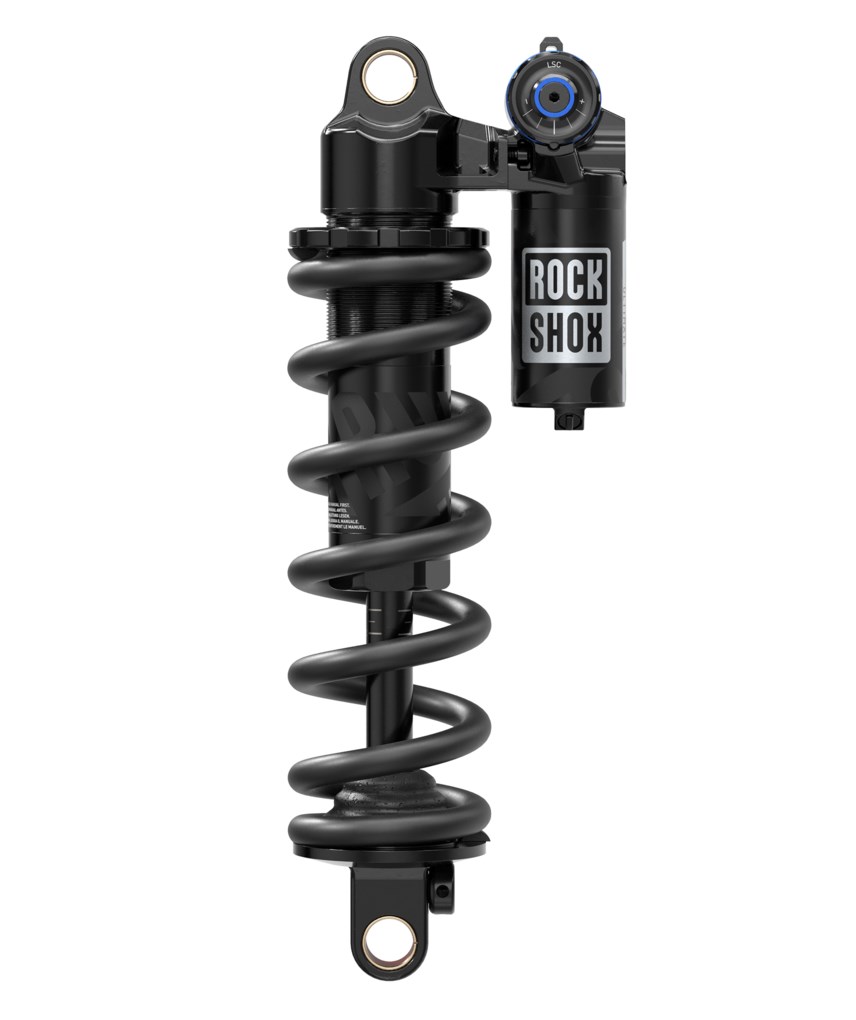

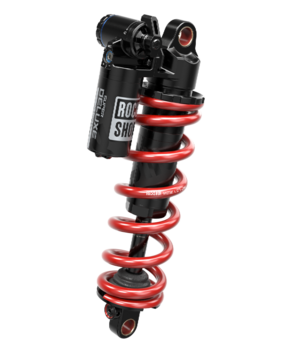

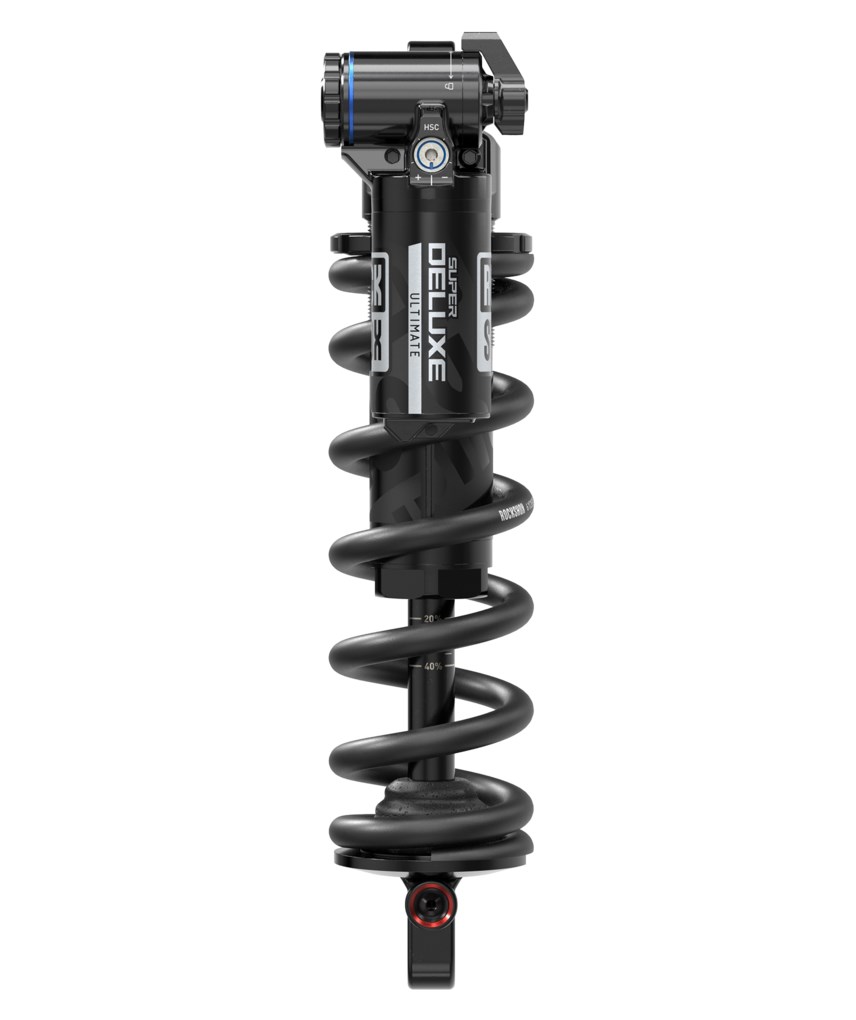

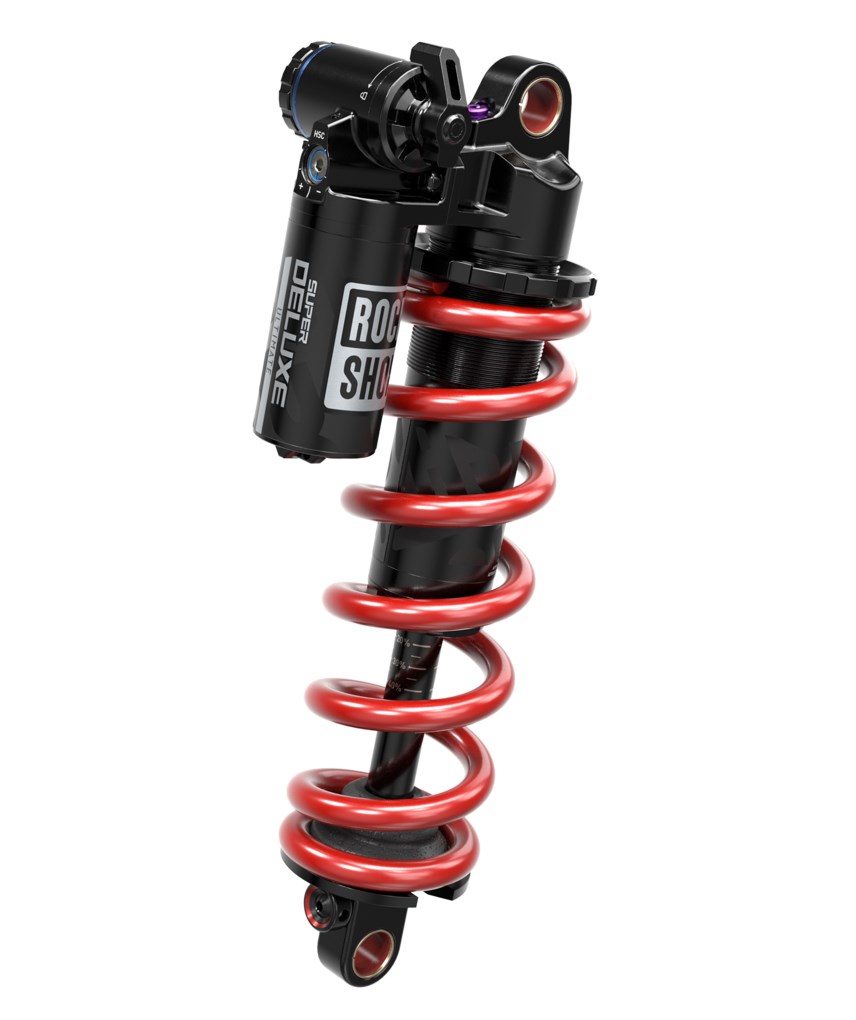

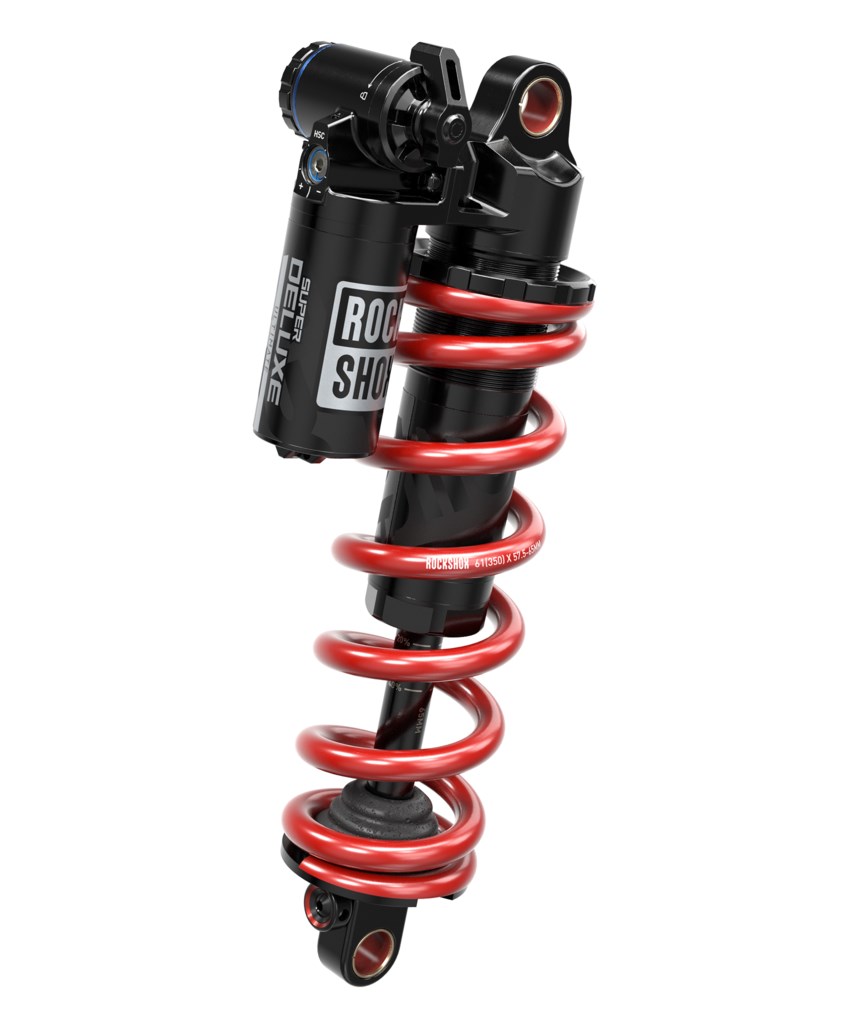

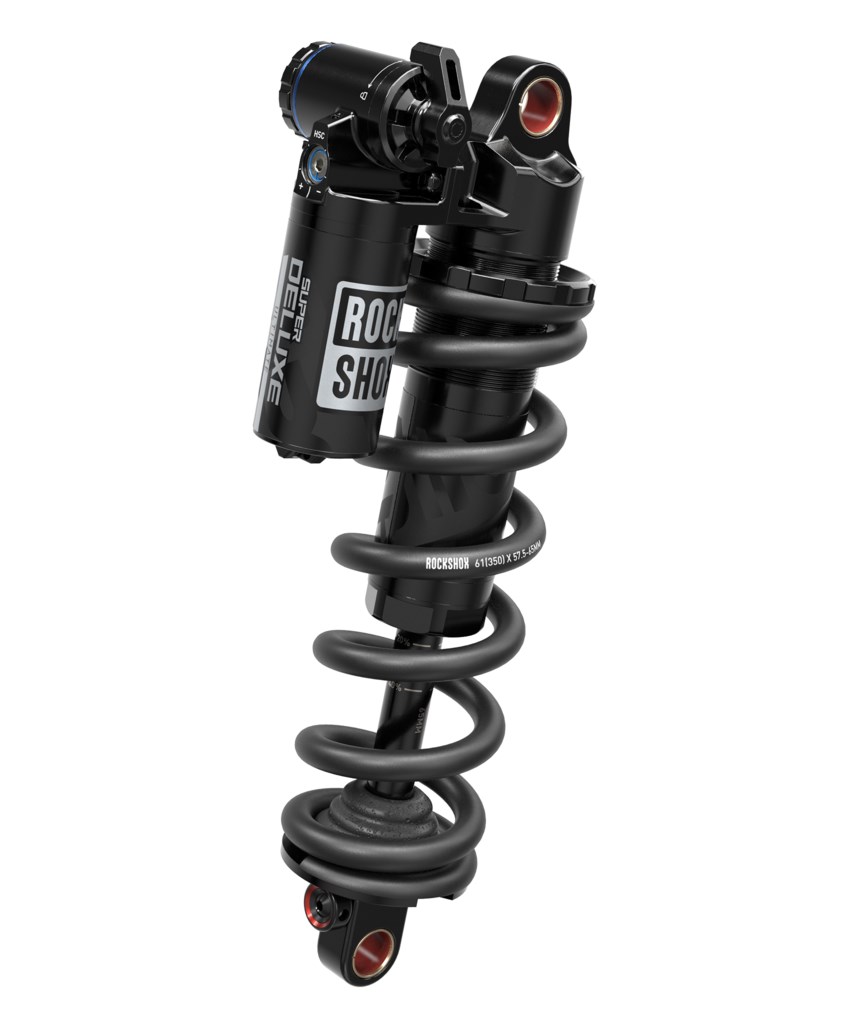

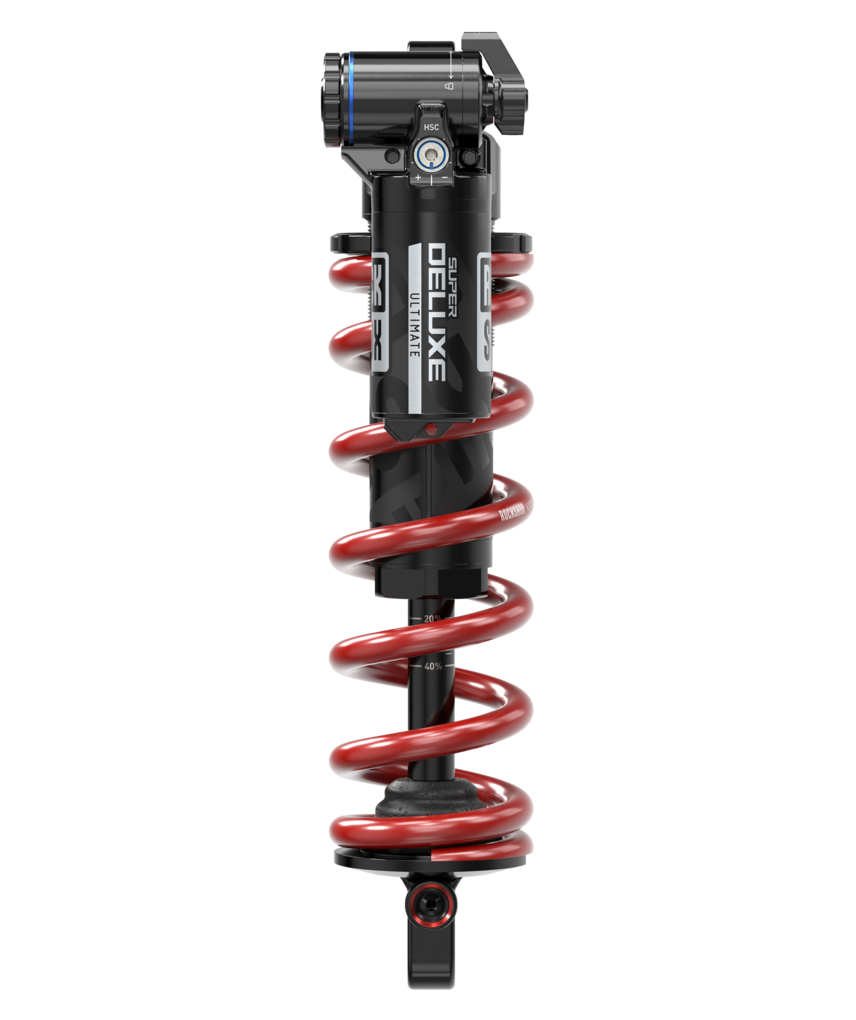

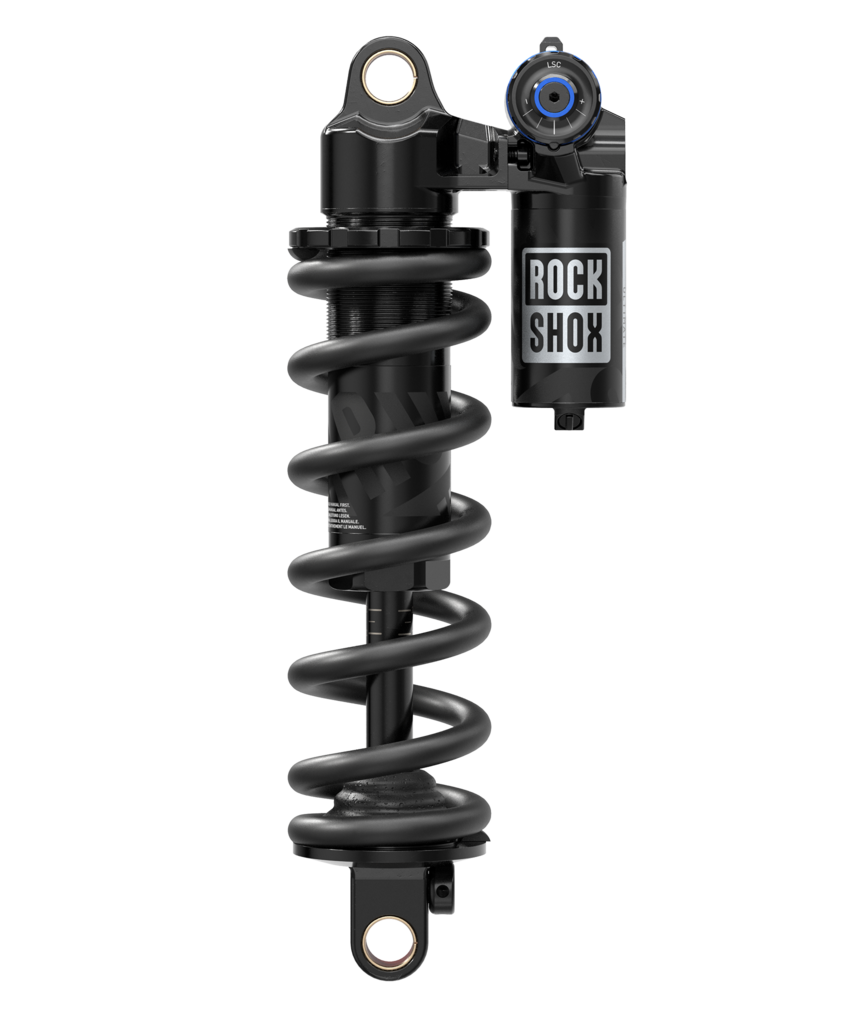

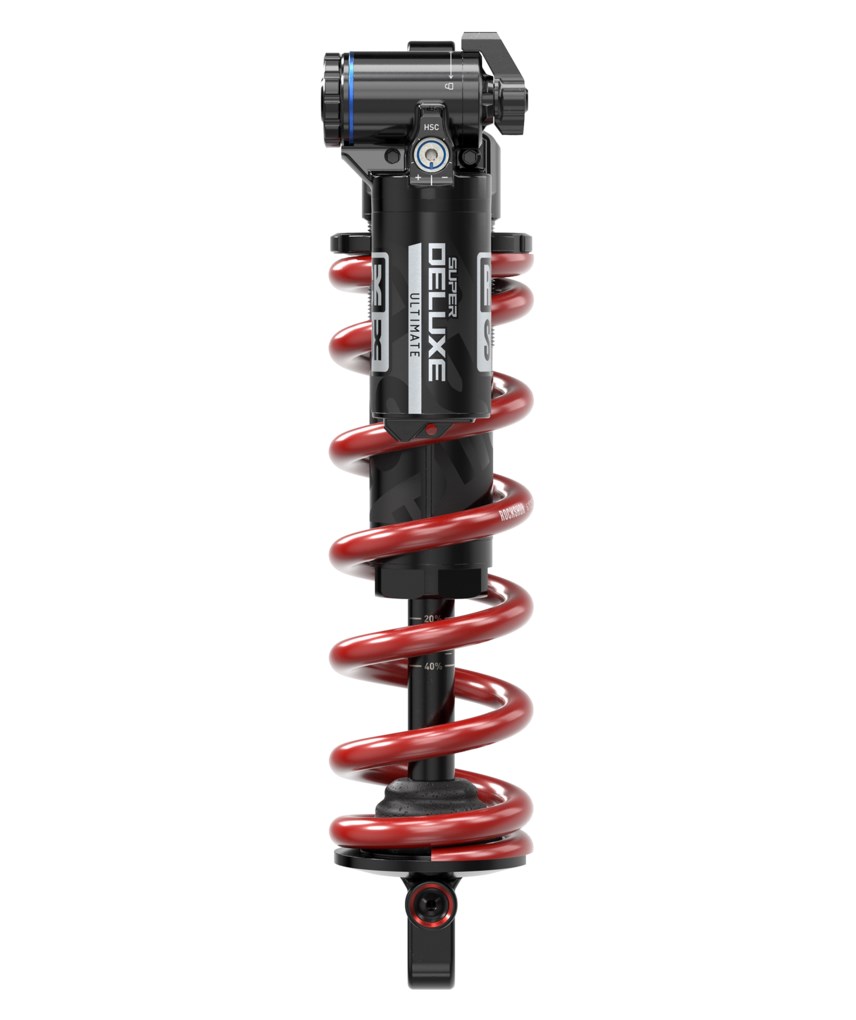

Performance to match the most demanding riders out there. The ground up, all-new Super Deluxe Coil Ultimate is a work of art with no feature spared. Equipped with an entirely new chassis, 100% independent High Speed and Low Speed Compression adjustment, increased bushing overlap for improved small bump performance, and optional Adjustable Hydraulic Bottom Out to tailor that bottomless feel. It’s the unmistakable feel of coil, evolved. A coil shock packed full of premium technology that gives you a hand in painting the experience of how you ride.
UNLESS SPECIFIED BY YOUR FRAME MANUFACTURER, DO NOT SWAP OEM SPEC’D AIR SHOCKS FOR COIL SHOCKS.
Some variations of this product featured on this page are not available for purchase and are installed on bicycles as complete bikes only. See your dealer for details.
Counter Measure reduces the breakaway force of the shock to virtually zero pounds, transforming small bumps into traction-generating performance.
Metric sizing allows both suspension and frame manufacturers to simplify rear shock sizing and fitment in addition to increasing bushing overlap, which results in better traction and improved durability.
Developed with the world's fastest racers, on the world's toughest circuits. Maxima Plush Fluid is designed to protect from suspension wear, reduce friction, and silence damper noise while maintaining a consistent feel in all temperatures.
Adjustable Hydraulic Bottom Out is the extra assurance that can make the difference between hitting big air or bailing last minute. Five different compression settings allow you to customize the cushioning you experience upon impact. So go ahead and commit—you’re in for a soft landing.
|Eye to eye / Stroke||165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75|
|Rebound tune||Linear, Progressive|
|Compression tune||H, L, L1, LC, M|
|Lockout force||320, 380|
|Shaft Eyelet||Bearing, No Bushing, No Bushing - 90 Deg Rotation, Standard|
|Body Eyelet||Bearing, No Bushing, Standard, Trunnion|
|Damper Type||RC2T, RC2T Adj. Hydraulic Bottom Out|
|E-Bike Approved||E-bike Approved|
|Weight Based On||230x65, with 350lb spring, standard/standard|
