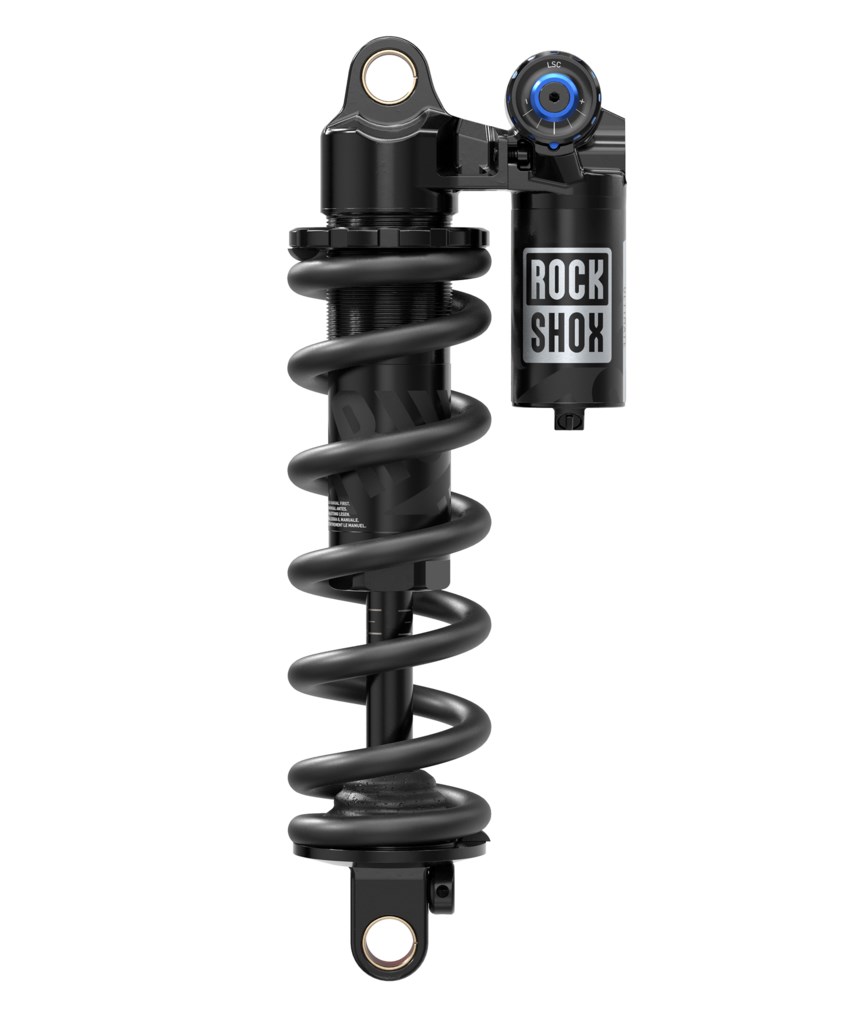

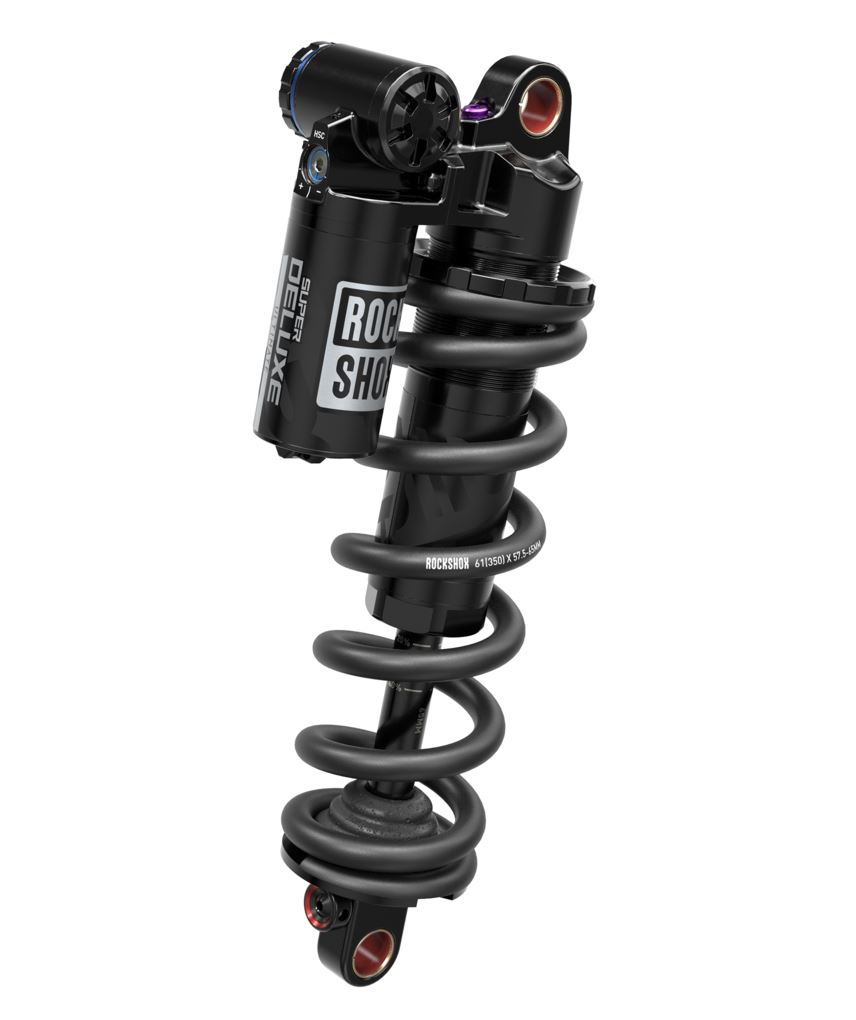

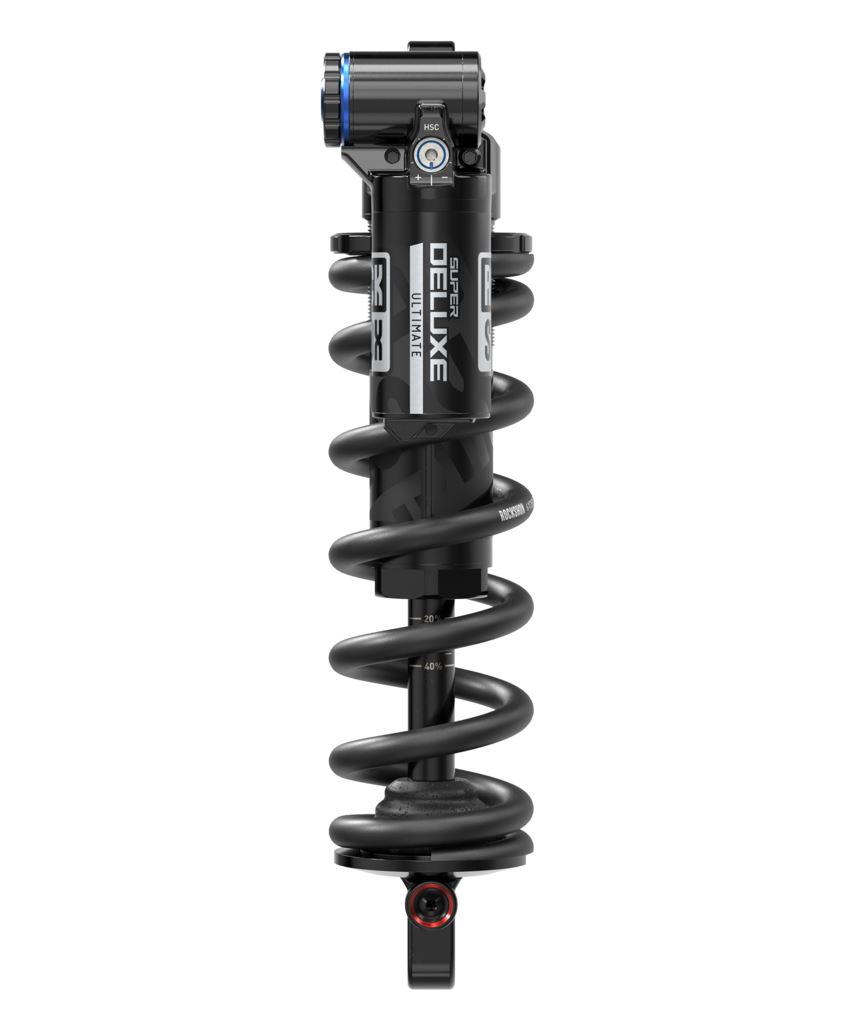

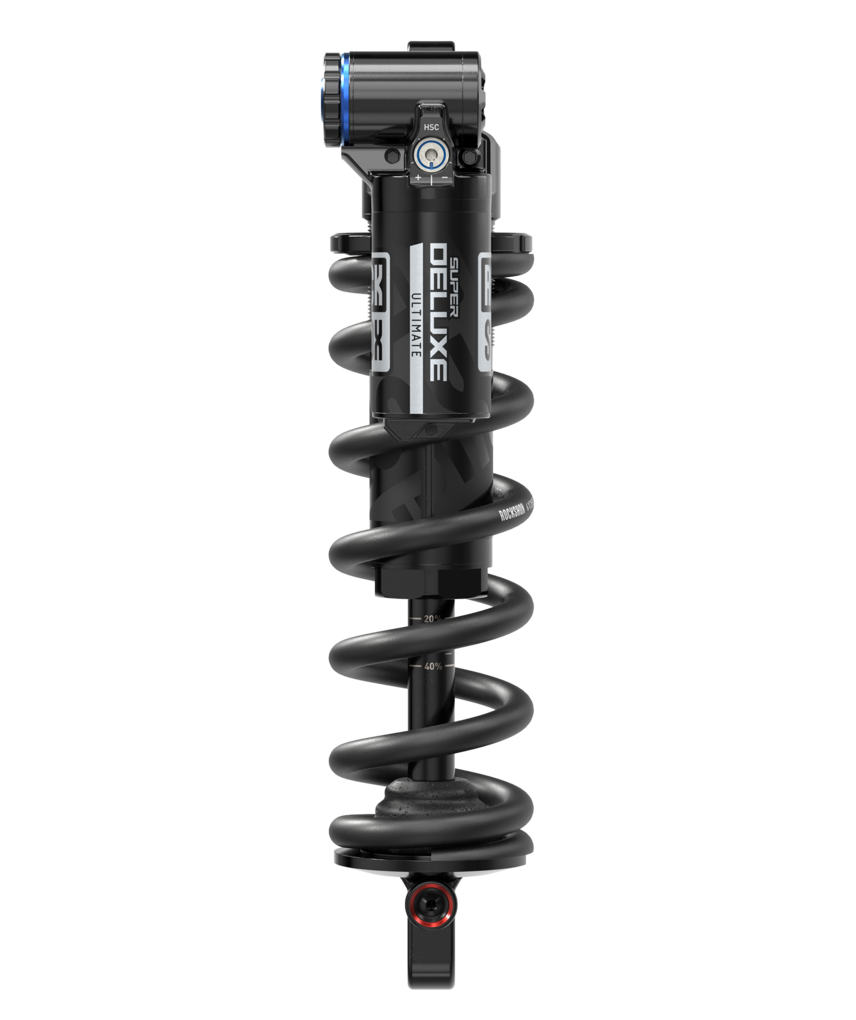

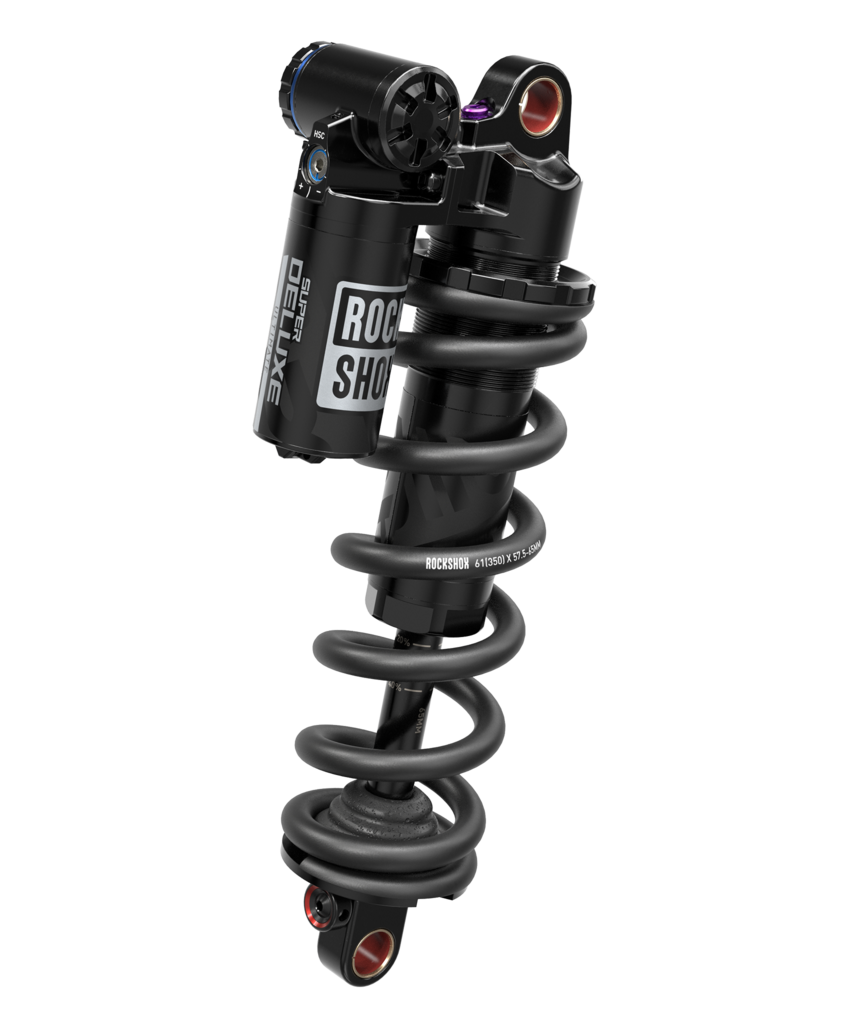

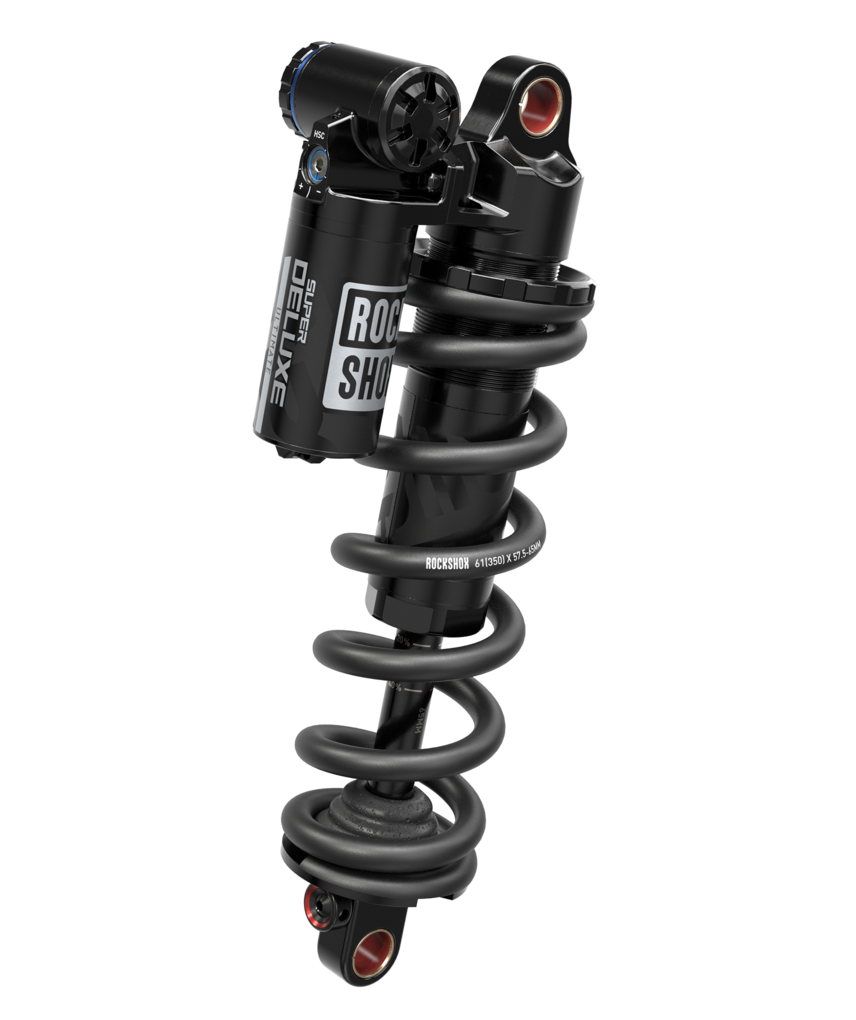

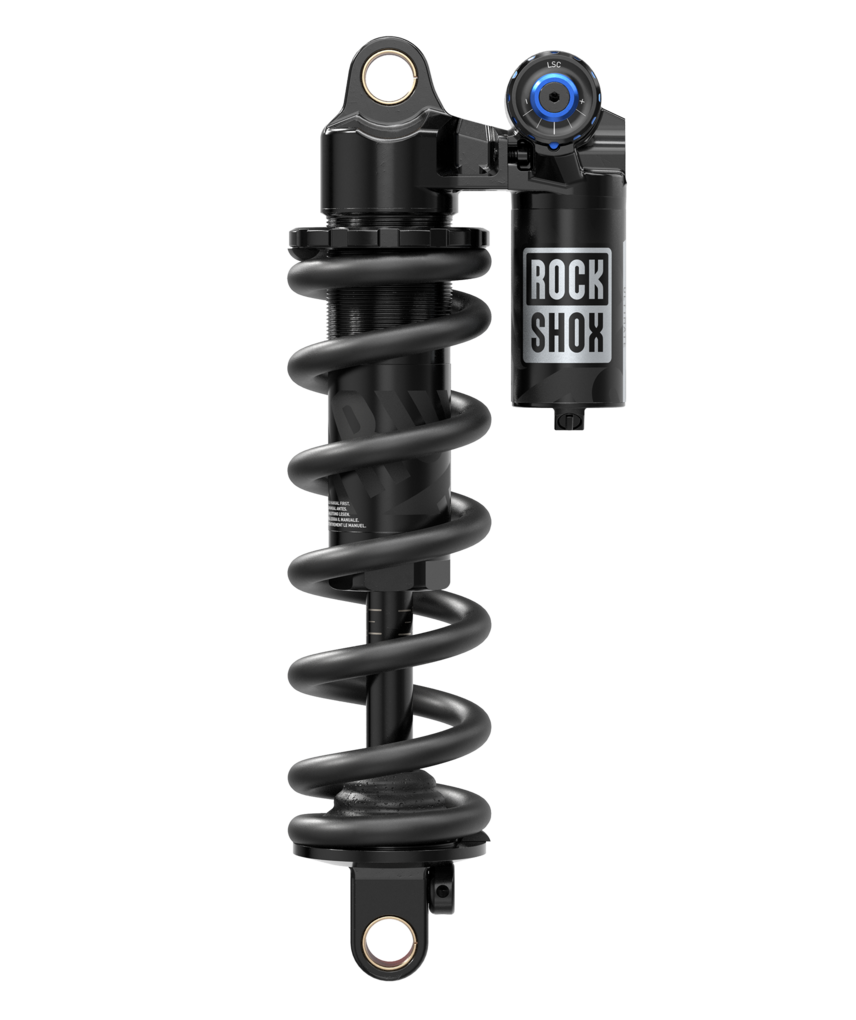

Super Deluxe Coil Ultimate DH

Msrp

$499

Model ID

RS-SDLC-ULDH-B1

{{spec.DisplayName}} - {{spec.Value}}

Ships after .

Currently out of stock until .

Description
Find a Dealer

Performance to match the most demanding riders out there. The ground up, all-new Super Deluxe Ultimate DH Coil is a work of art with no feature spared. Equipped with an entirely new chassis, 100% independent High Speed and Low Speed Compression adjustment, increased bushing overlap for improved small bump performance, and adjustable Hydraulic Bottom Out resistance to tailor that bottomless feel. It’s the unmistakable feel of coil, evolved. A coil shock packed full of premium technology, designed to lock in lines and reach mach speed on the steeps. 

Read More
Read Less

UNLESS SPECIFIED BY YOUR FRAME MANUFACTURER, DO NOT SWAP OEM SPEC’D AIR SHOCKS FOR COIL SHOCKS.

Features
  • RC2 Damper’s ultimate adjustability is tailored to the downhill trailblazer and offers completely independent High Speed and Low Speed Compression adjustments, eliminating “cross-talk” so you can tune your shock to exactly how you want it to perform.
  • The optional Adjustable Hydraulic Bottom Out offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel when facing potential bottom out.
  • Redesigned rough-ready chassis is 21% stronger and primed to get rowdy.
  • Increased bushing overlap maximizes small bump performance and grip.
  • 20 clicks of Rebound adjustment offer wider range of tunability and accommodate more rider types.
  • Separate and independent Open and Threshold pistons tuned exactly for your ride.
  • External adjustments allow for no-fuss tuning on the fly.
  • Fresh signature graphics package to flash on the podium or as you blaze past your buddies on the doubletrack.

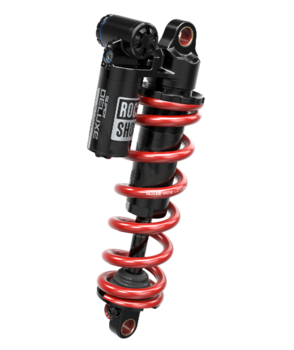

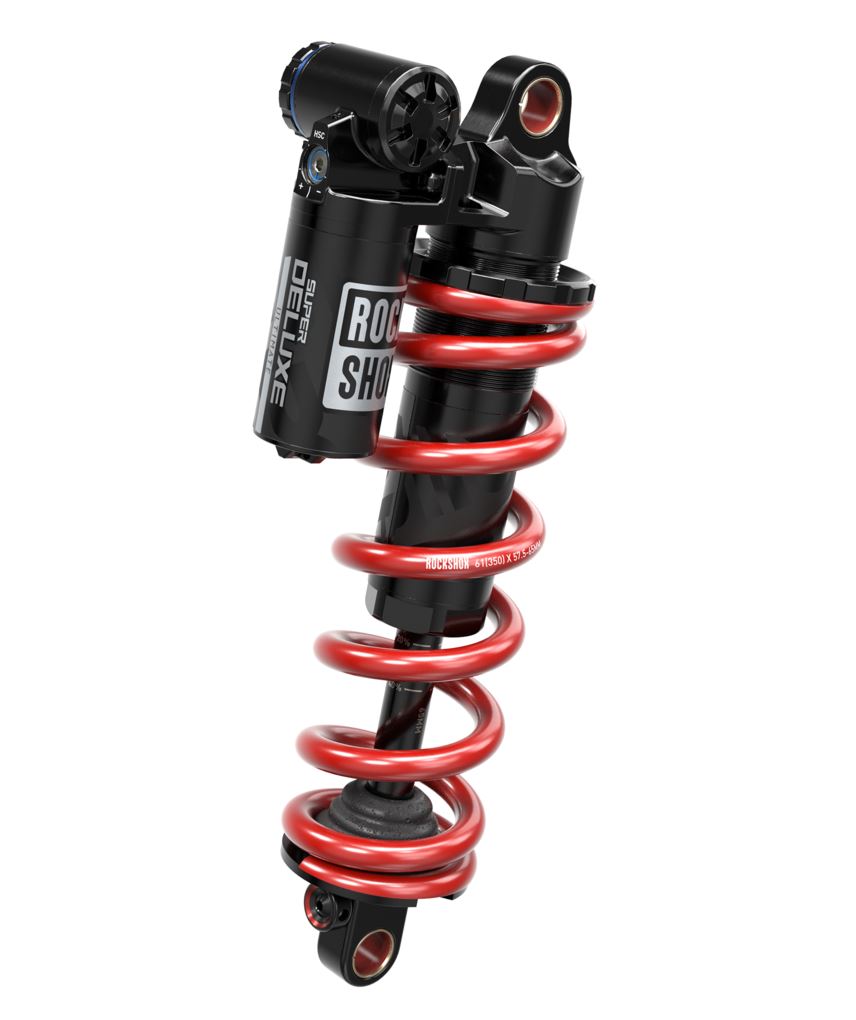

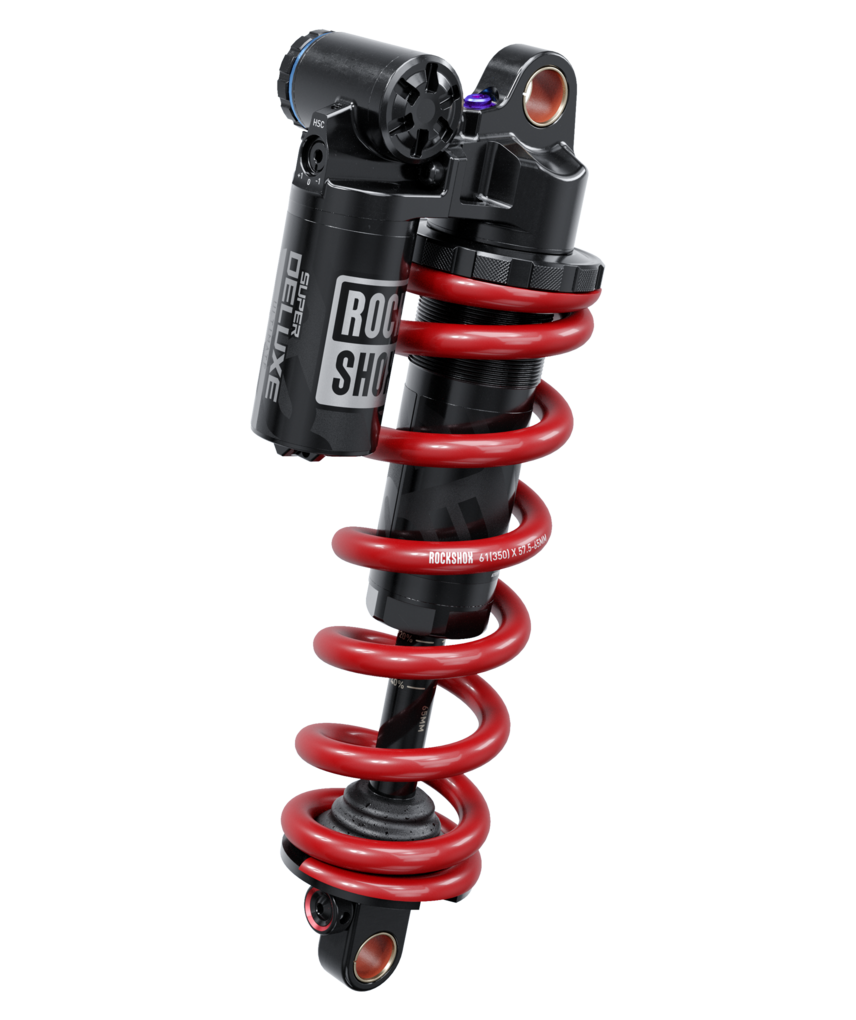

  • Red hot “BoXXer Red” Signature Coil colorway and Signature Color matching decal options available.
  • Maxima plush damping fluid reduces friction and silences damper noise.
See more features
See less features

Some variations of this product featured on this page are not available for purchase and are installed on bicycles as complete bikes only. See your dealer for details.

Technology

Specifications

Eye to eye / Stroke 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Rebound tune Linear, Progressive
Compression tune H, L, M
Lockout force n/a
Shaft Eyelet Bearing, No Bushing, Standard
Body Eyelet Bearing, Standard, Trunnion
Damper Type RC2, RC2 Adj. Hydraulic Bottom Out
E-Bike Approved E-bike Approved
Weight (g) 900
Weight Based On 230x65, with 350lb spring, standard/standard
