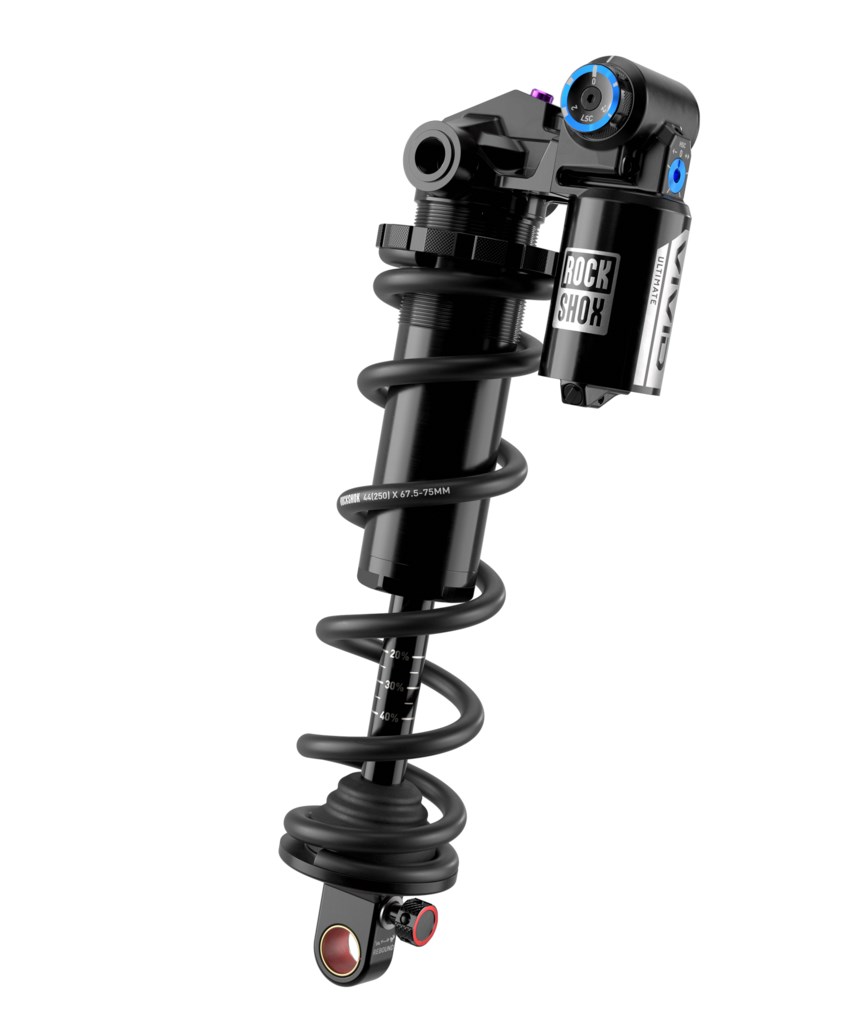

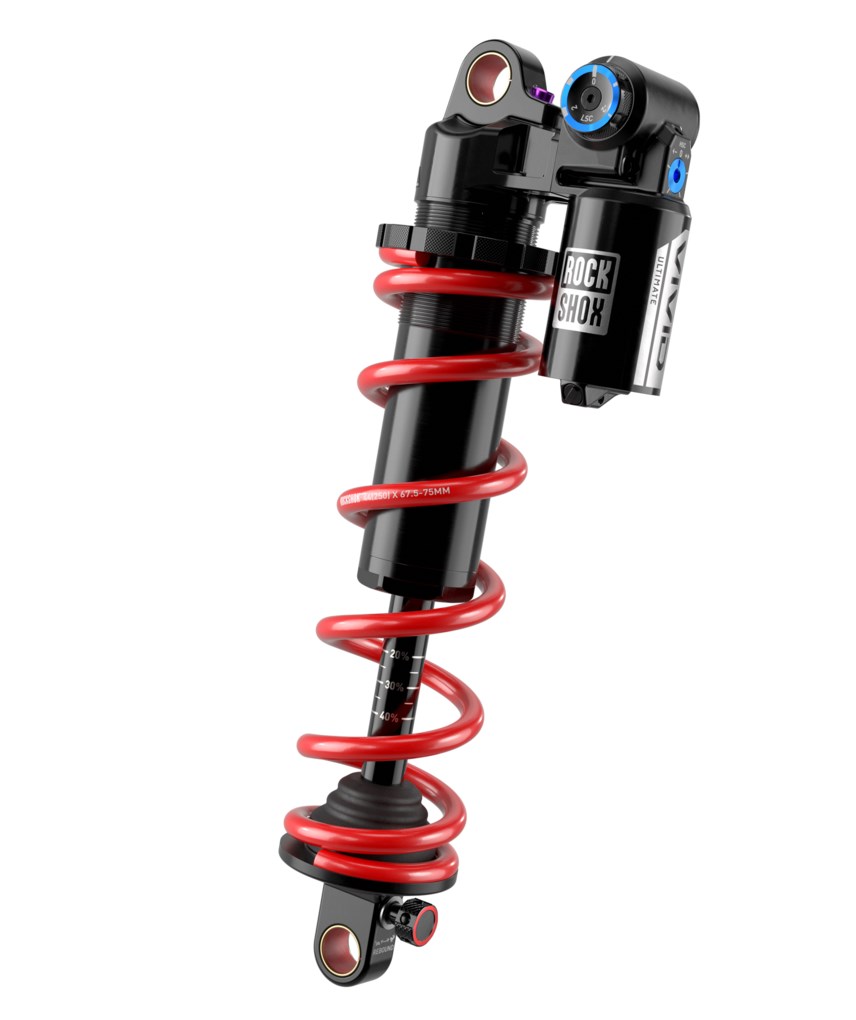

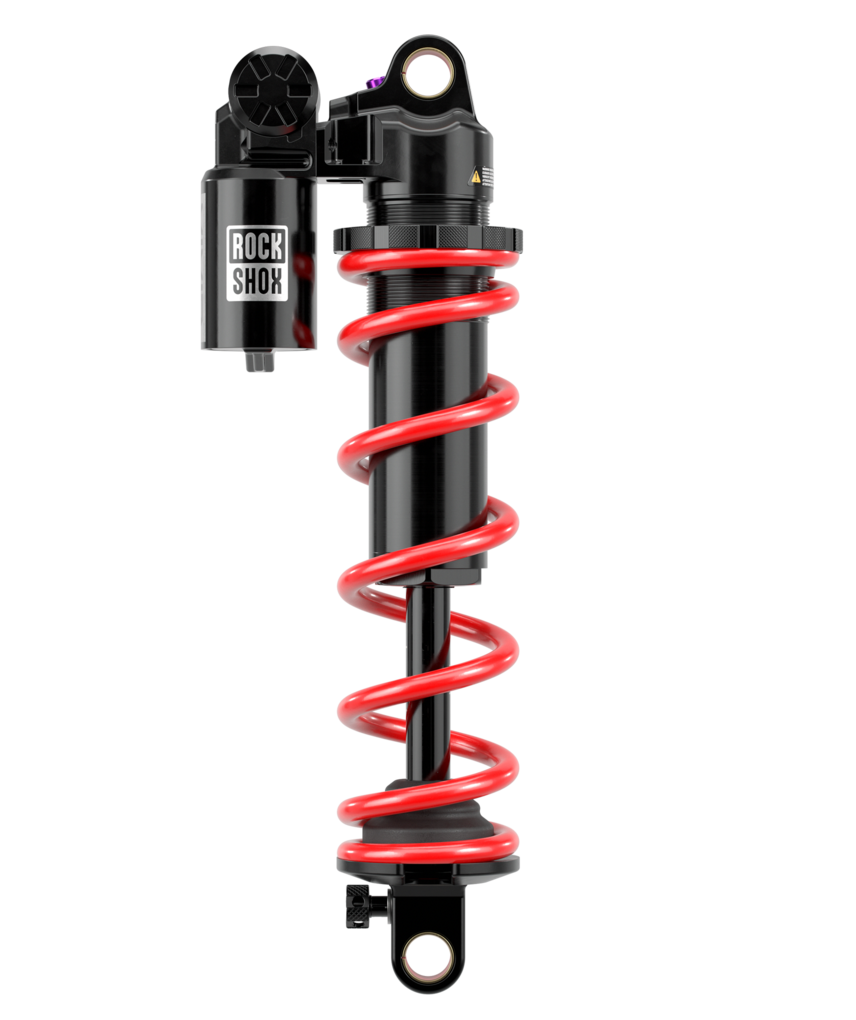

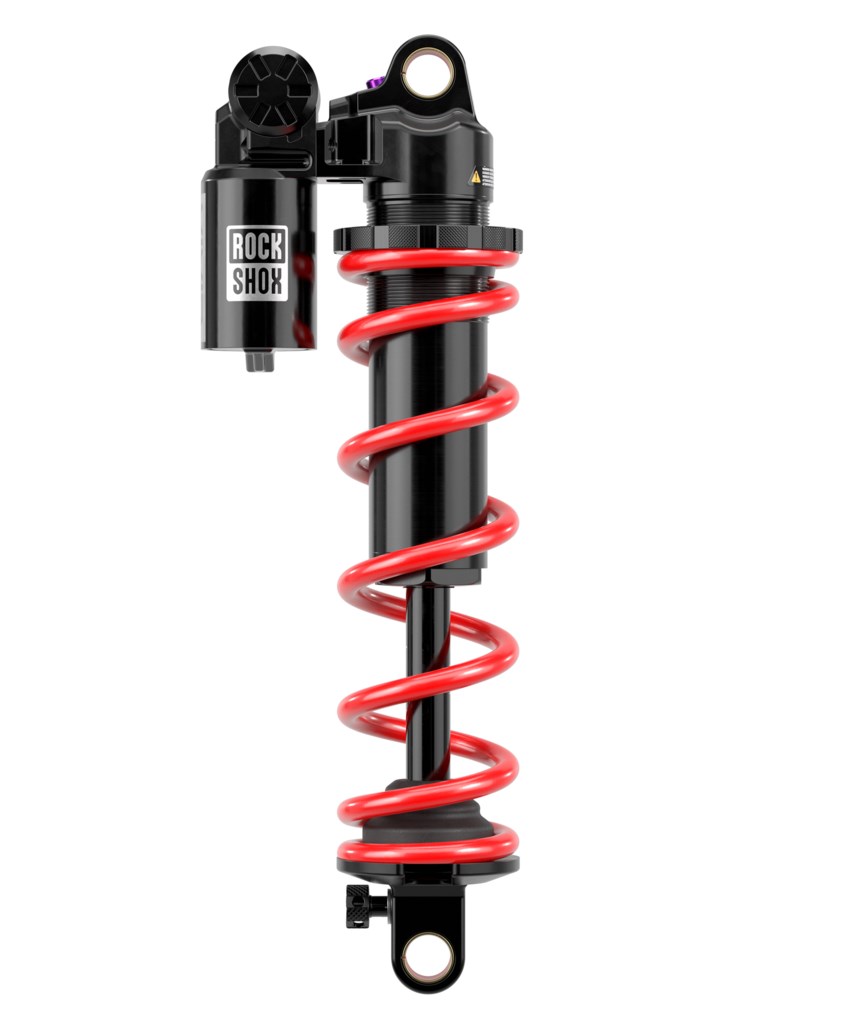

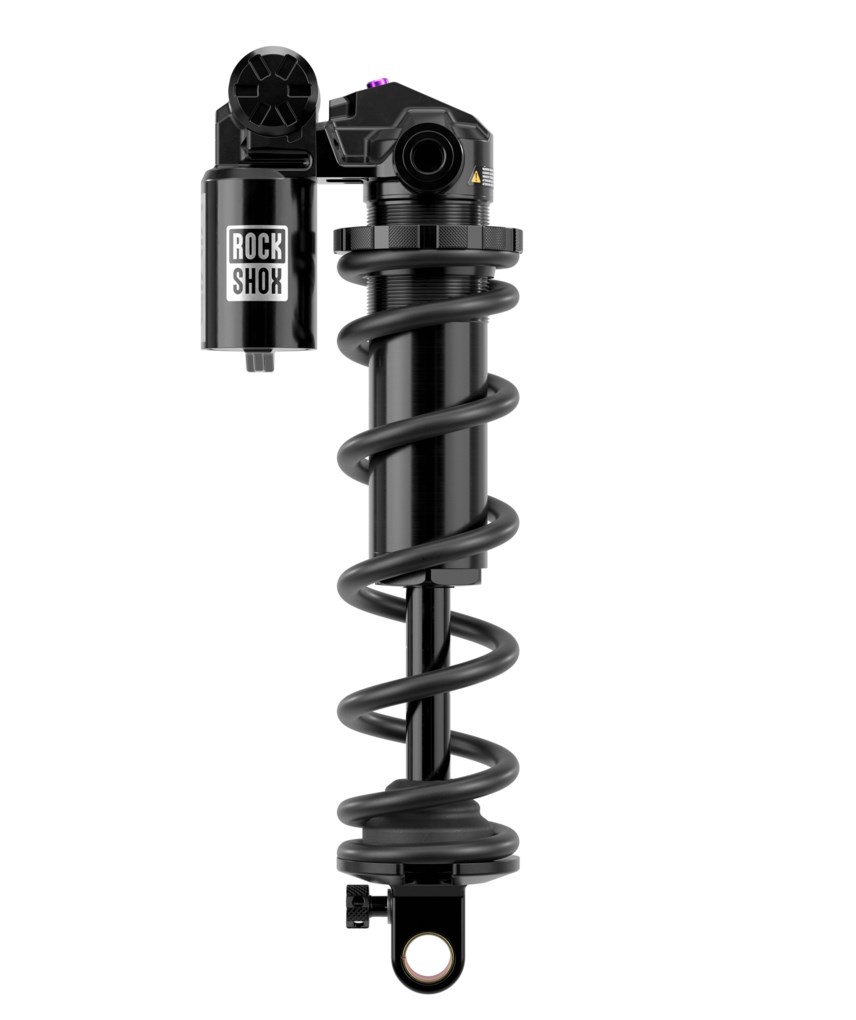

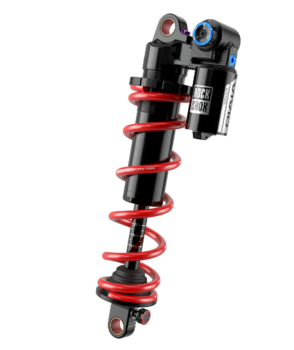

Vivid Coil Ultimate DH

Name: Vivid Coil Ultimate DH
Brand: RockShox
SKU: RS-VIVC-UDH-D1

Msrp

$719

Model ID

RS-VIVC-UDH-D1

Where to buy

Description

Find a Dealer

There’s a reason everyone loves coil—the feel is unmistakable—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out (ABO) for confident end-stroke control—giving you unwavering consistency and predictability. Engineered to work as a system with your fork and Charger 3.2 damper, the RC2 damper’s new main piston compression tunes deliver confident mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear, and easy to communicate. Distilling decades of coil dominance into a shock built for today’s downhill bikes, Vivid Coil Ultimate DH carries the unmistakable heritage of coil into a new era of performance.

Read Less

Features

NEW RCT2 damper providing a wide, usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talk
NEW Numbered Compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping
NEW Base valve with 40% reduction in IFP forces, making it the most supple shock on the market while maintaining perfect traction
NEW Main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support

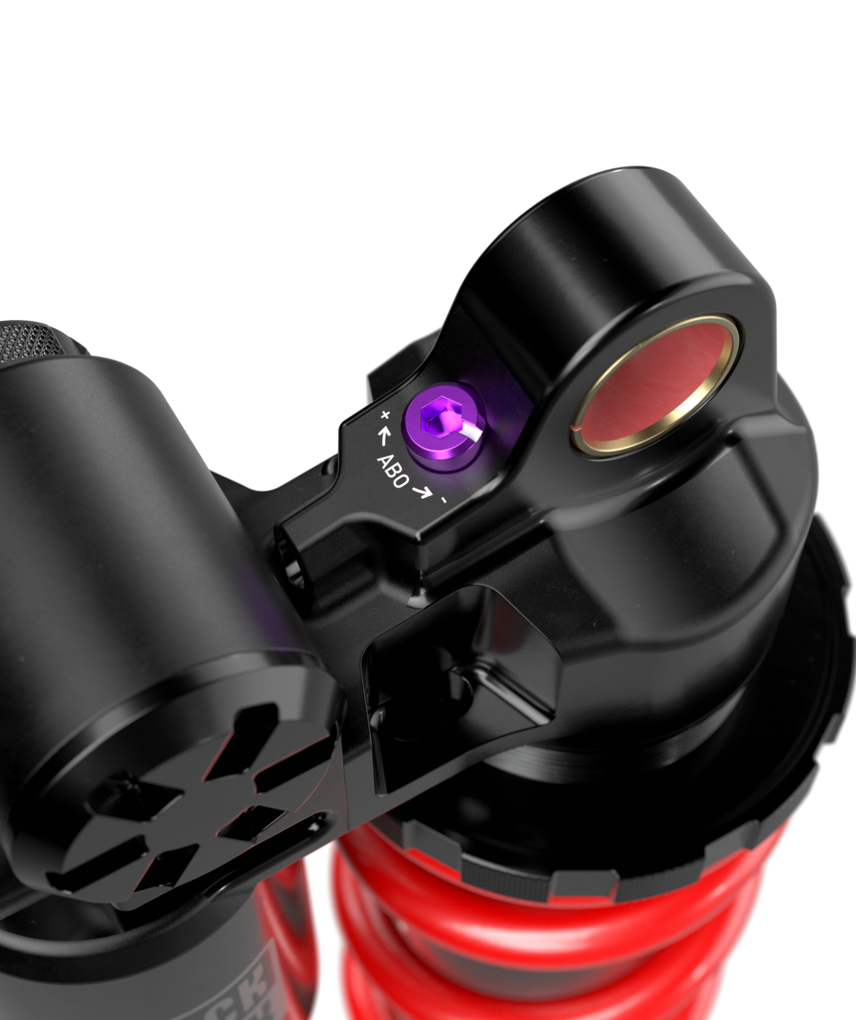

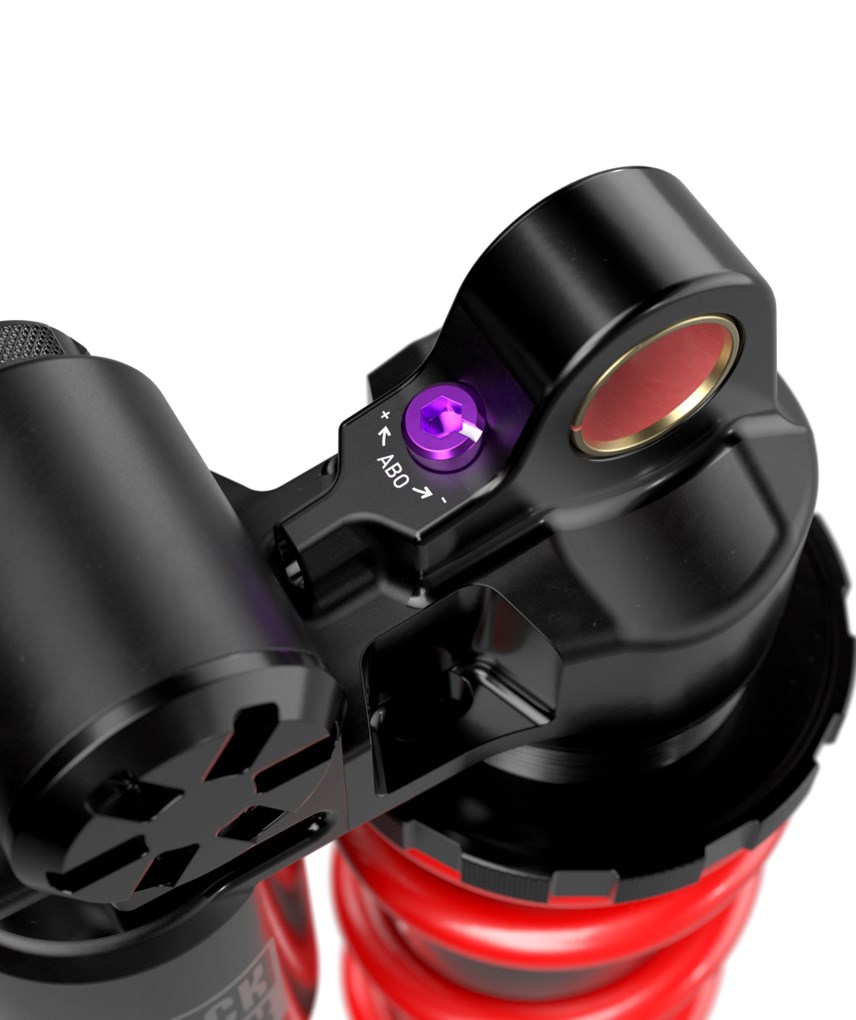

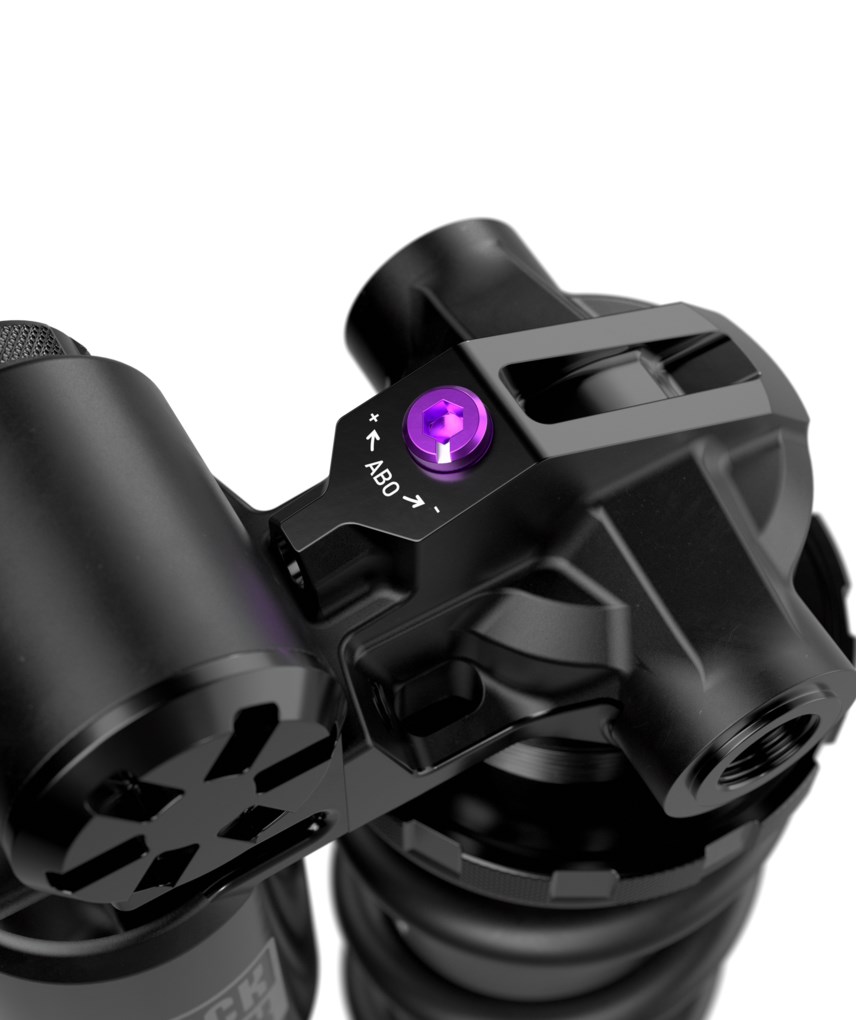

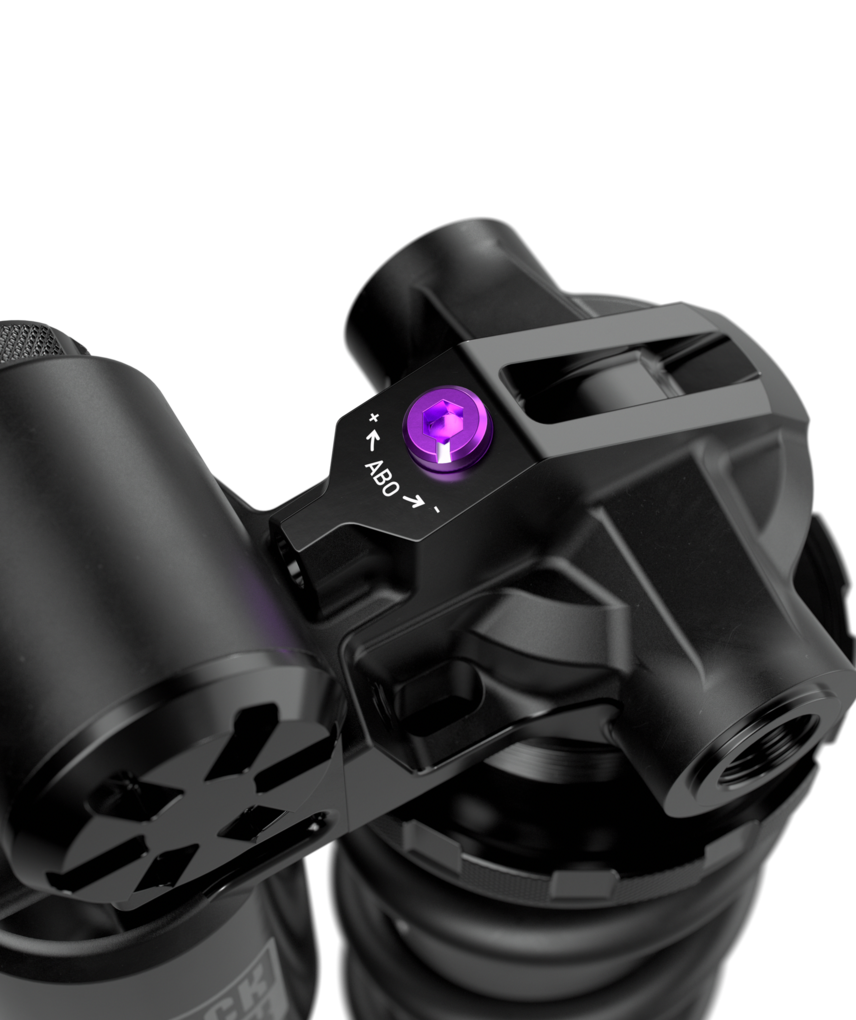

Adjustable Bottom Out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel
Removable Rebound knob doubles as HSC and ABO adjuster
20 clicks of Rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights
8x30 Bearing Adapter available for all standard eyelets, configured as hardware (upcharge applies)

See more features

See less features

Specifications

Eye to eye / Stroke	225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 250x67.5, 250x70, 250x72.5, 250x75
Damper Type	RC2 Adj. Hydraulic Bottom Out
Rebound tune	R25, R55
Compression tune	C26, C30, C34, C37, C40, C43
Lockout force	N/A-V5
Shaft Eyelet	No Bushing, No Bushing - 90 Deg Rotation, Standard, Standard - 180 Deg Rotation, Standard - 90 Deg Rotation
Body Eyelet	No Bushing, Standard, Trunnion
E-Bike Approved	E-bike Approved
Bottom Out	Externally Adjustable Bottom Out
High Speed Tune	n/a
