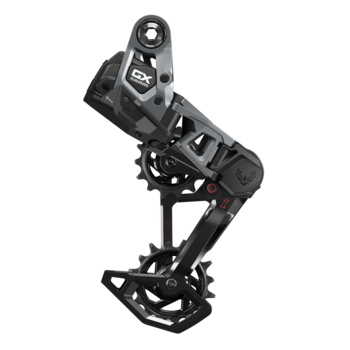

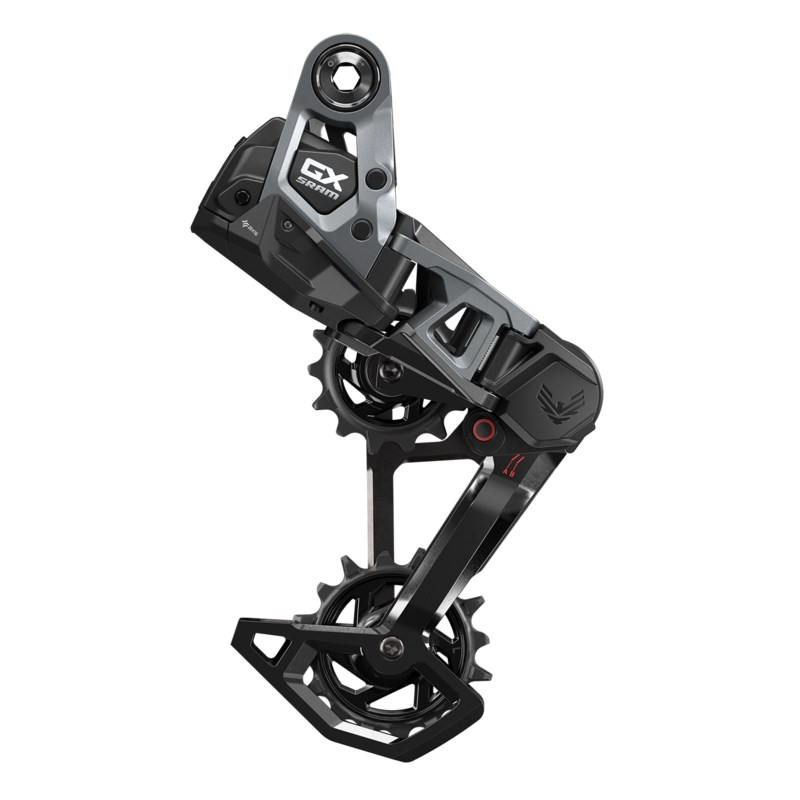

The GX Eagle Transmission derailleur is a lesser version of nothing. It delivers everything an Eagle Transmission derailleur possibly can, and then some. It features a revised battery position and a reconfigured gearbox to better protect itself from impacts. To maintain crisp shifting and striking appearance throughout its entire lifespan, hard-chargers can replace both its protective skid plates and two-piece outer link, if needed, making this the most repairable derailleur we’ve ever made. It also features the first ever tool-free cage and clutch assembly – so it’s both removable and upgradable too. With a steel inner cage that adds even more robustness, it’s been built for riders of the real world. Just like all Eagle Transmission derailleurs, it’s been engineered with a first-of-its-kind Hangerless Interface, mounting around the wheel axle itself and making direct contact with the cassette with no hanger required. The new transmission derailleurs feature the same intuitive pairing and set-up procedure as our Eagle AXS derailleurs. The revolutionary Full Mount attachment method creates a far stronger connection because it grips both sides of the frame. Let the record show that the GX Eagle Transmission derailleur plays second fiddle to nothing. It’s all in for all day.
- Revised battery position, reconfigured gearbox, replaceable skid plates and outer link, tool-free cage and clutch
- Install and pair via the reliable and familiar standard AXS set-up and pairing procedure
- Hangerless Interface, Full Mount attachment method
- Radically clear setup process, no adjustment required
- AXS battery and Pod controller available separately
SRAM X-SYNC 1x chainrings provide the highest level of performance and durability. The SRAM X-SYNC tall square teeth edges engage the chain earlier than traditional triangle shaped teeth. The sharp and narrow tooth profile, as well as rounded chamfer edges, help manage a deflected chain. To provide the best possible performance in muddy conditions, the X-SYNC chainrings have been designed with mud-clearing recesses for the inner chain links and rollers. Engineered in Germany, X-SYNC rings are an integral part of the SRAM 1x drivetrain. Accept no imitation.

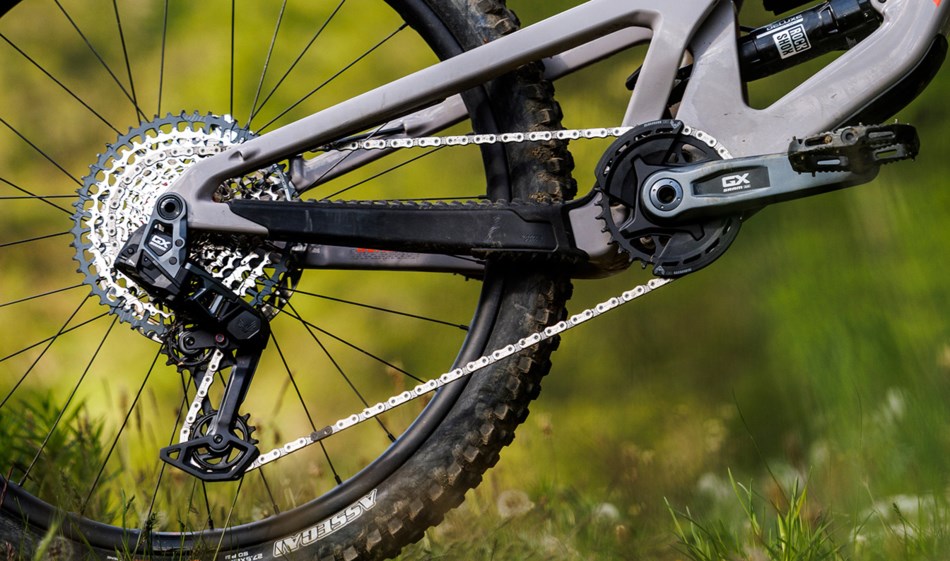

Eagle technology represents our newest 1x drivetrain technology. Eagle is a lighter, simpler, more durable, and easier to use drivetrain. Eagle features all-new 1x components, engineered for even greater durability and performance while maintaining a significant weight advantage over other drivetrain solutions. Eagle technology also provides an expanded gear range of 520%, which is equal to 2x11 drivetrains.
AXS is SRAM’s new bike component integration system that connects electronic bicycle components and software. The SRAM AXS app allows riders to see battery status, change component behavior, personalize controls, get maintenance reminders, and update firmware.
|Cable pull ratio||n/a|
|Speed (RD)||12s T-Type|
|Cage material (RD)||Steel|
|Pulley bearings material||n/a|
|Weight Based On||without Battery|
Installation. Service. Compatibility. Find all the documentation needed to set up, use, and maintain your components in the SRAM Service hub.Visit product service page
