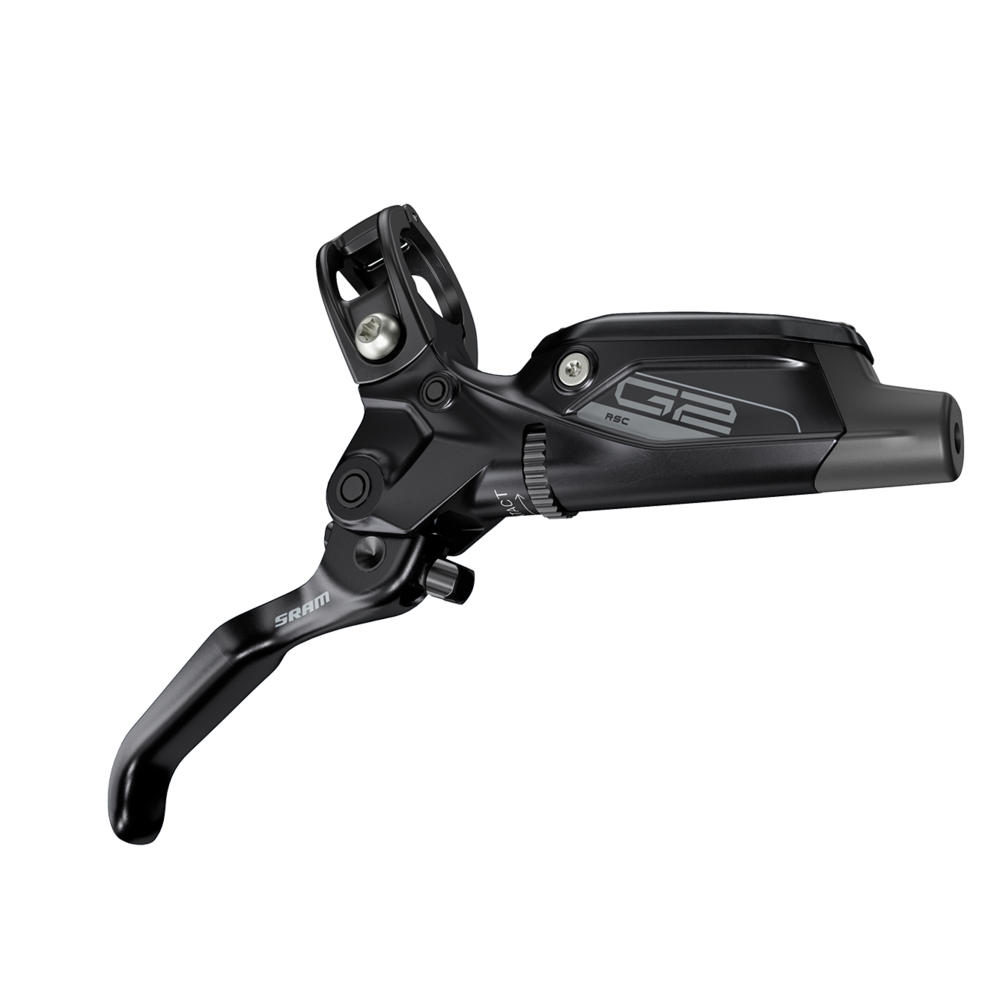

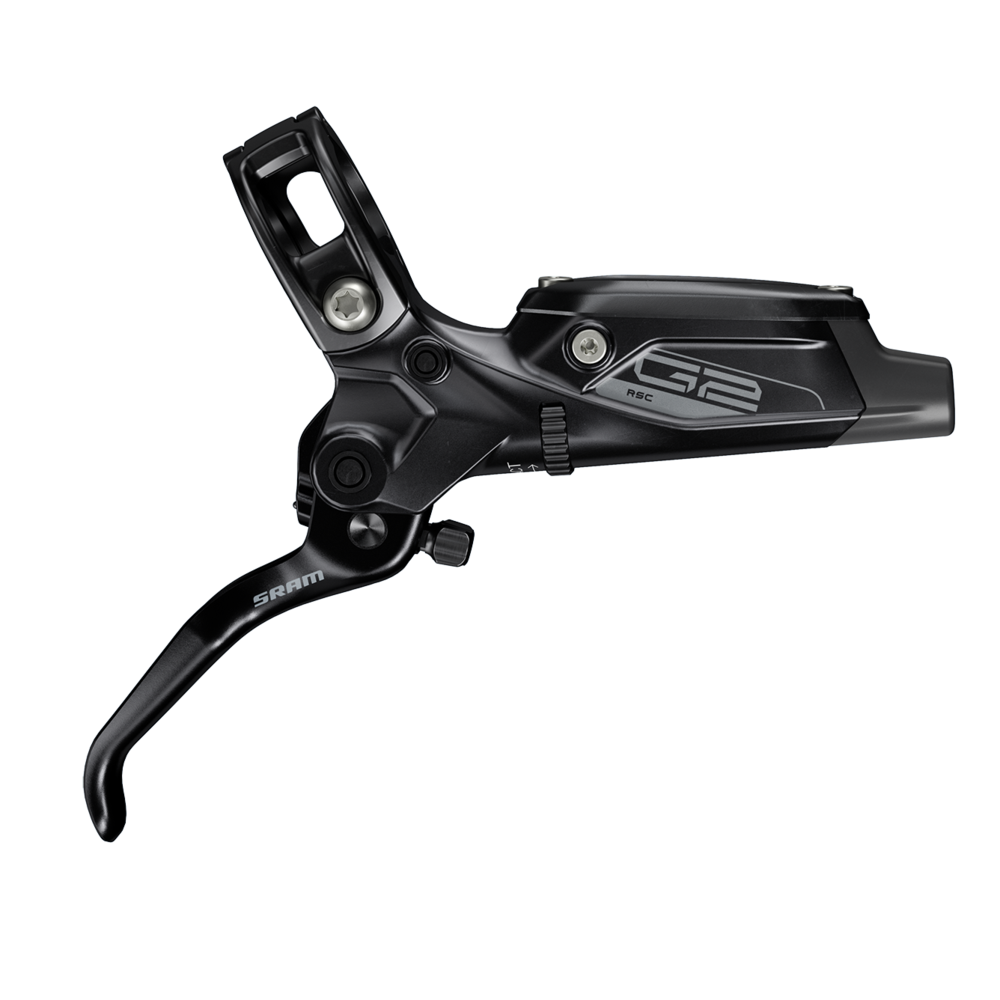

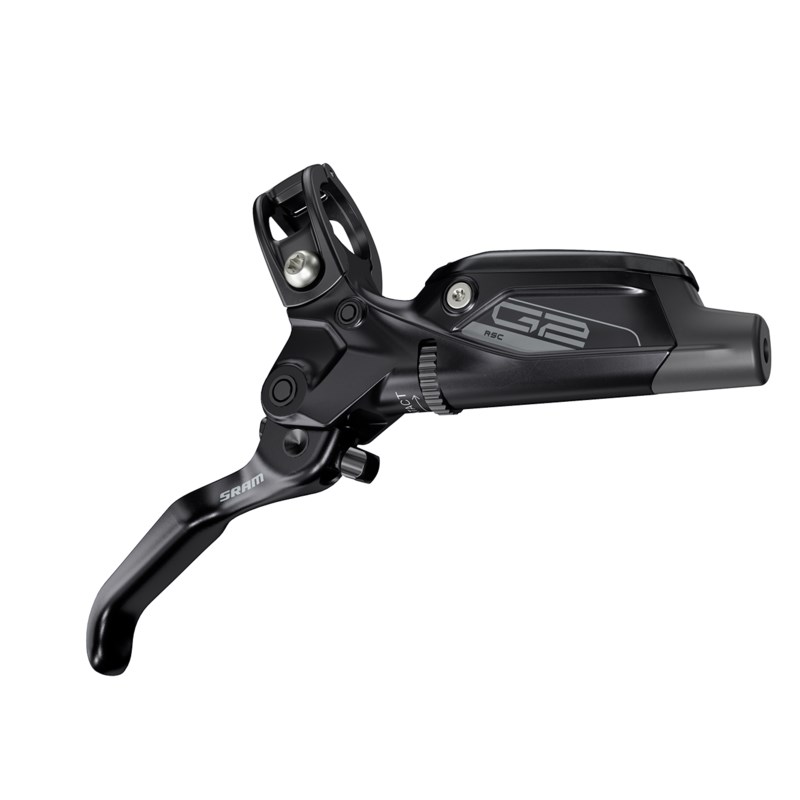

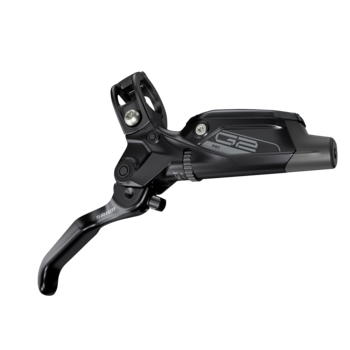

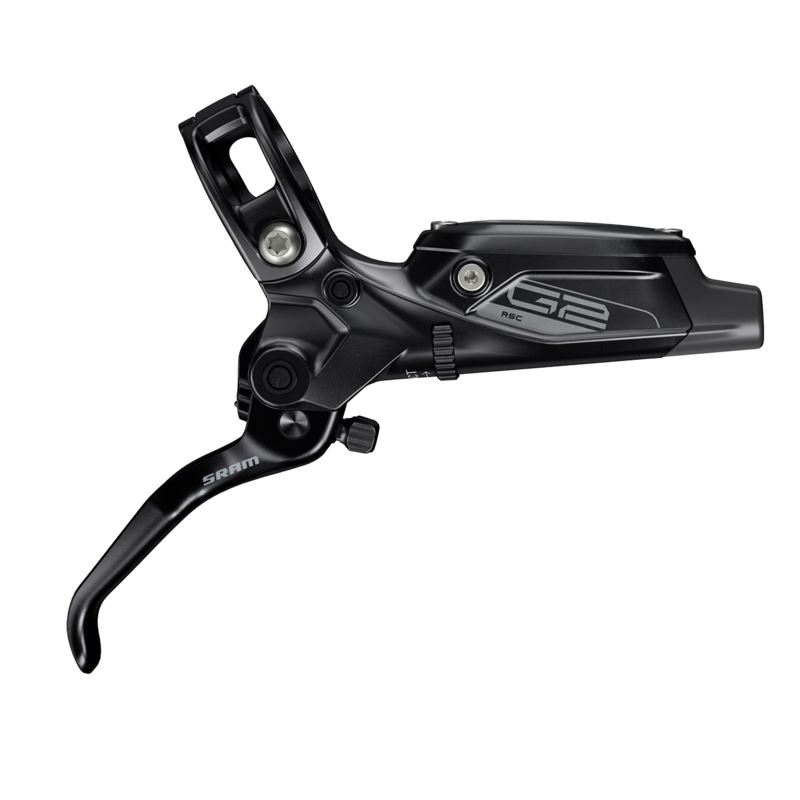

G2 RSC is the half-ton pickup truck of the mountain bike brake world — dependable, go anywhere, do anything, plenty of power when you need it, and all of the features you need. The new G2 RSC is based on the SRAM Code design, so it puts Code-like power and modulation into a mini-Code package. And of course the signature Guide lever-feel and contact-point adjustability ensures that this brake works great for every rider. The G2 RSC presents rider-controlled offering with an alloy blade, lever pivot bushings, stainless steel hardware.
Some people like the instantaneous power of a short lever throw. Others prefer the feel of a longer throw. With Contact Point Adjust, you can pick the position you want your fingers to be in when your brakes are engaged. It’s a quick and easy way to customize the feel of your brakes without having to move the pads. It’s also a way to balance both brake levers to feel exactly the same.
Your fingers pull in a straight line, but brake levers move in an arc. Bottom line: Your fingers typically want to slip off the ends of the levers as you pull. We designed all of our brakes with the industry's lowest X Factor (that's the distance from the center of the handlebar to the center of the lever's pivot). That reduces the lever's inward travel, creating an arc that's closer to your fingers' natural motion and more power is delivered to the brake lever. And, the cool part is, every SRAM and Avid brake lever has it.

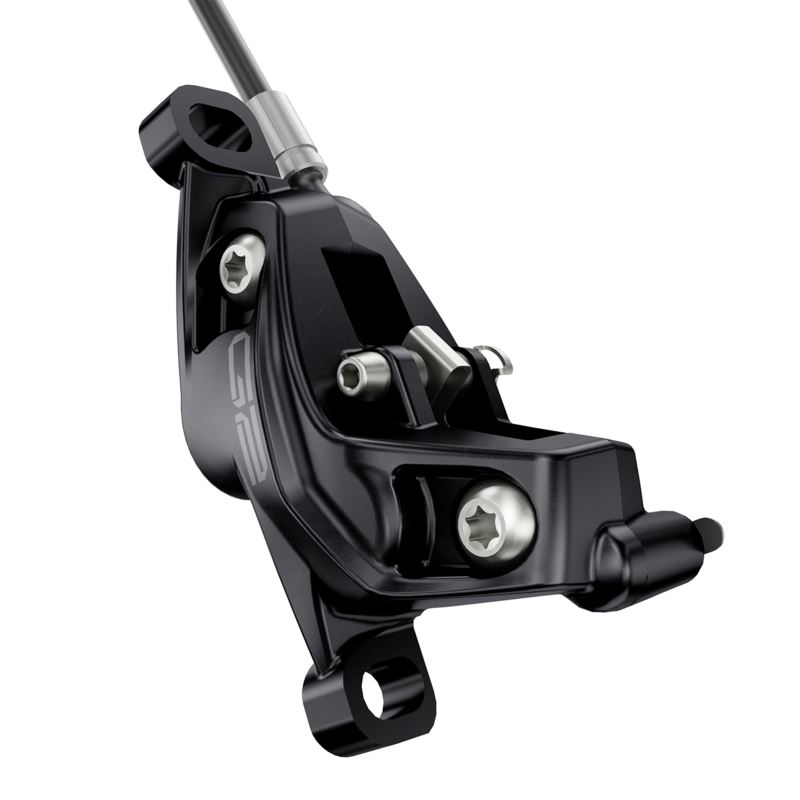

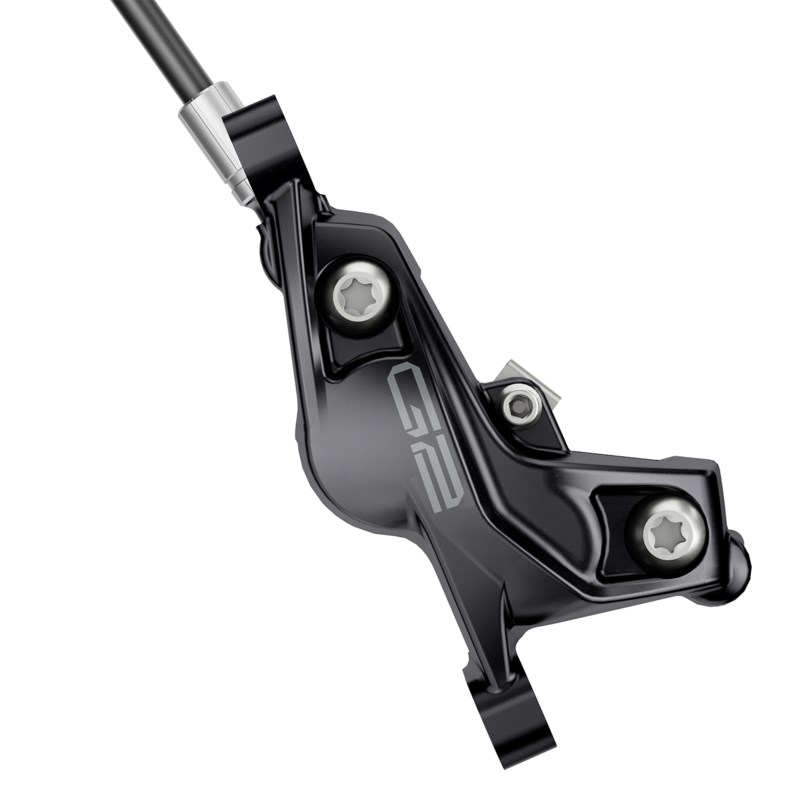

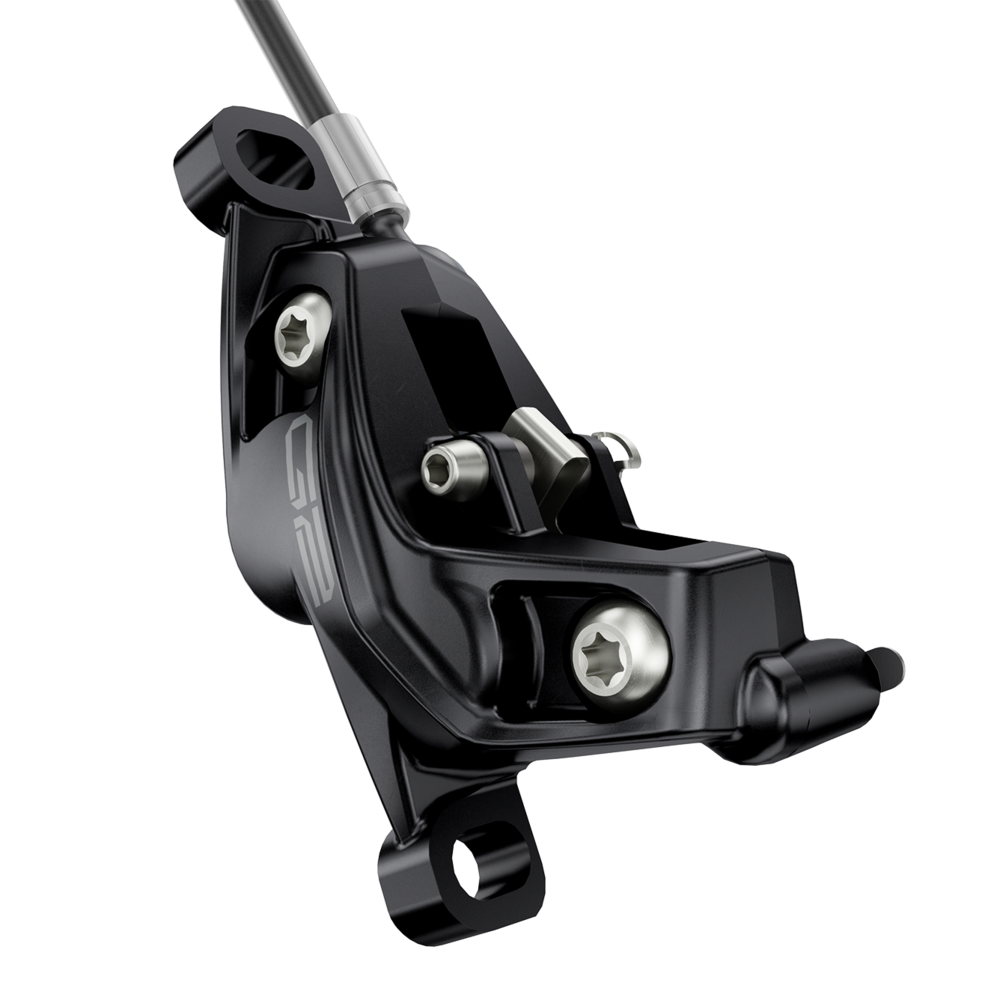

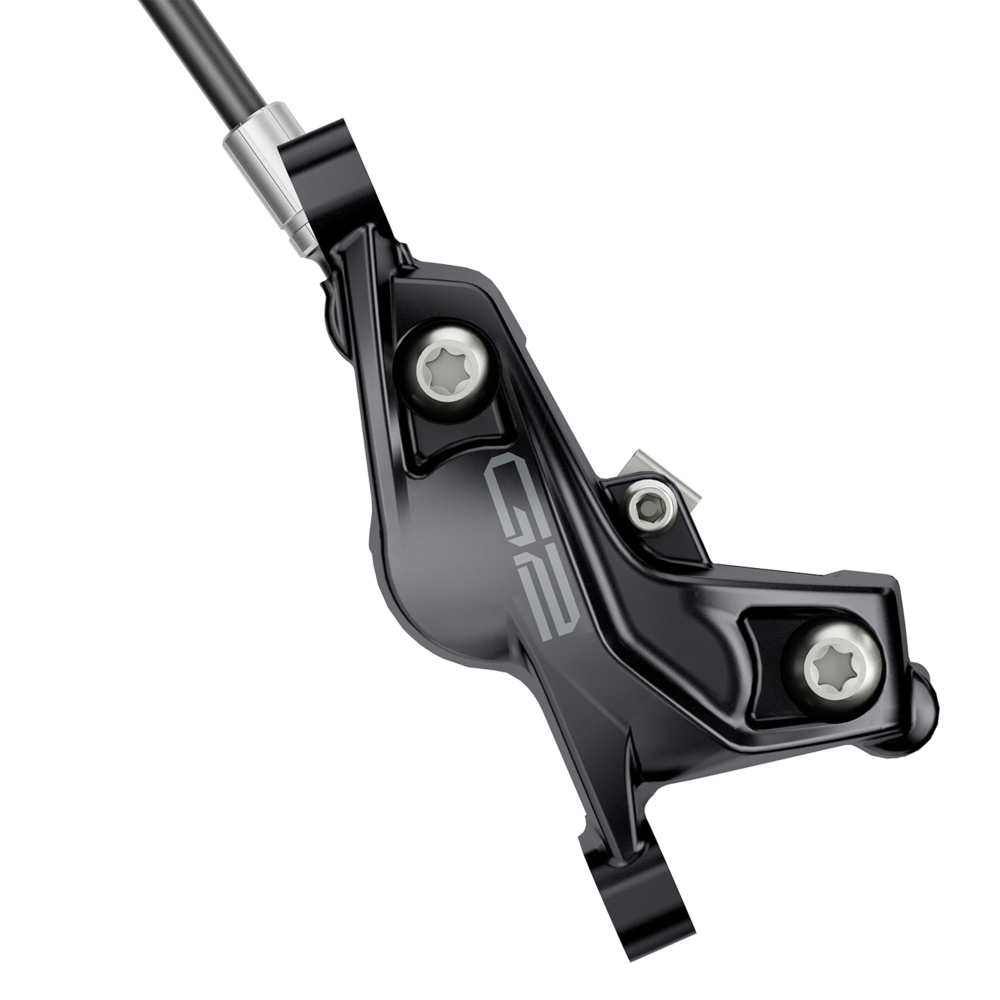

The all new S4 Caliper features four Machined and Moly-coated aluminum pistons for consistent rollback and easy set-up, Heat shield insulation and Bleeding Edge porting and adapter technology for easy bleeds.
Squeeze a SRAM brake lever and you notice it immediately. Less deadband. More positive engagement. A new cam system requires less lever throw to push the pads toward the rotor. That’s great, but there’s more to perfect braking performance than just power. You need control. Many brake systems minimize deadband—but at the cost of modulation. SwingLink solves that with its special cam shape. When the pads contact the rotor, the leverage rate curve is flat and smooth, avoiding that “on/off” brake feel. It’s the perfect balance of power and precision.
A hydraulic brake’s timing port is the connection between the reservoir and the lever cylinder bore. When the lever is squeezed, a cup seal passes this area and closes the port, which pressurizes the system. SRAM’s timing port closure system features durable seals and an ultra-smooth cylinder bore finish producing dependable braking power and consistency.
|Color (DB)||Diffusion Black|
|Blade material||Aluminum - Stamped|
|Pad type (Disc)||Steel-backed organic|
|Bracket (Disc Brake)||Direct mount DIR|
|Hydraulic fluid||DOT 5.1|
|Weight Based On||Direct Mount 800mm Hose, no clamp/mounting hardware|
