READY FOR ANYTHING

To keep you focused on the ride ahead, arm yourself with some essential trailside knowledge for the Eagle Transmission on your Powertain E-MTB.

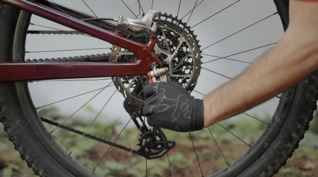

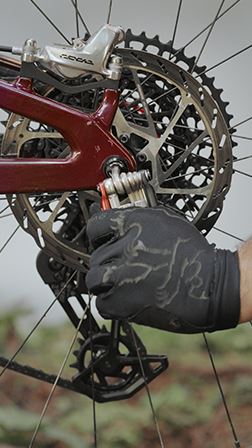

HOW TO: RESET WITH AXLE

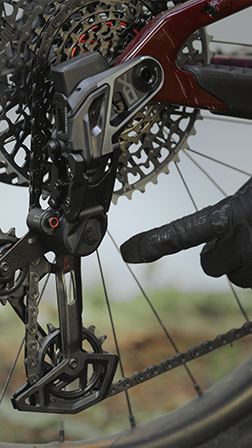

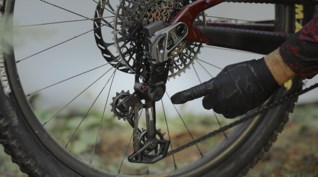

HOW TO: RESET BY HAND

WHEEL REMOVAL & INSTALLATION

Rear wheel removal and installation is still fast and simple, whether you’re swapping a wheel mid-race or preparing your bike for transport.

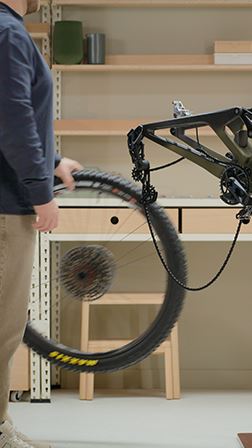

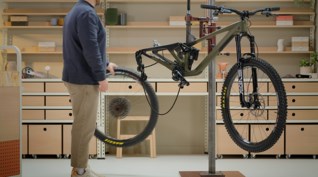

HOW TO: REMOVE YOUR REAR WHEEL

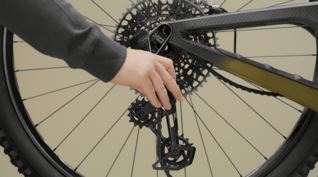

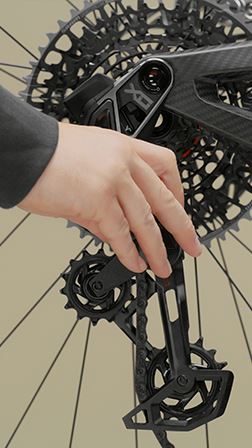

HOW TO: INSTALL YOUR REAR WHEEL

FINE-TUNING

To further optimize shift performance or eliminate unwanted rasping sounds, adjust the rear derailleur trim position using MicroAdjust on the controller or in the AXS App. This feature compensates for the subtle variations that can occur at the hub. Remember, less is more. MicroAdjust one click at a time until performance is optimized.

TECH TIP: If using a bike stand to help MicroAdjust, put your Powertrain E-MTB in Service Mode by short-pressing the Power button on your AXS Bridge Display. This will turn off the motorbut allow for the derailleur to be adjusted and shifted.

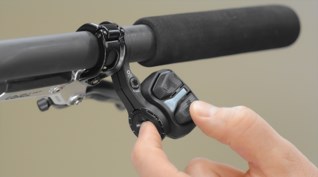

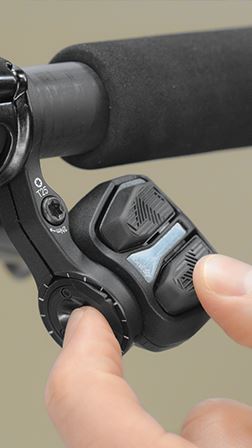

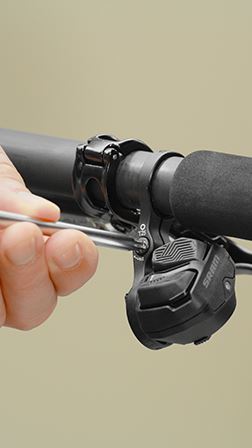

HOW TO: FINE-TUNE USING POD CONTROLLER

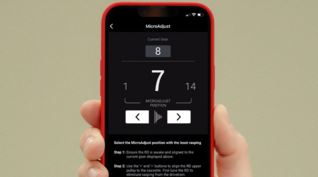

HOW TO: FINE-TUNE USING AXS APP

TRAILSIDE CHECKS

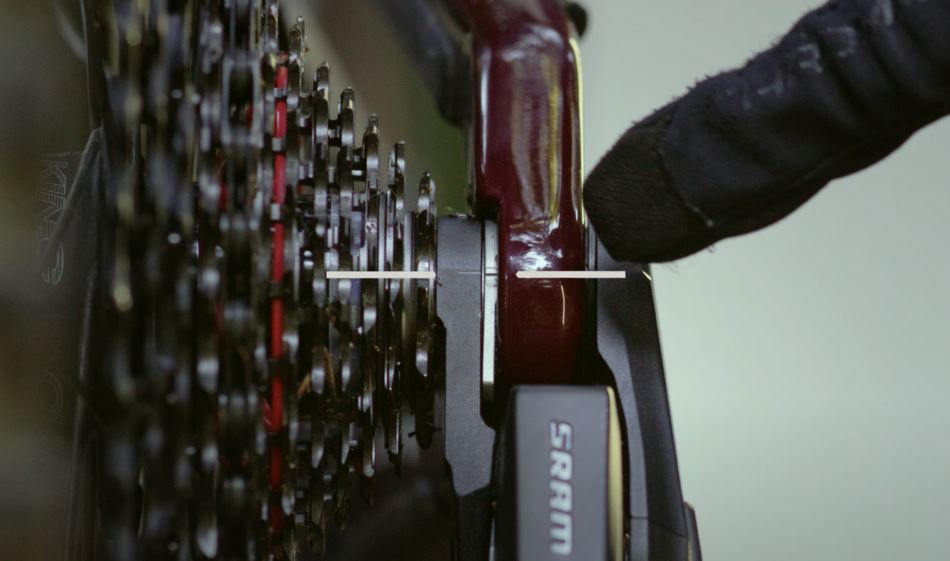

STEP 1: Check whether you need to do a Trailside Impact Reset: verify that the knurled ring mark is aligned with the mark on the full mount. If misaligned, a trailside impact reset is required. See the Trailside Impact Reset section above. If the two marks are aligned, move to the next step.

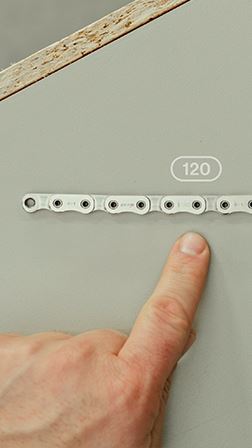

STEP 2: Confirm the required Setup Cog, and Setup Key position for your bike by checking the Chain Length & Setup Key Calculator, or in the SRAM AXS App.

STEP 3: Shift to the required Setup Cog and locate the Key Line (A or B) on the derailleur cage that matches the Setup Key (A or B) position of your derailleur. You will need to verify that the specified Key Line is aligned with the edge of the Setup Key/Cage Mode housing. If the housing is overlapping, or there is a noticeable gap, reperform the derailleur set up process from the Tighten The Components Step.

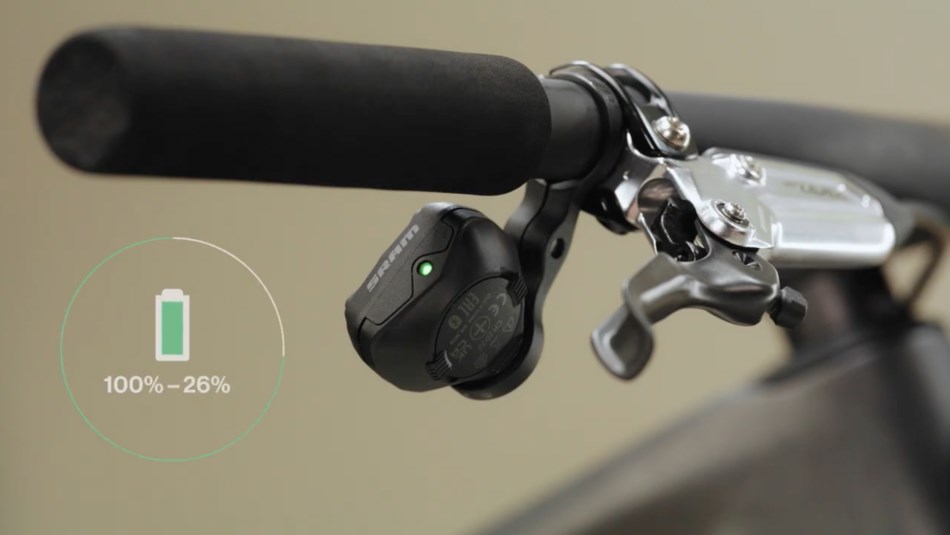

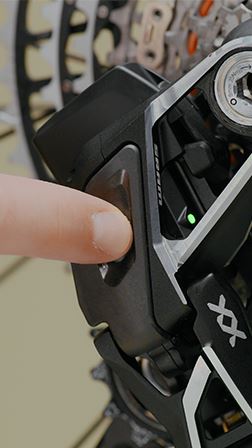

TECH TIP: In case of a dead AXS Pod Controller battery out on the trail, use a quick single or double click of the derailleur’s AXS button to initiate a shift to a suitable gear. Single click for harder, double click for easier.
