EASY MAINTENANCE

With some basic know-how, maintenance is easier than ever. Learn how to rebuild your derailleur, swap chainrings, and more.

Related Image

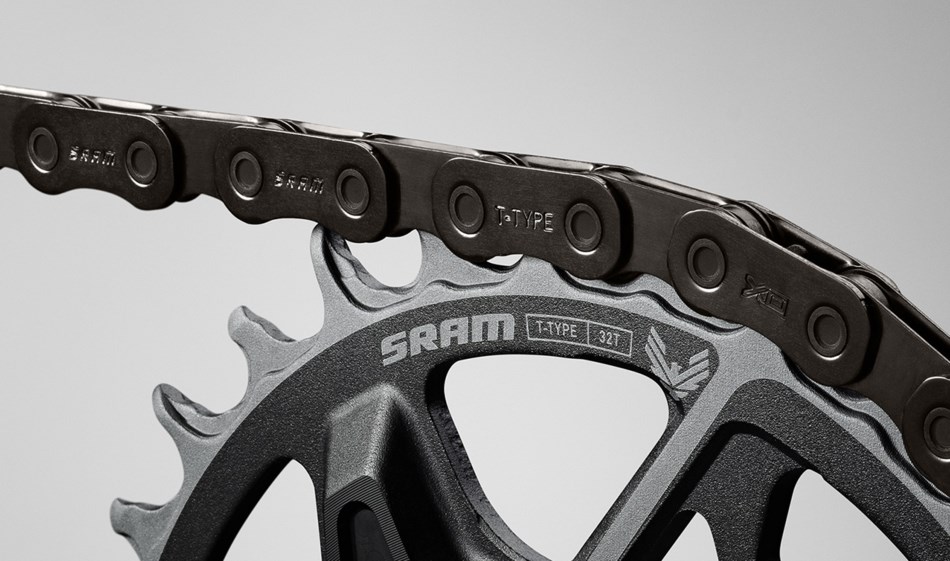

COMPONENT COMPATABILITY

Drawing a clear distinction between Eagle Drivetrains and Eagle Transmissions, parts with the T-Type designation are engineered to work with the Transmission only. The freedom to mix and match Eagle components remains within each system, giving you confidence when it comes to upgrading and replacing.

T-Type Components

Related Image

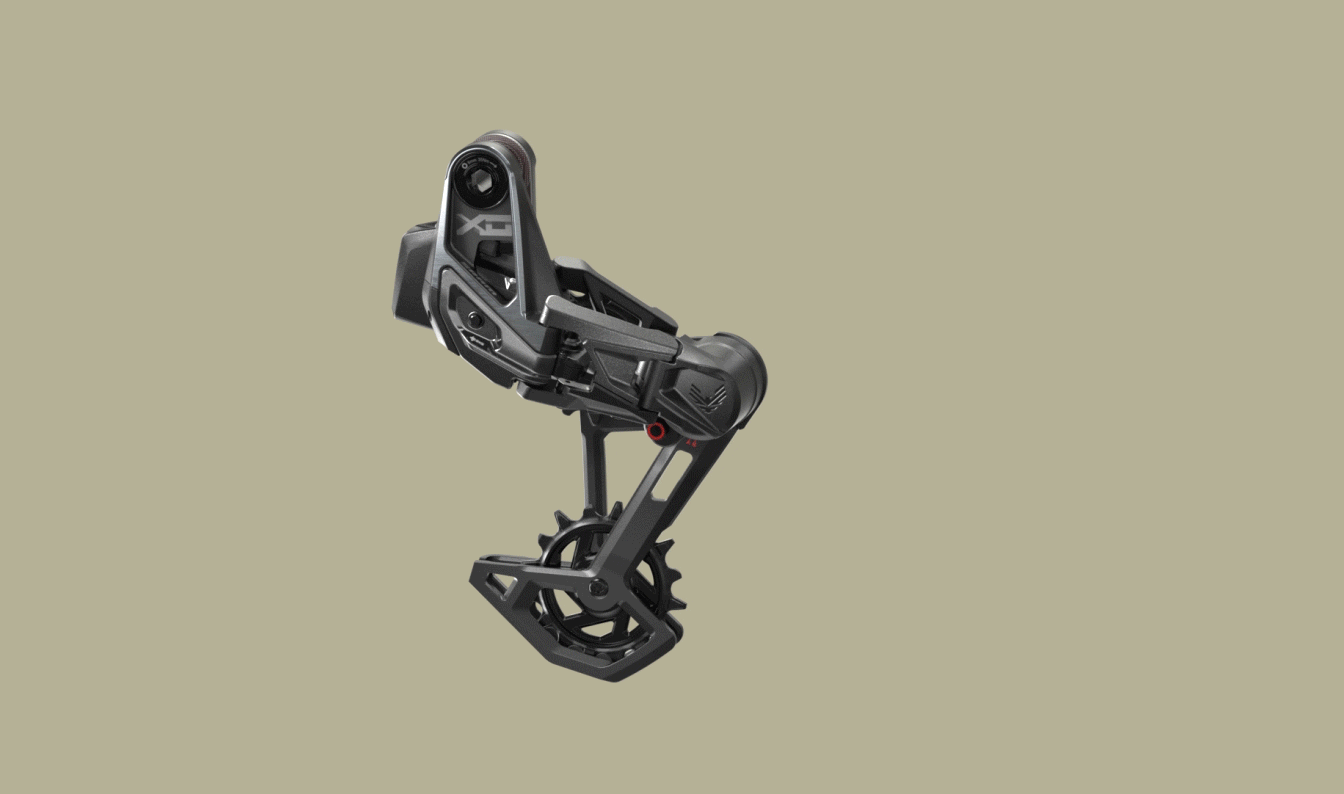

REAR DERAILLEUR SERVICE

Take a crash or slam into an immovable object with your Eagle Transmission derailleur, and there’s a better chance than ever that the only damage will be cosmetic. Which is why we’ve equipped all Eagle Transmission derailleurs with replaceable upper and lower outer links and skid plates. Being able to rebuild your Eagle Transmission derailleur doesn’t stop there. If needed, you can replace the B-Bolt and Knurl ring, Setup Key, pulley wheels, as well as the easily removed Inline Cage and damper assembly.

View Manual

POD CONTROLLER BATTERY REPLACEMENT

The CR2032 battery that powers your Pod Controller should last up to two years. If it needs to be replaced, remove the quarter-turn cover with a coin and replace the battery. No pairing or reset required.

VIEW MANUAL





CHAINRING REPLACEMENT

Replacing an Eagle Transmission chainring is a simple process that may require a few extra steps. If you have swapped to a bigger or smaller chainring, you must consult the Chain Length & Setup Key Calculator that is located here, or in the SRAM AXS App to make sure that your chain is still the correct length. Your derailleur position will also change, so you must reperform the Eagle Transmission set up process.

VIEW MANUAL





FIRMWARE AND APP UPDATES

Updating firmware can improve aspects of your AXS system and add new features. Each AXS component has its own firmware, so check the status of every part in your bike profile to ensure you’re getting the most from your components.

App updates also add important features, like in-app MicroAdjust and Wireless Blip compatibility. Make sure you’re using the latest version of the AXS app.

LEARN HOW

Related Image

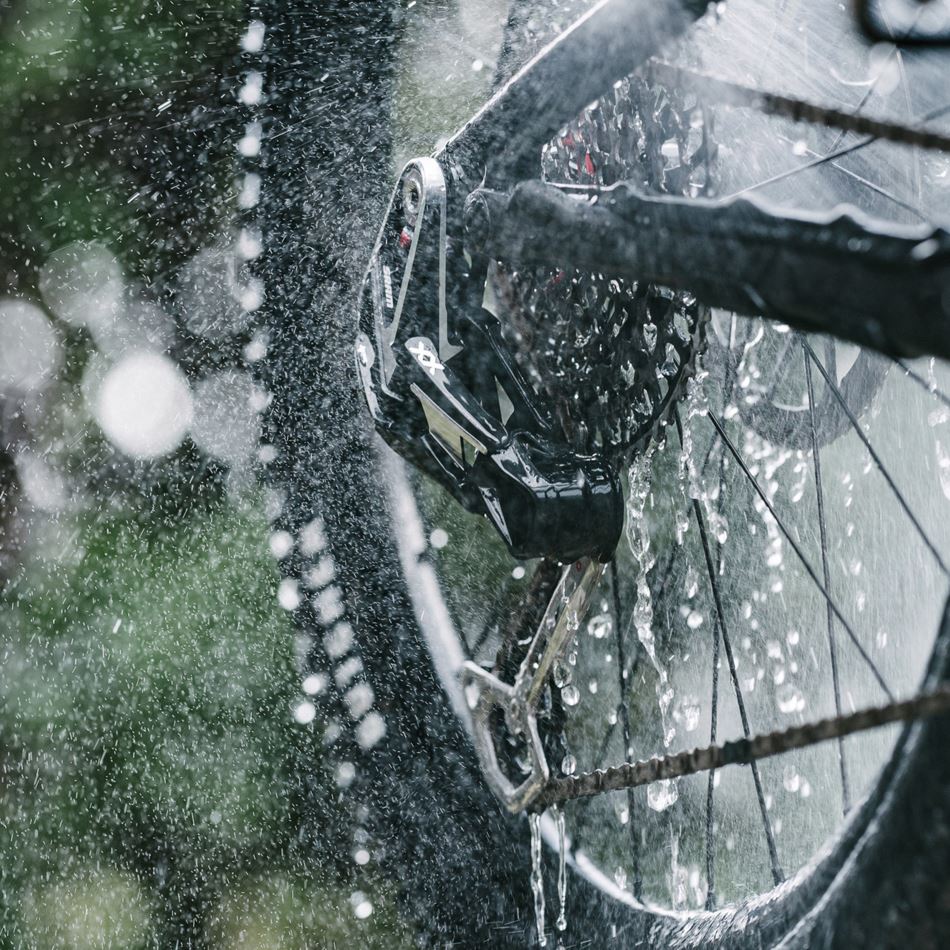

CLEAN IS FAST—AND LASTS

Cleaning will extend your drivetrain’s lifespan while ensuring you get the best performance ride after ride. Your Eagle Transmission’s IP69K rating means it is built to withstand creek crossings, rain, and routine cleaning.

HOW TO CLEAN:
1. Remove the derailleur battery and install the red battery block.
2. Use a damp cloth to wipe off any dirt and debris.
3. Clean the components with soap and water. Harsh degreasers will lead to damaged seals.
4. Avoid direct pressure washing to protect the components as you would with all the seals and bearings on any bike.
5. Rinse thoroughly and allow the parts to dry, then lubricate with your favorite chain lube and wipe away the excess.
