Customize your controls.

Rival eTap AXS controls are designed to maximize comfort for the widest variety of hand sizes while increasing braking confidence. They allow easier reach, greater finger wrap around the levers, and more room for your fingers when braking.

On most handlebars, the ideal transition from the hoods, that allows for the easiest brake lever reach from the drops, occurs when the bottom of the brake lever is level with the bottom of the handlebar. From this starting position, you can tailor the controller position to your liking.

ADJUST YOUR REACH

With a 2.5mm wrench, you can tailor your brake lever position by turning the reach adjust screw underneath the hood. Turn the hex wrench clockwise to bring the brake lever closer to the drops, or counterclockwise to move it away. The shift paddle will automatically adjust with the brake lever.

As you adjust the lever closer to the handlebar, the point at which the brake pads engage the rotor needs to be adjusted using the pad advancement procedure. This will prevent the brake lever from contacting the handlebar or pinching fingers. Follow the pad advance procedure as described in the service manual.

Related Image

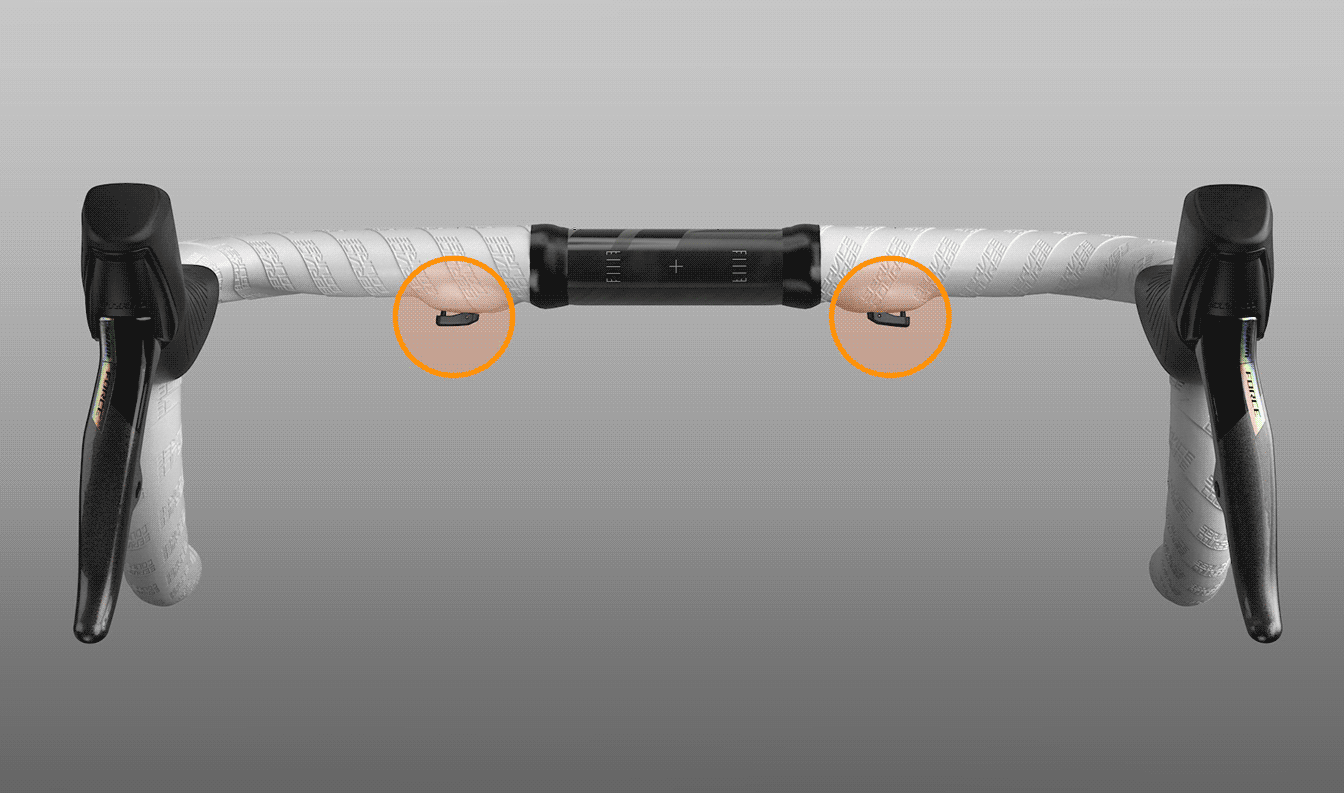

REMOTE SHIFTING WITH WIRELESS BLIPS

With Wireless Blips you can add shift points wherever you want. Shift from your handlebar tops in a comfortable climbing position or from the drops while charging into a headwind. Use up to three sets per bike (six total). They’re perfect for Rival riders who want more shift locations anywhere on their drop bars.

Installing Wireless Blips requires an easy pairing session to ensure your new Blips are computing with the AXS system.

TECH TIP: When wrapping bar tape around the Wireless Blip, cut a notch in a short length of bar tape that is slightly larger than the paddle on the Blip. Then, wrap the notched bar tape around the Blip to secure it to the bar.

VIEW MANUAL

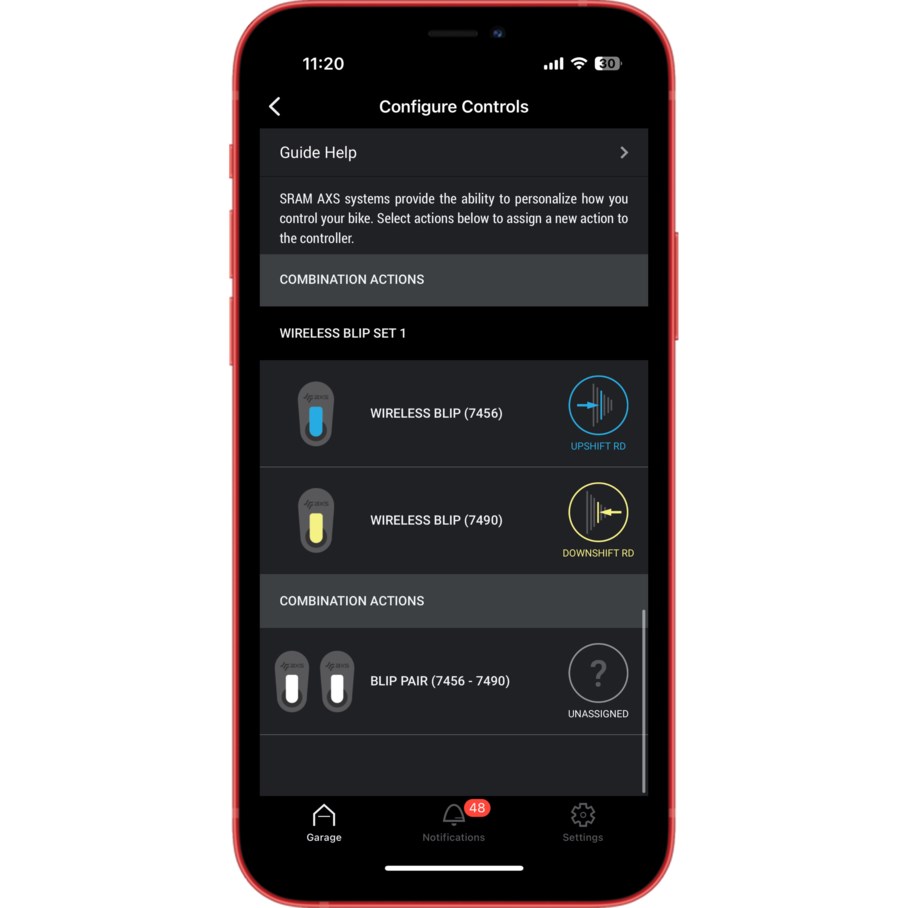

CONFIGURE CONTROLS

Want to personalize your shifting so you can focus on the ride? Open your bike profile in the AXS app and use the Configure Controls menu to reassign shift logic for remote shift buttons or invert controller button functions.

Related Image

UNDERSTANDING AXS DRIVETRAIN SETTINGS

Further personalize your shifting experience with Enhanced Shift Modes, including Sequential and Compensating shift modes.
