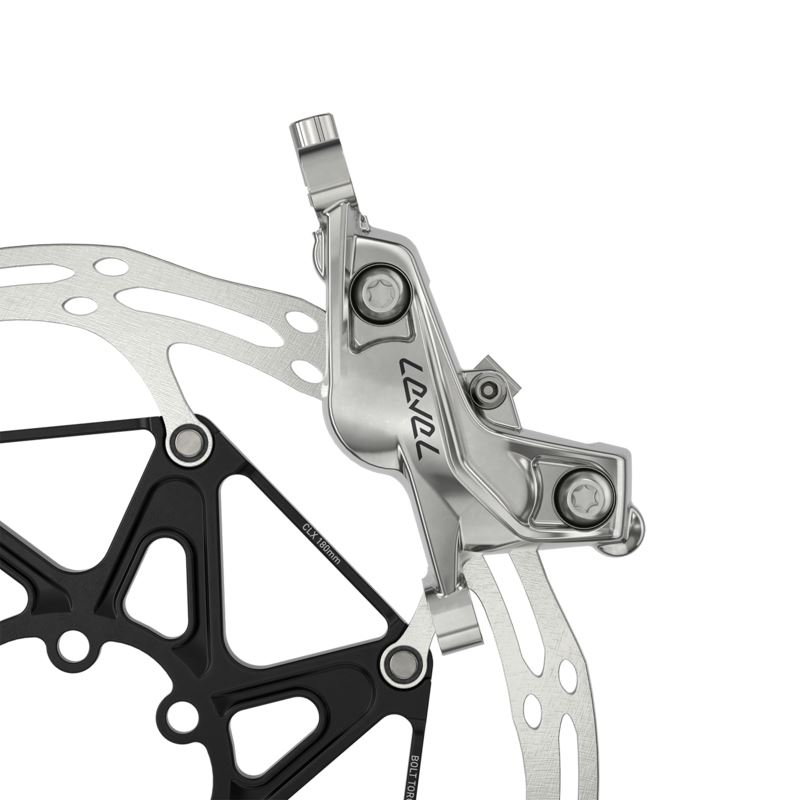

Level Ultimate Stealth 4-Piston combines our new top tier Level Ultimate Stealth lever with a 4-piston caliper to provide superior power to weight performance. Featuring trail ready stopping power in an XC race weight class, Level features a new lever design purpose made to create a clean, fast looking cockpit.
- Stealth body designed to complement our AXS cockpits
- Trail ready power in a modern XC package, for tomorrow’s races
- Tool-free reach adjust for easy customization
With this new caliper fluid circuitry, the bleed port has been moved to the bottom of the caliper, and all four piston bores can communicate. This way, during bleeding fluid naturally fills the caliper, resulting in an easier, more consistent bleed.
SRAM’s DirectLink lever design produces a solid, positive feel the second you squeeze the lever to engage the brake. It offers a no-nonsense solution to give you precise control.
Lever Pivot Bearings
Precision sealed bearings at the lever pivot enhance the clean, crisp lever actuation and consistent, light, one-finger feel.
Timing Port Closure
A hydraulic brake’s timing port is the connection between the reservoir and the lever cylinder bore. When the lever is squeezed, a cup seal passes this area and closes the port, which pressurizes the system. SRAM’s timing port closure system features durable seals and an ultra-smooth cylinder bore finish producing dependable braking power and consistency.
SRAM’s new brake lever design includes a reshaped bladder that helps regulate and reduce air bubbles. The bladder is specifically shaped to evacuate air from the lever and push the fluid exactly where it’s needed. The result is improved back-pressure relief, which produces dependable braking power and consistency.
|Pad type (Disc)
|Bracket (Disc Brake)
|Direct mount DIR
|Weight Based On
|Based on Rear, SJ, DIR, 1800mm, w/ pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts)
