New

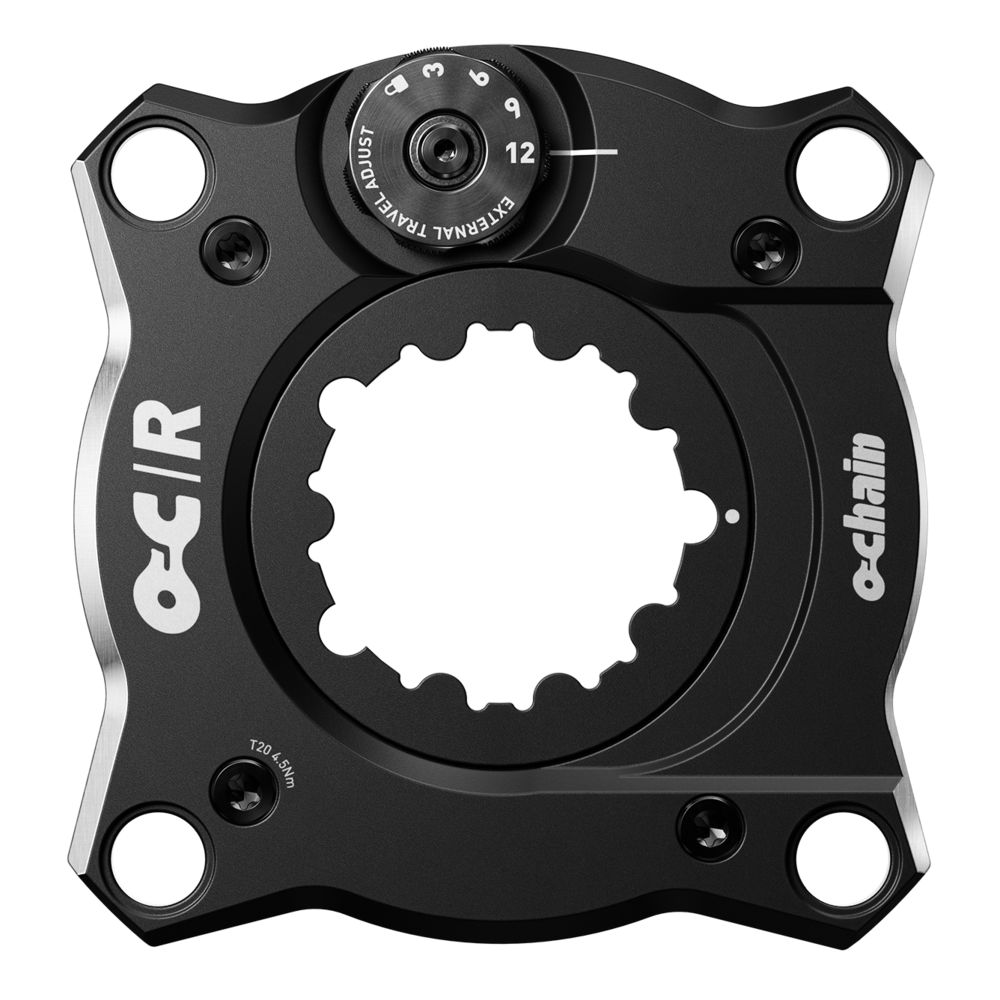

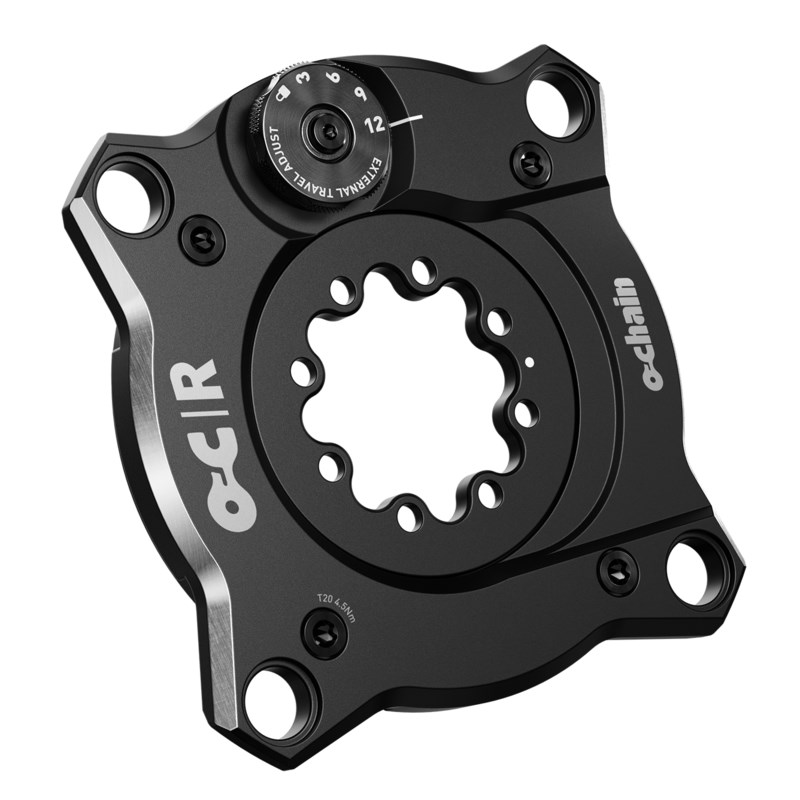

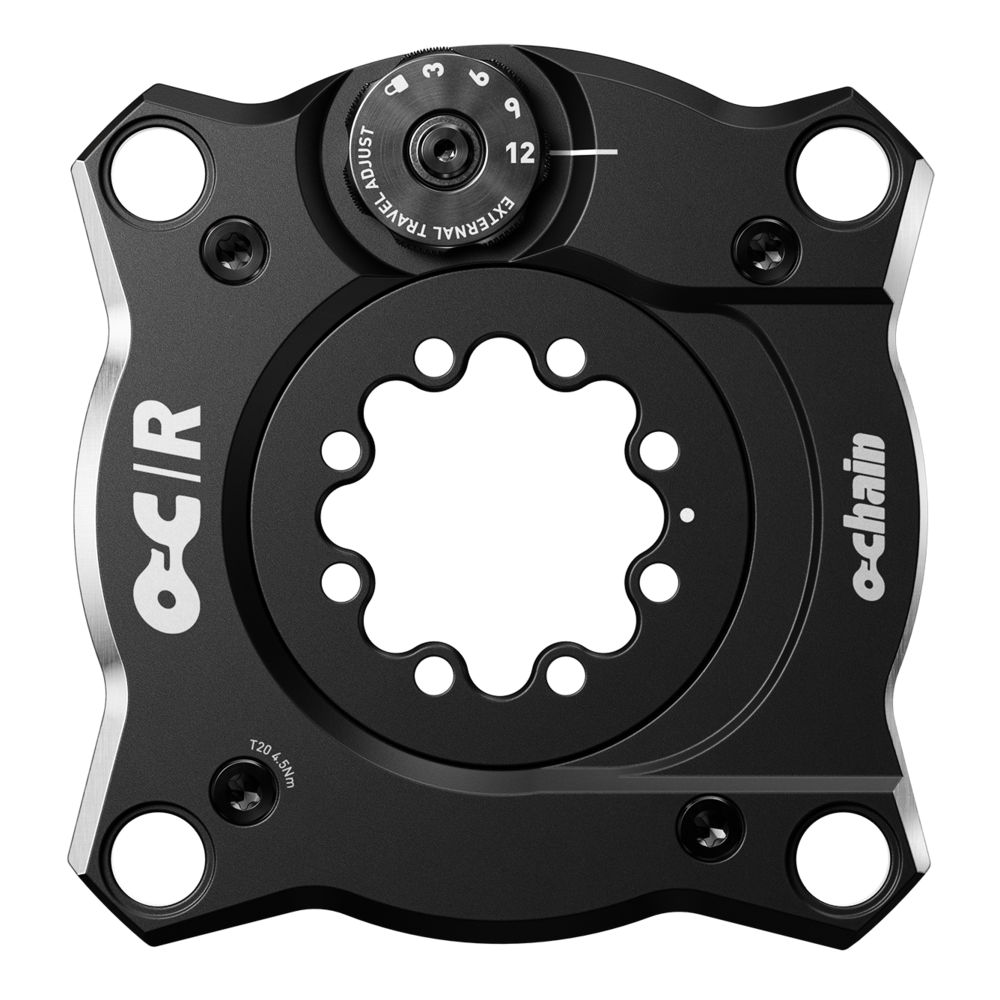

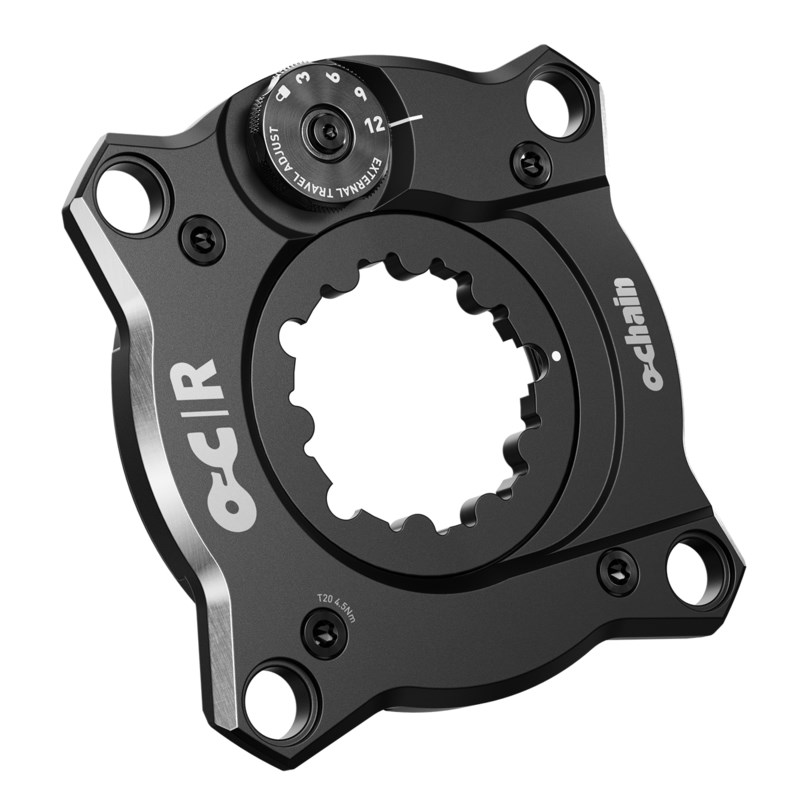

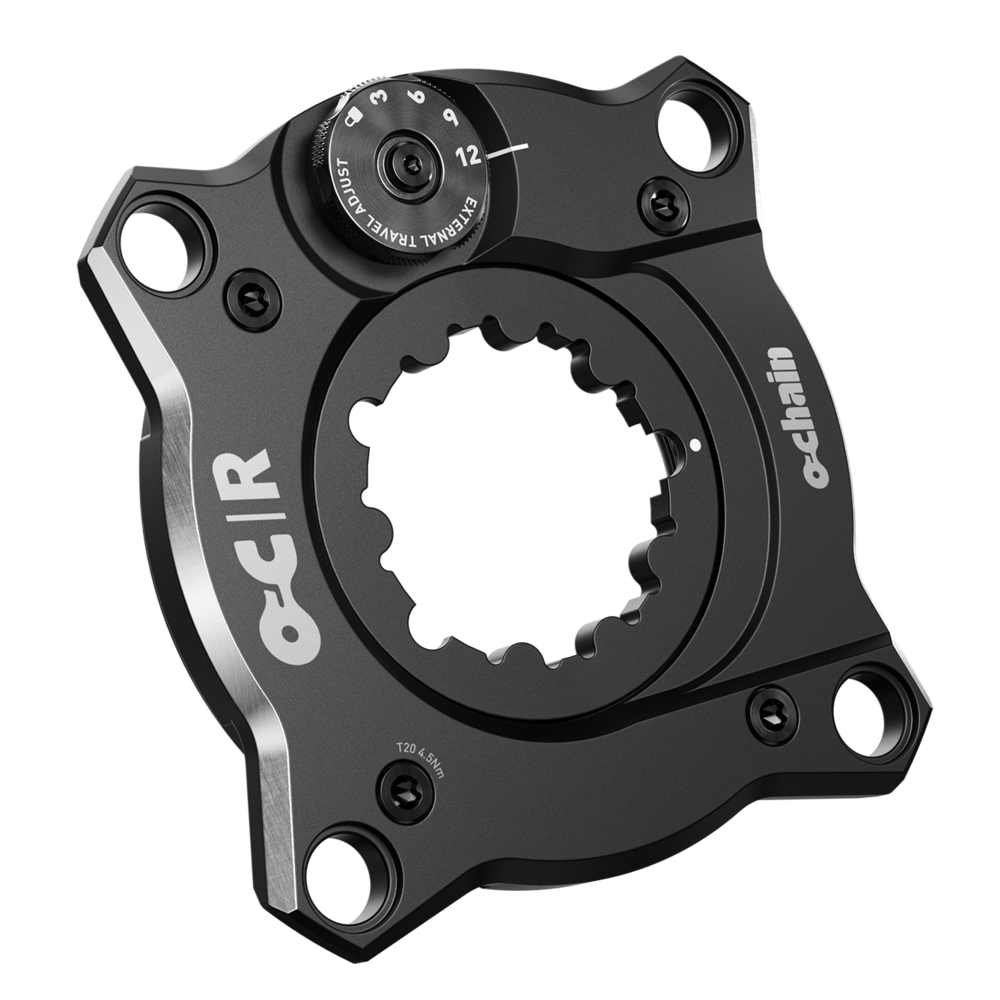

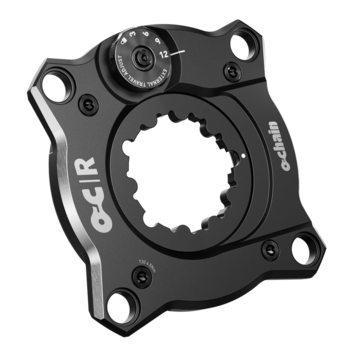

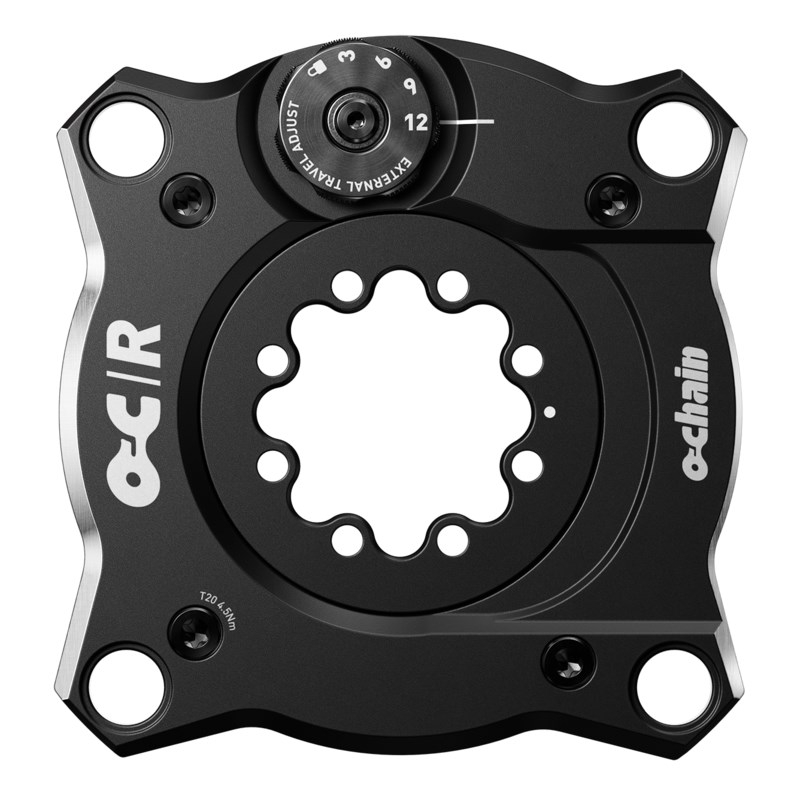

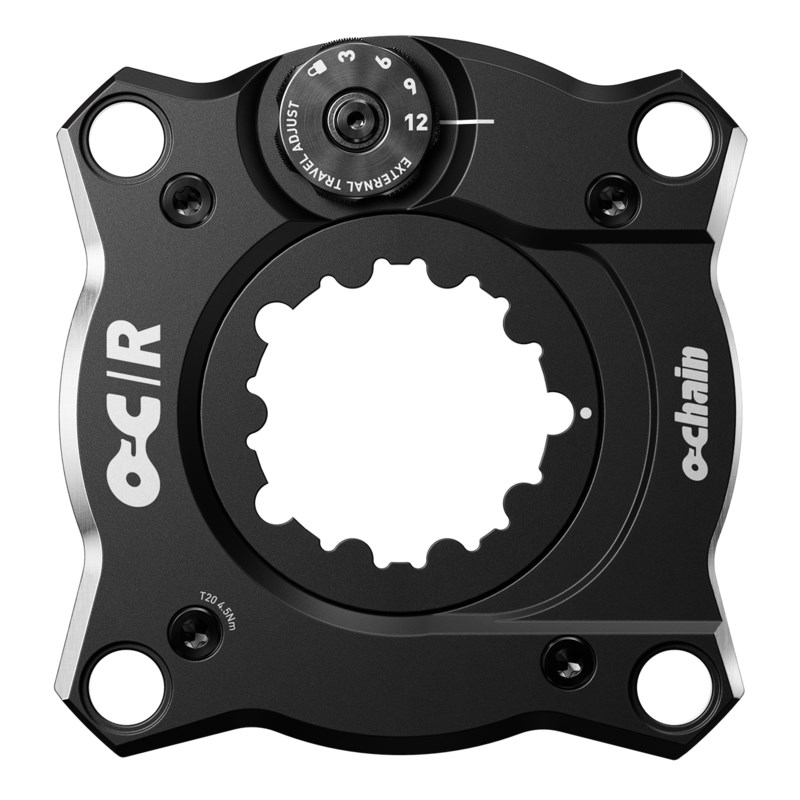

OCHAIN R

$350

{{spec.DisplayName}} - {{spec.Value}}

Ships after .

Currently out of stock until .

Description
Find a Dealer

From full-on downhill to all-day trail, Ochain R brings next-level confidence and control. The next-generation spider design allows the chainring to rotate backward, decoupling the rider from the forces of pedal feedback. The result is a quieter bike with reduced chain turbulence and noise, allowing riders to stay fully focused on the trail ahead. It allows riders to be more confident by unlocking greater stability while braking and cornering, boosting control on rough terrain. The external travel adjust lets riders fine-tune the degrees of travel—choose between Lock 3°, 6°, 9°, or 12° to match terrain, riding style, and bike setup. And because Ochain is mounted on the crankset, those degrees aren’t multiplied by the gear ratio jumps of wide-range cassettes. No surprises, just consistent performance across trail and enduro bikes, where pedaling efficiency is key. The latest generation of Ochain R is the most robust yet, offering re-engineered impact resistance and enhanced sealing for better contamination resistance and longevity

Read More
Read Less
Msrp

$350

Model ID

DS-OCHN-R-B1

Features
  • Includes: Ochain R Spider, spider to crank mounting bolts.
  • Available in SRAM 8-Bolt and SRAM 3-Bolt direct mount chainring standards
  • 104bcd chainring compatibility only (chainring and hardware NOT included)
  • Virtual 3mm offset when paired with SRAM XX 104bcd T-Type Chainring for CL55 compatibility. Additional 3mm spacers and hardware required for CL56.5mm DH compatibility when mounted to a crank with DH83 spindle
  • Ochain R features External Travel Adjust with selectable degrees of travel: Lock, 3º, 6º, 9º, 12º for more bike and terrain types.
  • Re-engineered impact, longevity, and contamination resistance
  • 100hr – Elastomer Replacement Service
  • 200hr – Full Service
See more features
See less features

Specifications

Spider Application Pedal bike
Spider Adjustment External Travel Adjust
Degree 12, 3, 6, 9, lock
Color (Spider) Black
Bolt Circle Diameter (BCD) 104 BCD
Chainring Offset 3mm
Weight (Spider) 165g, 177.2g, 178.9g, 180g

Service

Installation. Service. Compatibility. Find all the documentation needed to set up, use, and maintain your components in the SRAM Service hub.

Visit product service page
