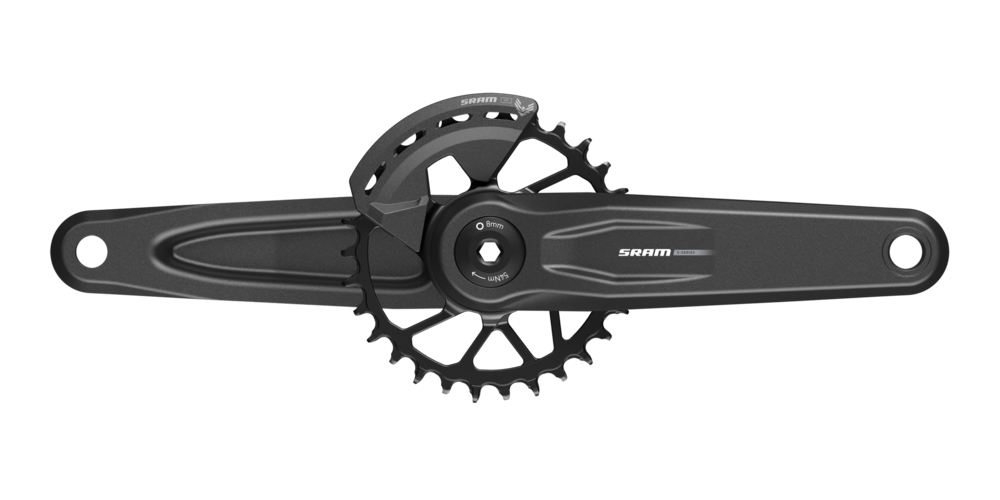

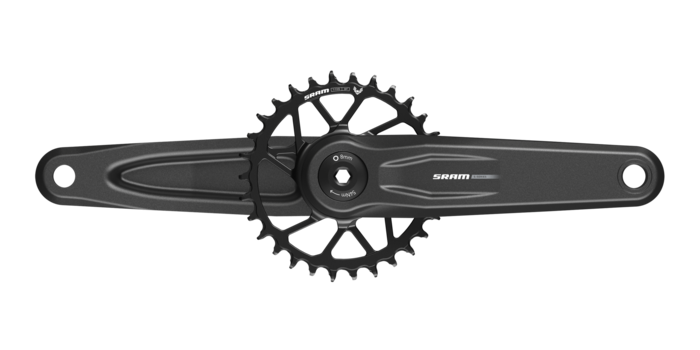

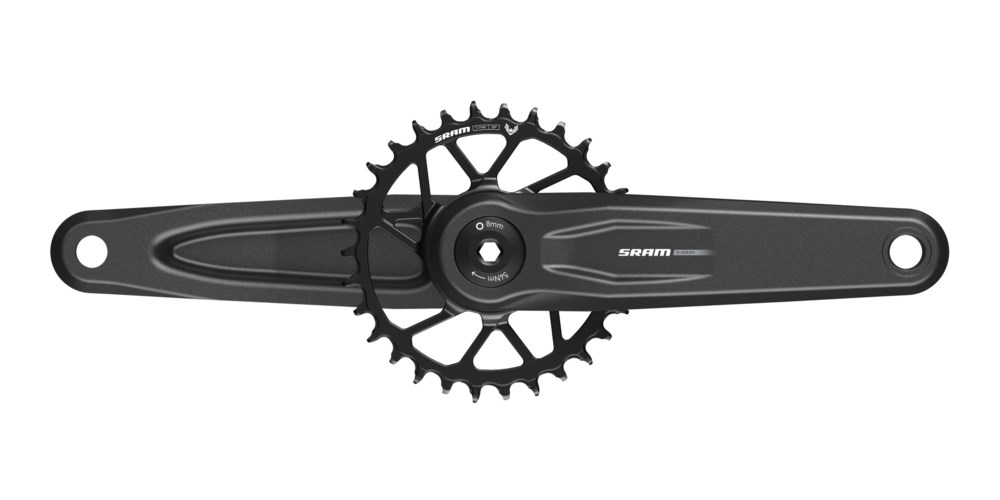

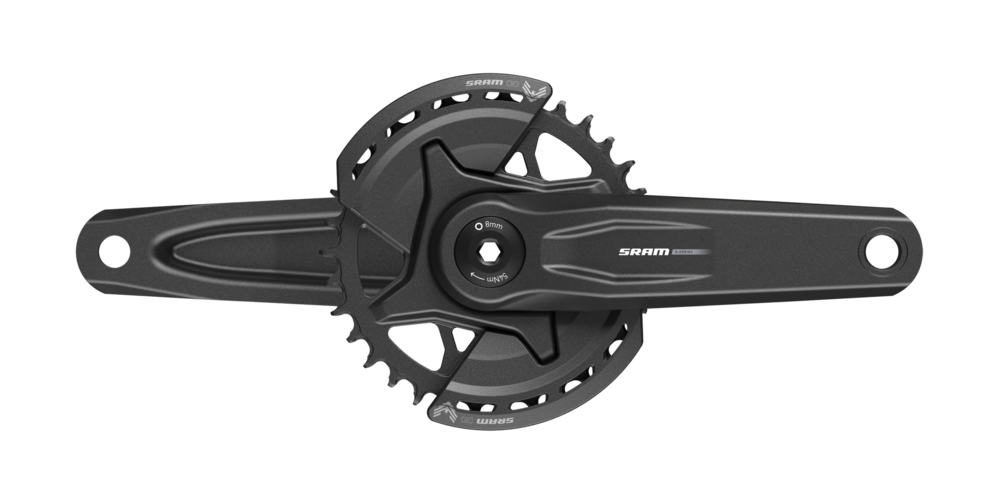

S1000 Eagle Crankset

{{spec.DisplayName}} - {{spec.Value}}

Ships after .

Currently out of stock until .

Find a Dealer

The S-1000 Transmission E-MTB crank is a sleek, sturdy crankarm engineered for robustness and reliability. Like other cranks in the Transmission heirarchy, the S1000 crank features 8 bolt ring compatibility as well as a stamped steel or aluminum ring with optional bash guards for durability and protection on the trail. Cross-compatibility with chainring options and bashguards allows for easy aftermarket customization.

Read More
Read Less
Model ID


  • Forged aluminum crankarm with 8-bolt ring compatibility.
  • Integrated composite bashguards shared with GX and X0 Eagle Transmission.
  • 155mm, 160mm, 165mm, 170mm, 175mm lengths.
  • Stamped steel or aluminum rings.
  • Compatible with all SRAM T-Type components
  • OE availability only.
See more features
See less features

Some variations of this product featured on this page are not available for purchase and are installed on bicycles as complete bikes only. See your dealer for details.


Speeds 12s T-Type
BB Compatibility All SRAM MTB WIDE DUB BBs
Chainring Size 30T, 32T, 34T
Crank arm length 165mm, 170mm, 175mm
Chainline 55.0mm
BB Spindle Interface DUB
Chainring material Aluminum, Steel
Bolt Circle Diameter (BCD) Direct Mount (DM)
Power meter No
Power Meter Type n/a


Installation. Service. Compatibility. Find all the documentation needed to set up, use, and maintain your components in the SRAM Service hub.
